The TM-ZE290 features the "Hook-In" system to further enhance work effciency.
A pull of a lever and the crane hook is stowed automatically. No more manual belaying.
Truck Loader Cranes

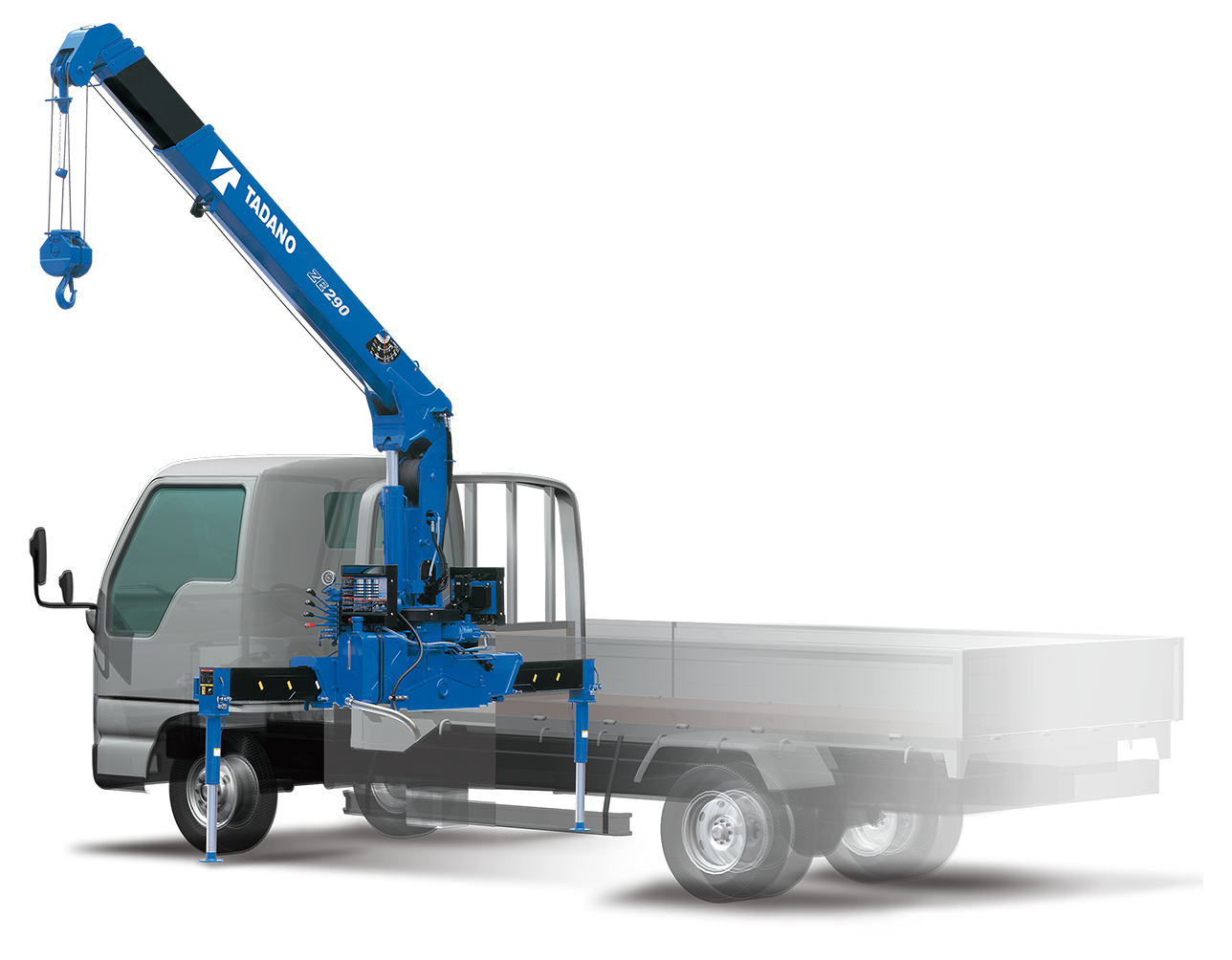

TM-ZE290 series
Truck Loader Cranes
TM-ZE290 series
Brochure
Spec Sheet
Hook in (H type only)
Stronger and lighter boom
Tadano’s unique pentagonal boom is made of high-tensile steel and the section of boom has a structure of bended one piece steel plate for lighter boom weight and powerful lifting capability.
Three-point support system
Tadano's Equalizer Crane Support protects the truck frame from stress. The crane is mounted to the truck chassis with the Equalizer Crane Support that evenly distributes the load to prevent excessive stress concentration at any one point.
Full circle, continuous slewing
The newly designed compact slewing post improves performance providing FULL CIRCLE, continuous rotation for more efficient operations.
AUTOMATIC SLEWING LOCK: The boom is mechanically locked at the slewing post base which prevents boom rotation during traveling.
Hook in
The TM-ZE290 features the "Hook-In" system to further enhance work effciency.
A pull of a lever and the crane hook is stowed automatically. No more manual belaying.
Stronger and lighter boom
Tadano’s unique pentagonal boom is made of high-tensile steel and the section of boom has a structure of bended one piece steel plate for lighter boom weight and powerful lifting capability.
Three-point support system
Tadano's Equalizer Crane Support protects the truck frame from stress. The crane is mounted to the truck chassis with the Equalizer Crane Support that evenly distributes the load to prevent excessive stress concentration at any one point.
Full circle, continuous slewing
The newly designed compact slewing post improves performance providing FULL CIRCLE, continuous rotation for more efficient operations.
AUTOMATIC SLEWING LOCK: The boom is mechanically locked at the slewing post base which prevents boom rotation during traveling.
Crane
| TM-ZE296MH | TM-ZE295MH | TM-ZE294MH | TM-ZE293MH | ||
|---|---|---|---|---|---|
| Crane Capacity | 3,030kg x 1.4m | 3,030kg x 1.4m | 3,030kg x 1.5m | 3,030kg x 1.5m | |
| Section | 6 | 5 | 4 | 3 | |
| Max. Hook Height | 13.8m | 11.8m | 10.0m | 7.8m | |
| Max. Load Radius | 12.60m | 10.60m | 8.70m | 6.40m | |
| Boom Length | 3.23m - 12.80m | 3.13m - 10.80m | 3.17m - 8.90m | 2.85m - 6.60m | |
| Slewing | Continuous 360° | Continuous 360° | Continuous 360° | Continuous 360° | |
| Extension width of outriggers | Max. | 3.4m | 3.4m | 3.4m | 3.4m |
| Mid. | 2.9m / 2.4m | 2.9m / 2.4m | 2.9m / 2.4m | 2.9m / 2.4m | |
| Min. | 1.72m | 1.72m | 1.72m | 1.72m | |
Crane
| TM-ZE296HS | TM-ZE295HS | TM-ZE294HS | TM-ZE293HS | ||
|---|---|---|---|---|---|
| Crane Capacity | 3,000kg x 1.4m | 3,000kg x 1.4m | 3,000kg x 1.5m | 3,000kg x 1.5m | |
| Section | 6 | 5 | 4 | 3 | |
| Max. Hook Height | 13.9m | 12.0m | 10.1m | 7.9m | |
| Max. Load Radius | 12.60m | 10.60m | 8.70m | 6.40m | |
| Boom Length | 3.23m - 12.80m | 3.13m - 10.80m | 3.17m - 8.90m | 2.85m - 6.60m | |
| Slewing | Continuous 360° | Continuous 360° | Continuous 360° | Continuous 360° | |
| Extension width of outriggers | Max. | 3.4m | 3.4m | 3.4m | 3.4m |
| Mid. | 2.9m / 2.4m | 2.9m / 2.4m | 2.9m / 2.4m | 2.9m / 2.4m | |
| Min. | 1.72m | 1.72m | 1.72m | 1.72m | |
