Hook in (H type only)

Hook in (H type only)

The TM-ZE260 features the "Hook-In" system to further enhance work effciency.
A pull of a lever and the crane hook is stowed automatically. No more manual belaying.

Stronger and lighter boom

Stronger and lighter boom

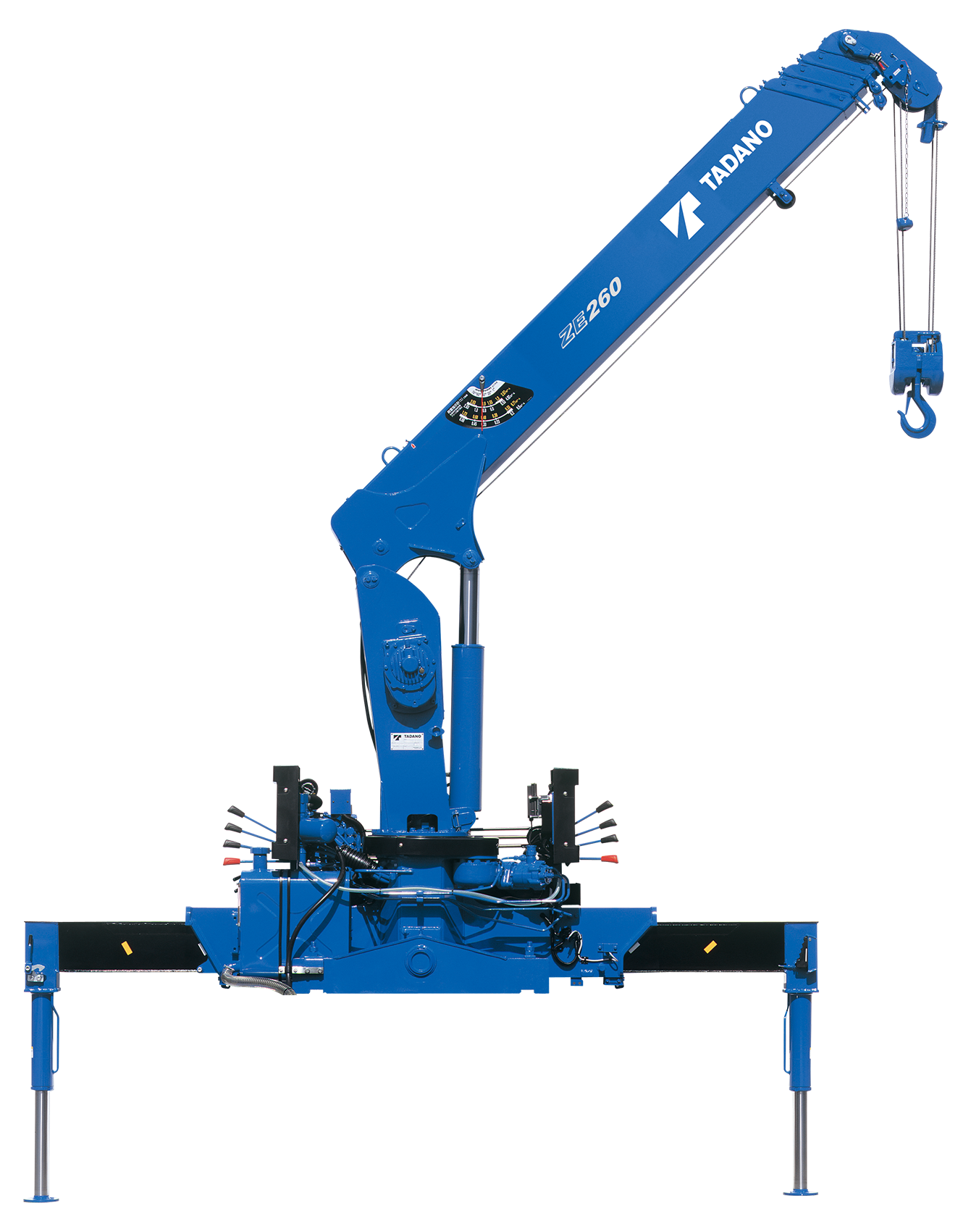

Tadano’s unique pentagonal boom is made of high-tensile steel and the section of boom has a structure of bended one piece steel plate for lighter boom weight and powerful lifting capability.

Three-point support system

Three-point support system

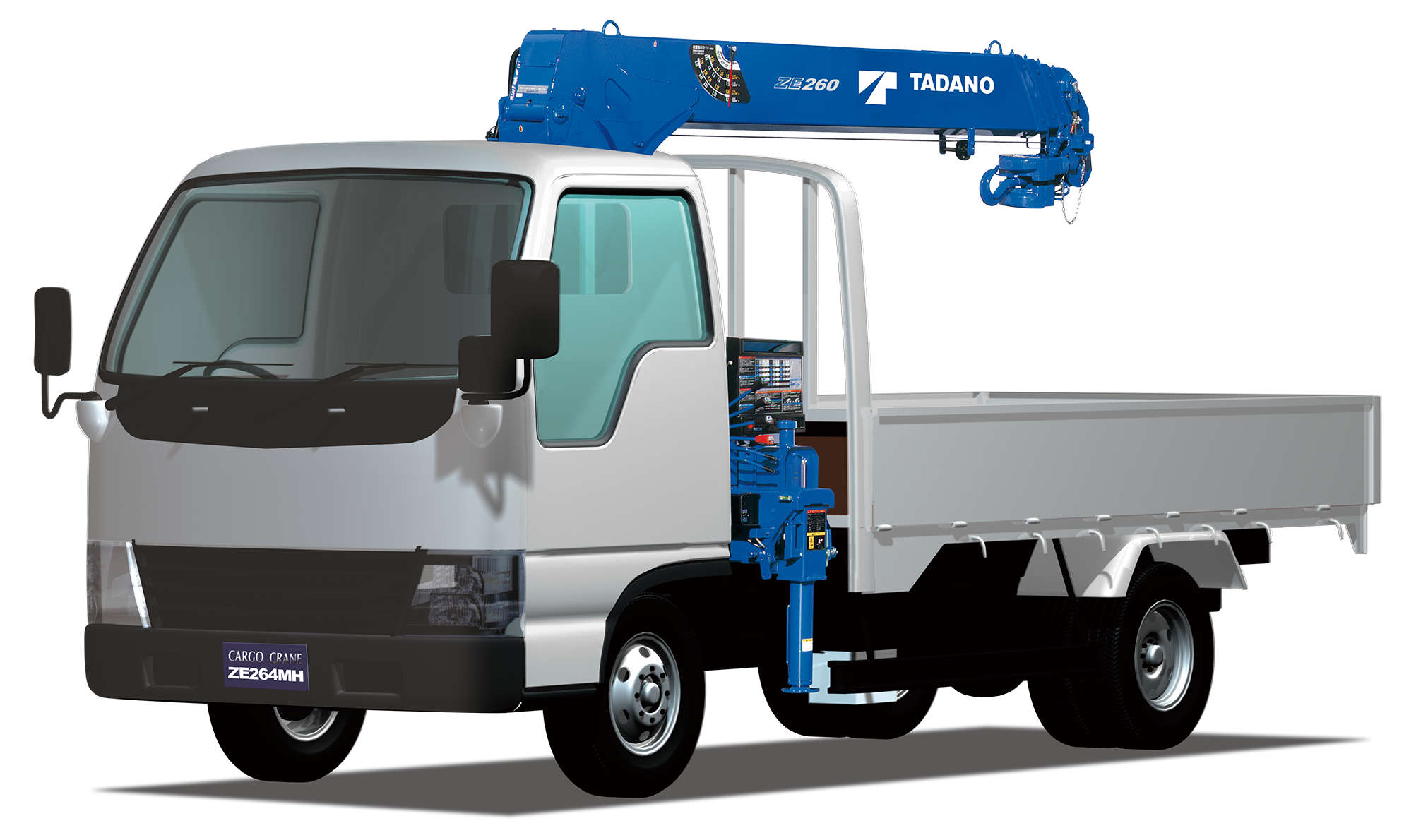

Tadano's Equalizer Crane Support protects the truck frame from stress. The crane is mounted to the truck chassis with the Equalizer Crane Support that evenly distributes the load to prevent excessive stress concentration at any one point.

Full circle, continuous slewing

Full circle, continuous slewing

The newly designed compact slewing post improves performance providing FULL CIRCLE, continuous rotation for more efficient operations.
AUTOMATIC SLEWING LOCK: The boom is mechanically locked at the slewing post base which prevents boom rotation during traveling.

Hook in

Hook in

The TM-ZE260 features the "Hook-In" system to further enhance work effciency.
A pull of a lever and the crane hook is stowed automatically. No more manual belaying.

Stronger and lighter boom

Stronger and lighter boom

Tadano’s unique pentagonal boom is made of high-tensile steel and the section of boom has a structure of bended one piece steel plate for lighter boom weight and powerful lifting capability.

Three-point support system

Three-point support system

Tadano's Equalizer Crane Support protects the truck frame from stress. The crane is mounted to the truck chassis with the Equalizer Crane Support that evenly distributes the load to prevent excessive stress concentration at any one point.

Full circle, continuous slewing

Full circle, continuous slewing

The newly designed compact slewing post improves performance providing FULL CIRCLE, continuous rotation for more efficient operations.
AUTOMATIC SLEWING LOCK: The boom is mechanically locked at the slewing post base which prevents boom rotation during traveling.

Crane

TM-ZE266M/266MH TM-ZE265M/265MH TM-ZE264M/264MH TM-ZE263M/263MH
Crane Capacity 2,630kg x 1.5m 2,630kg x 1.5m 2,630kg x 1.6m 2,630kg x 1.6m
Section 6 5 4 3
Max. Hook Height 13.8m 11.8m 9.7m 7.8m
Max. Load Radius 12.60m 10.60m 8.40m 6.40m
Boom Length 3.23m - 12.80m 3.13m - 10.80m 2.87m - 8.60m 2.85m - 6.60m
Slewing Continuous 360° Continuous 360° Continuous 360° Continuous 360°
Extension width of outriggers Max. 3.0m 3.0m 3.0m 3.0m
Mid. 2.4m 2.4m 2.4m 2.4m
Min. 1.72m 1.72m 1.72m 1.72m

Crane

TM-ZE266HS TM-ZE265HS TM-ZE264HS TM-ZE263HS
Crane Capacity 2,600kg x 1.5m 2,600kg x 1.5m 2,600kg x 1.6m 2,600kg x 1.6m
Section 6 5 4 3
Max. Hook Height 13.9m 12.0m 9.8m 7.9m
Max. Load Radius 12.60m 10.60m 8.40m 6.40m
Boom Length 3.23m - 12.80m 3.13m - 10.80m 2.87m - 8.60m 2.85m - 6.60m
Slewing Continuous 360° Continuous 360° Continuous 360° Continuous 360°
Extension width of outriggers Max. 3.0m 3.0m 3.0m 3.0m
Mid. 2.4m 2.4m 2.4m 2.4m
Min. 1.72m 1.72m 1.72m 1.72m
