Hook in

Hook in

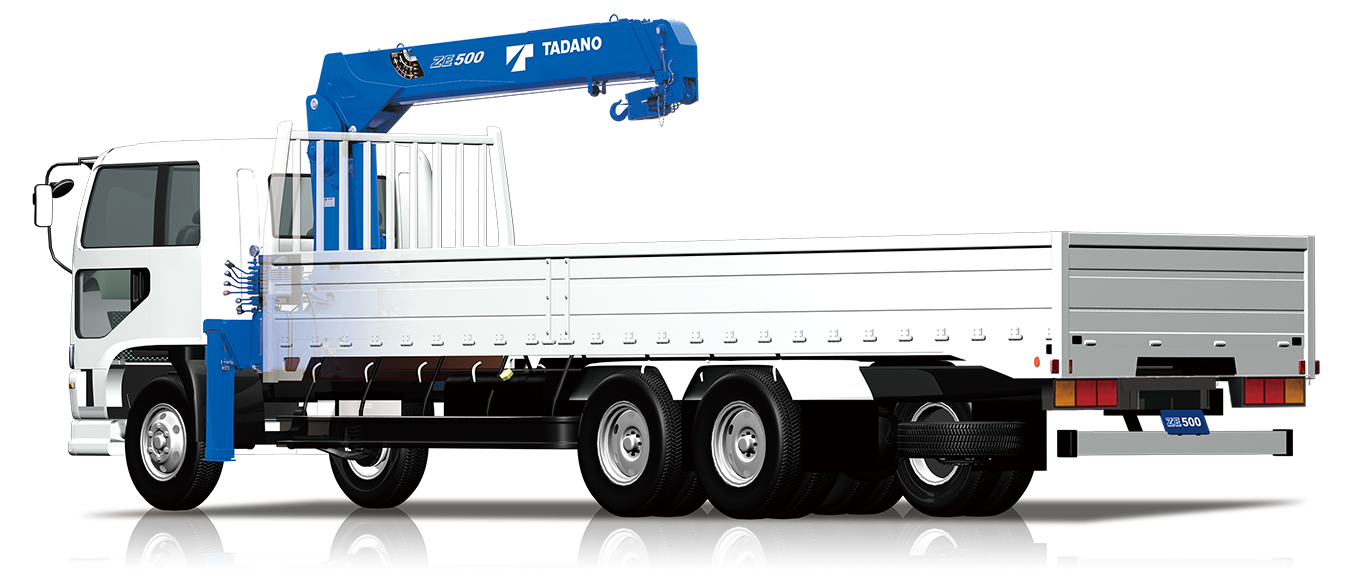

The TM-ZE500GHS features the "Hook-In" system to further enhance work effciency.
A pull of a lever and the crane hook is stowed automatically. No more manual belaying.

Three-point support system

Three-point support system

Tadano's Equalizer Crane Support protects the truck frame from stress. The crane is mounted to the truck chassis with the Equalizer Crane Support that evenly distributes the load to prevent excessive stress concentration at any one point.

Full circle, continuous slewing

Full circle, continuous slewing

The newly designed compact slewing post improves performance providing FULL CIRCLE, continuous rotation for more efficient operations.
AUTOMATIC SLEWING LOCK: The boom is mechanically locked at the slewing post base which prevents boom rotation during traveling.

Crane

TM-ZE505GHS TM-ZE504GHS TM-ZE503GHS
Crane Capacity 4,000kg x 2.8m 4,000kg x 2.9m 4,000kg x 2.95m
Section 5 4 3
Max. Hook Height 15.2m 12.7m 10.3m
Max. Load Radius 13.12m 10.58m 8.09m
Boom Length 3.77m - 13.34m 3.55m - 10.8m 3.47m - 8.31m
Slewing Continuous 360° Continuous 360° Continuous 360°
Extension width of outriggers Max. 3.8m 3.8m 3.8m
Mid. 3.0m 3.0m 3.0m
Min. 2.2m 2.2m 2.2m
