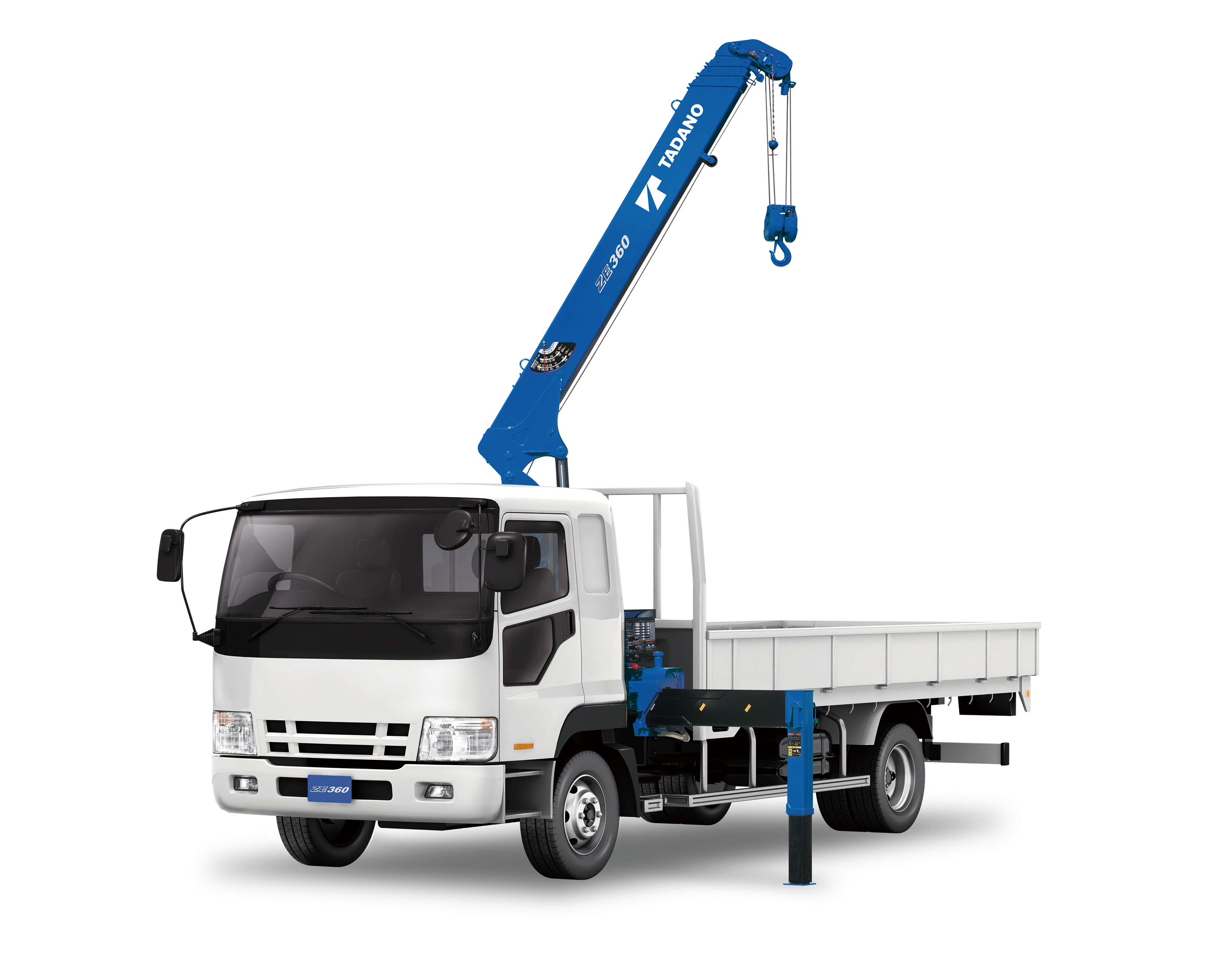

Loader Cranes
TM-ZE360D series
Loader Cranes
TM-ZE360D series
Brochure
- Specification
Crane
| TM-ZE366D/366DH | TM-ZE365D/365DH | TM-ZE364D/364DH | TM-ZE363D/363DH | ||
|---|---|---|---|---|---|
| Crane Capacity | 2,930kg x 2.4m | 2,930kg x 2.4m | 2,930kg x 2.6m | 2,930kg x 2.7m | |
| Section | 6 | 5 | 4 | 3 | |
| Max. Hook Height | 15.9m | 13.7m | 11.4m | 9.2m | |
| Max. Load Radius | 14.40m | 12.10m | 9.80m | 7.50m | |
| Boom Length | 3.65m - 14.60m | 3.52m - 12.30m | 3.34m - 10.00m | 3.28m - 7.71m | |
| Slewing | Continuous 360° | Continuous 360° | Continuous 360° | Continuous 360° | |
| Extension width of outriggers | Max. | 4.2m | 4.2m | 4.2m | 4.2m |
| Mid. | 3.4m / 2.7m | 3.4m / 2.7m | 3.4m / 2.7m | 3.4m / 2.7m | |
| Min. | 2.0m | 2.0m | 2.0m | 2.0m | |
