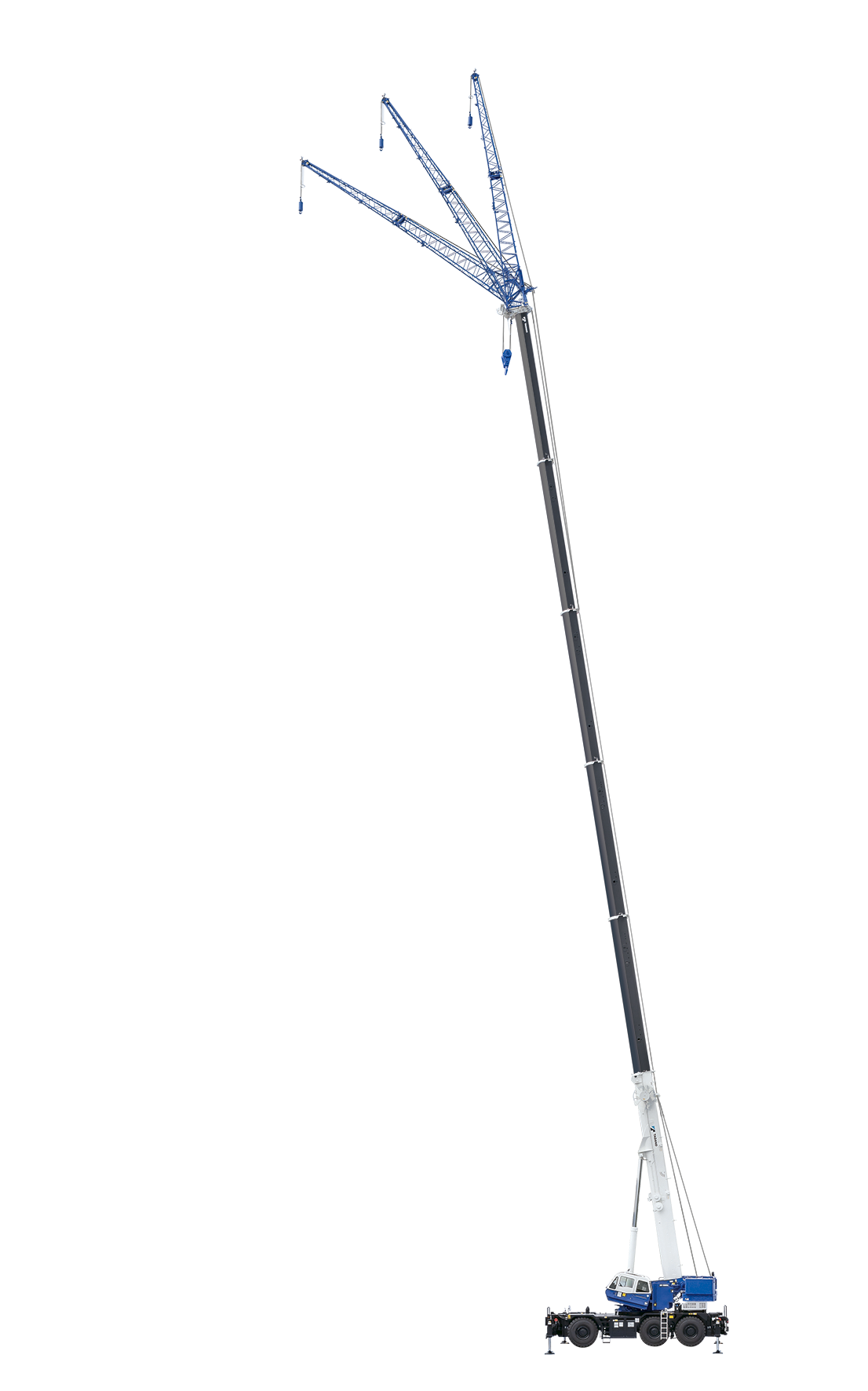

The largest class lifting capacities in rough terrain cranes

The largest class lifting capacities in rough terrain cranes

The 145 metric ton capacity of the GR-1600XL-3 surpass Tadano's current largest capacity of 90.7 metric ton. Features include a 6-section, innovatively designed round boom, which is the longest in its class, as well as a lengthly 61m and max. 61.3m lifting height/56.0m load radius with a single telescopic cylinder.

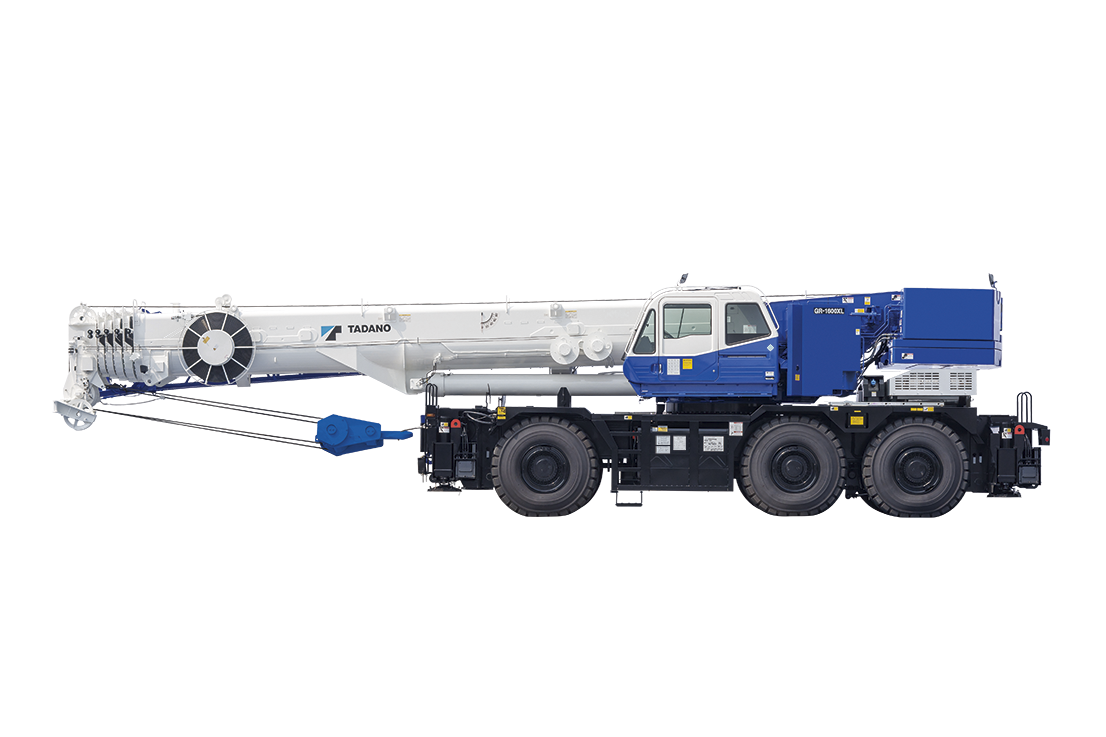

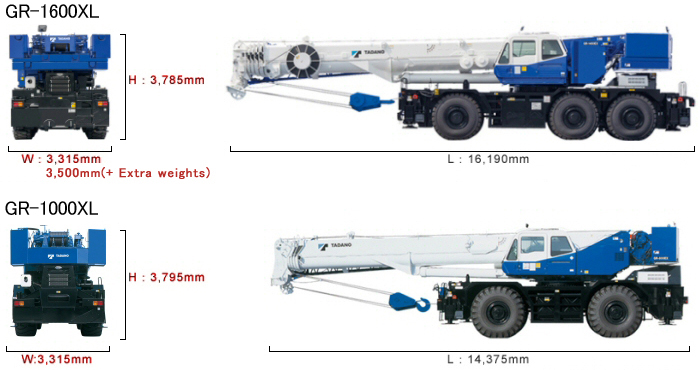

Compact carrier

Compact carrier

The GR-1600XL-3 has a 3-axle, compact carrier similar in width and height to Tadano's GR-1000XL, which offers improved maneuverability and the ability of smaller spaces for transportation.

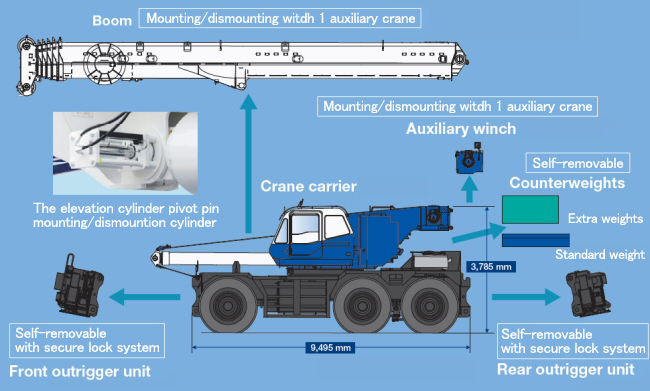

Mounting and dismounting systems

Mounting and dismounting systems

The GR-1600XL-3 has several "mounting and dismounting systems" for traveling and transportation.

Load moment indicator (AML-C)

Load moment indicator (AML-C)

Tadano’s AML-C is easy to use. It allows the operator to simultaneously monitor: boom angle, boom length, operating pressure of elevating cylinder, the extended width of the outriggers, slewing position, rated lifting capacity and present hook weight. All of this enables the AML-C to move easily through lifting capacity changes without changing configurations and codes to make a lift.

Control of asymmetric extension width of outriggers

Control of asymmetric extension width of outriggers

When operating the crane with the asymmetric outriggers extended, the AML-C automatically detects the extension width of outriggers at the front and rear, and to the left and right of the crane to offer maximum work value through each area.
When slewing the boom from the longer outrigger area to the shorter outrigger area, the AML-C automatically detects the motion and displays the maximum capacity depending on each extension width of the outriggers, and brings the motion to a slow stop before it reaches the limits of the allowed capacity.
Therefore, even if the operator operates the crane without being aware of a change in the capacity, the AML-C monitors it continuously to ensure safe operation.

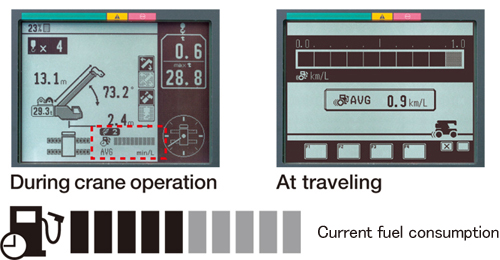

Fuel monitoring

Fuel monitoring

The system constantly monitors and displays on the AML screen information on fuel consuming conditions. Checking the indicator enables you to prevent wasteful acceleration and wasteful standby.

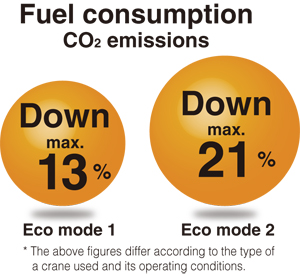

Eco mode

Fuel Consumption Co2 Emissions

The system controls the maximum engine speed during crane operation. In addition, due to curbing an unnecessary rise in the engine speed that occurs when accelerated to excess, the system enables CO2 emissions and fuel consumption to decrease by max. 13% with the Eco mode 1 employed, and max. 21% when the Eco mode 2 is applied. In addition, it realizes a low level of noise.

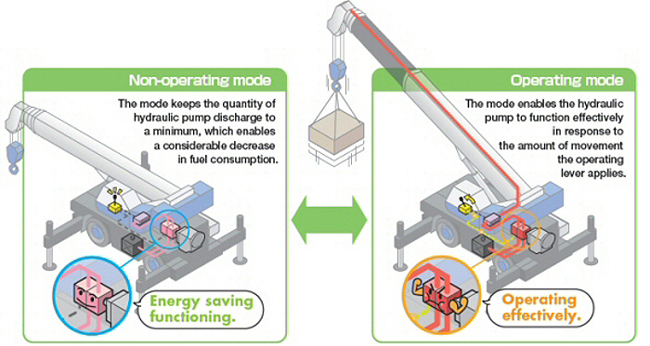

Positive control

Positive control

The system effectively controls the quantity of hydraulic pump discharge at the time of crane operation in response to the amount of movement applied by the operating lever. Additionally, it keeps the quantity of hydraulic pump discharge to a minimum, reducing CO2 emissions and fuel consumption by up to 20%.

Hello-Net

Hello-Net

Hello-Net is a standard feature used to support our customers’ efficient crane operations straight from your computer or mobile device. The customer can monitor their crane activity, work history, machine position data, and maintenance information. Tadano offers advanced customer support with the Hello-Net system.

Crane

Crane Capacity Boom 145t x 2.5m
Max. Lifting Height Boom 78.3m
Boom+Jib 92.0m
Max. Load Radius Boom 56.0m
Boom+Jib 70.5m
Boom Length 13.1m - 61.0m
Jib Length 10.3m / 18.0m
Extension width of outriggers Max. 8.2m
Mid. 7.3m, 5.5m
Min. 2.99m

Carrier

Engine Model Mitsubishi 6M60
Max. Output 200kW(267PS)/2,600min-1
Overall Length 16,190mm
Overall Width 3,315mm
Overall Height 3,785mm
