AA-18PCJ
This 18-meter class crawler-type articulated boom lift offers exceptional reach and flexible positioning. With a 200-kilogram platform loading capacity and a maximum platform floor height of 18.0 meters, the AA-18PCJ combines reach, stability, and precision for high-access applications.
Compare products
Product Specs
- Elevation 0°－70°
- Max. Main Boom Length 7.20m
- Max. Platform floor height 18.0m
- Max. Platform Loading Capacity 200 kg
- Max. Platform working radius 8.8m
- Platform Inside Dimensions 0.73m x 1.13m x 1.02m
- Tilt 3°
- Travel speeds 0.9 / 1.6 / 2.9 km/h
- Type of boom Articulating
Product description
Articulated Crawler Boom Lift for Extended Reach and Versatile Positioning

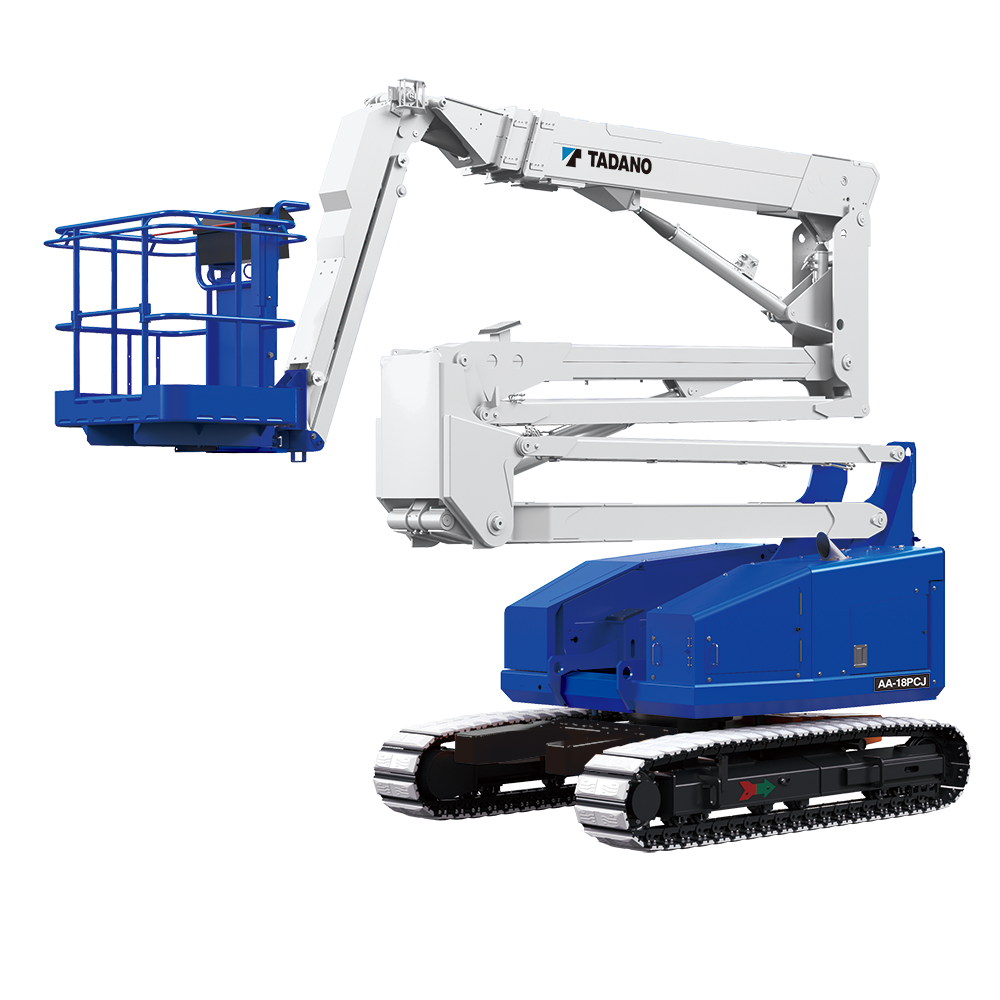

The Tadano AA-18PCJ Articulated Crawler Boom Lift delivers superior elevation and horizontal outreach in a stable, compact design. With a maximum platform floor height of 18.0 meters and a platform working radius of 8.8 meters, it provides the flexibility to work efficiently at multiple heights and positions.
Built with a 200-kilogram rated platform loading capacity, the AA-18PCJ supports both operators and tools with reliable balance and control. The 730 × 1,130 × 1,020 millimeter platform provides comfortable working space while maintaining excellent maneuverability in restricted areas.
Powered by a Kubota D1305 diesel engine, the machine ensures dependable output with three selectable travel speeds (0.9 / 1.6 / 2.9 kilometers per hour), allowing operators to switch smoothly between precision movement and efficient travel. The crawler track undercarriage delivers enhanced traction, low ground pressure, and stable operation across uneven or soft terrain.
With overall dimensions of 6.12 × 2.25 × 2.36 meters and an operating weight of 9,420 kilograms (9,660 kilograms with pads), the AA-18PCJ offers easy transport and strong structural integrity. Its 3° allowable tilt improves adaptability on mild slopes while maintaining safety and stability.
Built with Tadano’s signature attention to safety and usability, the model includes emergency stop systems, auxiliary lowering functionality, and robust LED lighting. Designed for contractors, maintenance teams, and industrial professionals, the AA-18PCJ combines reach, performance, and durability to meet the demands of complex access operations.
