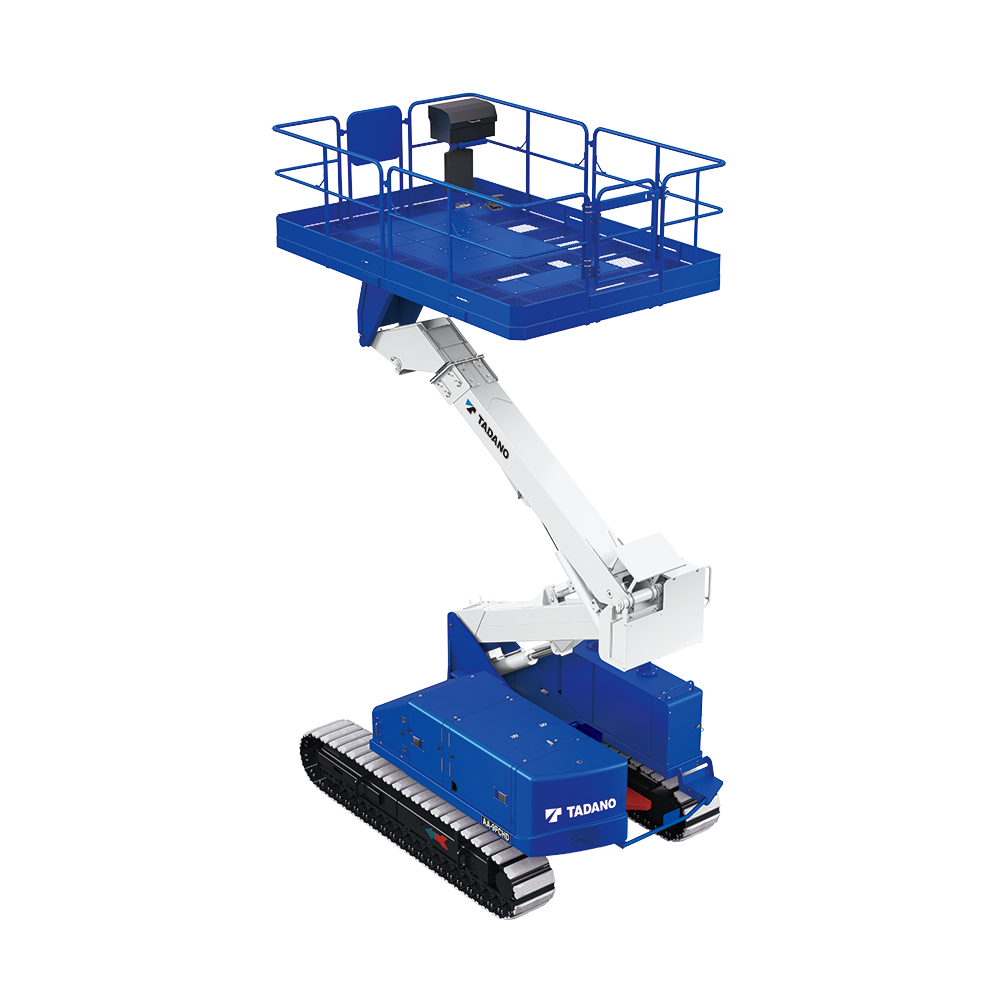

AA-9PCHD
This 9-meter class heavy-duty crawler-type articulated boom lift offers exceptional reach, stability, and payload capacity. With a 600-kilogram platform loading capacity and a maximum platform floor height of 9.3 meters, the AA-9PCHD delivers powerful performance for demanding industrial and construction applications.
Compare products
Product Specs
- Elevation 0°－65°
- Max. Main Boom Length 5.0m
- Max. Platform floor height 9.3m
- Max. Platform Loading Capacity 600 kg
- Max. Platform working radius 4.8m
- Platform Inside Dimensions 3.15m x 2.05m x 0.90m
- Tilt 3°
- Travel speeds 0.8 / 1.5 / 2.7 km/h
- Type of boom Articulating
Product description
Heavy-Duty Articulated Crawler Boom Lift with Extra-Wide Platform
The Tadano AA-9PCHD Articulated Crawler Boom Lift combines strength, reach, and versatility in a robust crawler-type configuration. Offering a maximum platform floor height of 9.3 meters and a platform working radius of 4.8 meters, it provides secure and efficient operation for high-access tasks across varied site conditions.
Built for heavy-duty use, the AA-9PCHD features a 600-kilogram rated platform loading capacity and an expansive 3,150 × 2,050 × 900 millimeter platform, allowing multiple operators and heavy tools to work safely and efficiently. Its extra-wide platform enhances accessibility and productivity in large or complex work areas.
Powered by a Kubota D1305 diesel engine, the AA-9PCHD ensures consistent and efficient output. It offers three selectable travel speeds (0.8 / 1.5 / 2.7 kilometers per hour), allowing smooth adjustment between fine positioning and travel movement. The crawler undercarriage provides superior ground contact and low surface pressure, ensuring stable operation even on soft or uneven terrain.
The model’s 3° allowable tilt, compact dimensions of 3.77 × 2.25 × 2.67 meters, and operating weight of 7,430 kilograms (7,670 kilograms with pads) make it both durable and easy to transport. These features provide excellent balance between portability and strength for industrial applications.
Safety and reliability are built into every detail of the AA-9PCHD. Standard features include emergency stop controls, LED lighting, and auxiliary lowering systems to ensure secure operation in all working conditions.
Strong, stable, and efficient, the AA-9PCHD exemplifies Tadano’s engineering excellence — the ideal solution for professionals needing heavy-duty lifting capability and wide-platform access on challenging worksites.
