AS-13PC / AS-13PCN
This 13-meter class crawler-type telescopic boom lift offers dependable reach and stability in a compact form. With a 250-kilogram platform loading capacity and a maximum platform floor height of 12.8 meters, the AS-13PC and AS-13PCN are built for precise and efficient elevated work in confined or rugged environments.
Compare products
Product Specs
- Elevation -17° – 66°
- Max. Main Boom Length 10.36m
- Max. Platform floor height 12.8m
- Max. Platform Loading Capacity 250 kg
- Max. Platform working radius 11.3m
- Platform Inside Dimensions 0.73m x 1.13m x 1.00m
- Tilt 5°
- Travel speeds 0.9 / 1.5 / 2.7 km/h
- Type of boom Telescopic
Product description
Compact Crawler Boom with Reliable Reach and Terrain Versatility

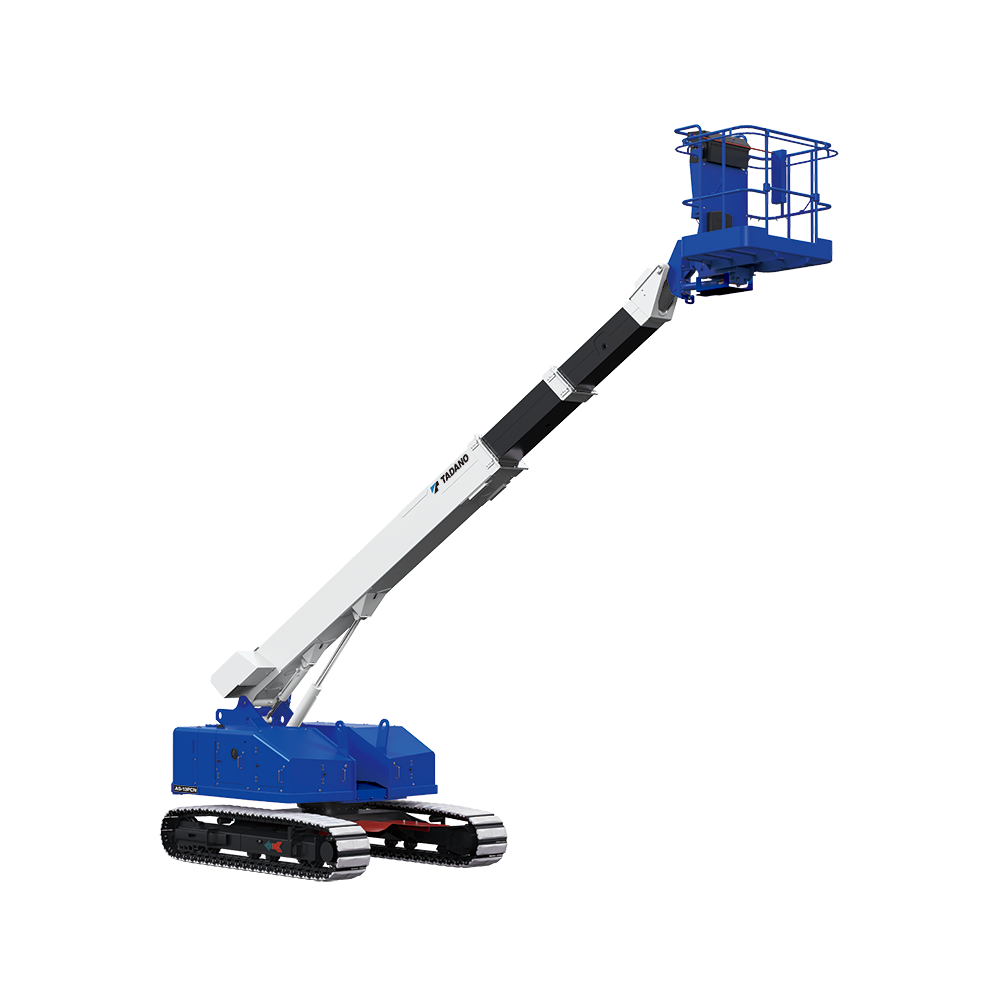

The Tadano AS-13PC and AS-13PCN Telescopic Crawler Boom Lifts are designed for operators who require a balance of reach, stability, and mobility. Delivering a maximum platform floor height of 12.8 meters and a platform working radius of 11.3 meters, these models provide smooth, controlled access for a wide range of elevated work tasks.
Both models feature a 250-kilogram rated platform loading capacity, accommodating personnel and tools with ease. The 730 × 1,130 × 1,000 millimeter platform offers generous workspace while maintaining a slim operational profile suited for restricted job sites.
Powered by a Kubota D1305 diesel engine, the AS-13PC/AS-13PCN provide consistent, fuel-efficient performance. Three travel speed modes — 0.9, 1.5, and 2.7 kilometers per hour — support both precise positioning and efficient site movement. The crawler-type undercarriage ensures excellent traction and low ground pressure, while the 5° allowable tilt allows stable operation even on uneven surfaces.
With compact transport dimensions of 7.24 × 2.25 × 2.13 meters and operating weights of 7,440 kilograms (AS-13PC) and 7,680 kilograms (AS-13PCN), these models combine easy transportability with Tadano’s hallmark durability.
Safety and reliability are prioritized through features such as emergency stop controls, LED lighting, and auxiliary lowering systems. Compact, agile, and dependable, the AS-13PC and AS-13PCN deliver Tadano’s trusted performance for contractors and operators working in space-constrained or varied terrain environments.
