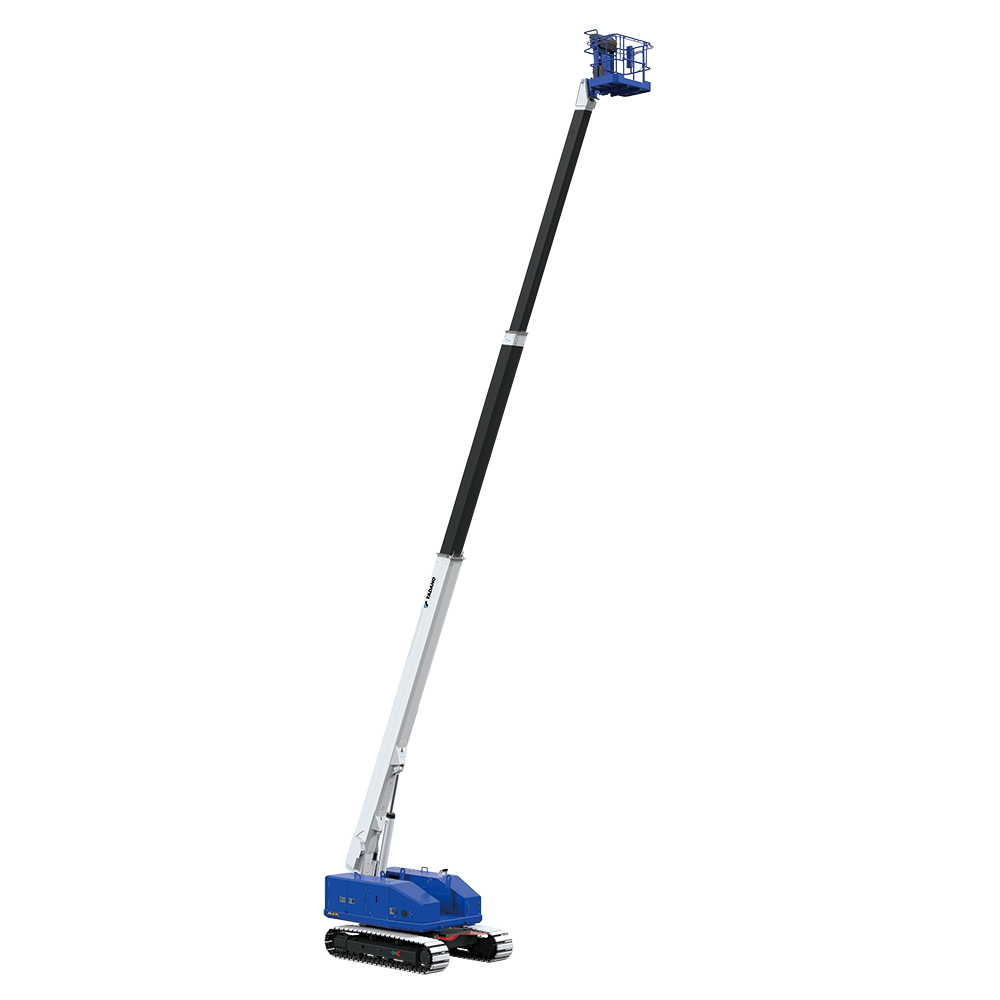

AS-21PC / AS-21PCN
This 21-meter class telescopic crawler boom lift delivers superior height, reach, and stability. Offering dual lifting capacities of 450 kilograms and 250 kilograms, the AS-21PC and AS-21PCN reach a maximum platform floor height of 20.9 meters with a platform working radius of 17.8 meters.
Compare products
Product Specs
- Elevation -10° – 70°
- Max. Main Boom Length 20.46m
- Max. Platform floor height 20.9m
- Max. Platform Loading Capacity 450 kg / 250 kg
- Max. Platform working radius 17.8m
- Platform Inside Dimensions 0.73m x 1.13m x 1.00m
- Tilt 5°
- Travel speeds 1.0 / 1.4 / 2.5 km/h
- Type of boom Telescopic
Product description
High-Reach Dual-Capacity Crawler Boom for Demanding Worksites
The Tadano AS-21PC and AS-21PCN Crawler-Type Telescopic Boom Lifts combine extended reach with outstanding versatility for complex worksite access. These models achieve a maximum platform floor height of 20.9 meters and a platform working radius of 17.8 meters, enabling precise operation in elevated or hard-to-reach environments.
Built around a dual-capacity system, the AS-21PC/AS-21PCN can lift up to 450 kilograms or 250 kilograms, depending on operational configuration. This flexibility allows operators to adapt to varying loads and outreach requirements without sacrificing efficiency. The platform, measuring 730 × 1,130 × 1,000 millimeters, provides ample workspace for personnel and equipment.
Powered by a Kubota V2607 diesel engine, the AS-21PC/AS-21PCN deliver reliable output with three selectable travel speeds up to 2.5 kilometers per hour, ensuring efficient on-site mobility. The crawler track system enhances traction and minimizes ground pressure, maintaining stability across diverse surfaces and gradients.
Compact yet capable, the machines feature transport dimensions of 10.65 × 2.48 × 2.19 meters, allowing easy relocation between job sites. Their 5° allowable tilt and operating weights of 16,750 kilograms (AS-21PC) and 17,170 kilograms (AS-21PCN) balance strength with transportability.
Safety features include LED lighting, emergency stop controls, and an auxiliary lowering system to support secure operation in demanding conditions. With a design that prioritizes stability, reach, and control, the AS-21PC and AS-21PCN are dependable solutions for contractors requiring extensive access capabilities in challenging work environments.
