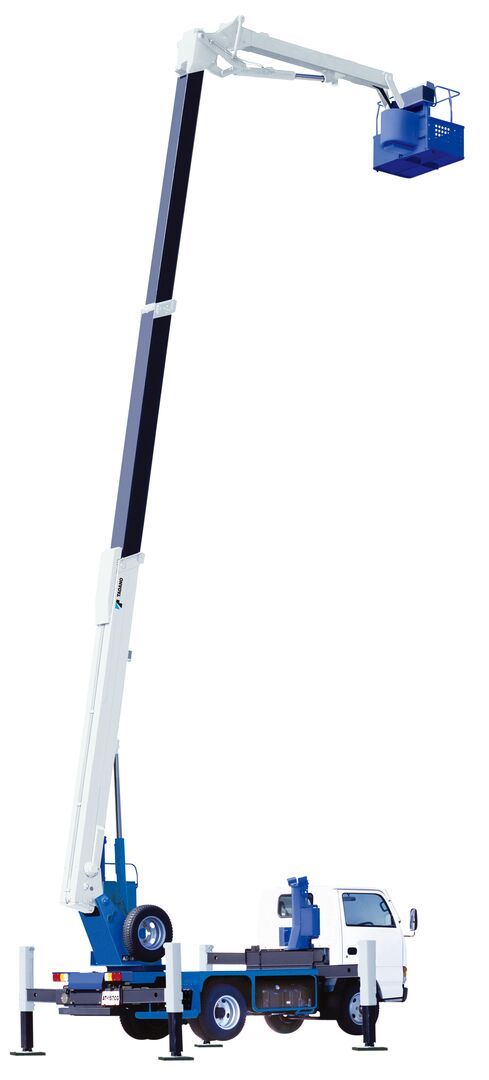

AT-157CG-1
AT-157CG has articulated booms to cope flexibly with operations in deeper reach, covering a wide range at negative elevation as well.
Compare products
Product Specs
- Bucket Inside Dimensions 0.7m × 1.2m × 0.95m
- Bucket Swing (Slewing) Angle 190°(Left 95°- Right 95°)
- Elevation -16° – 80°
- Material of Bucket Steel or F.R.P
- Max. Bucket Bottom Height 15.7m
- Max. Bucket Loading Capacity 200 kg
- Max. Main Boom Length 11.93m + 3.05m
- Outrigger Bases 3.3m
- Type of boom Telescopic & Articulating
Product description
Outreach operation with articulating boom
AT-157CG offers the maximum 15.7m bucket bottom height. This model can be mounted on light duty trucks. Five-way motion control covering boom telescoping, elevation, slewing, boom articulating, and bucket swinging. Computer control enables the bucket to move in a straight vertical path by changing the boom length, elevation angle, boom length and slewing, and bucket swing are controlled to achieve straight horizontal movement. The articulated boom enables approaches to recessed sections of buildings and to positions that are lower than the base boom section.
