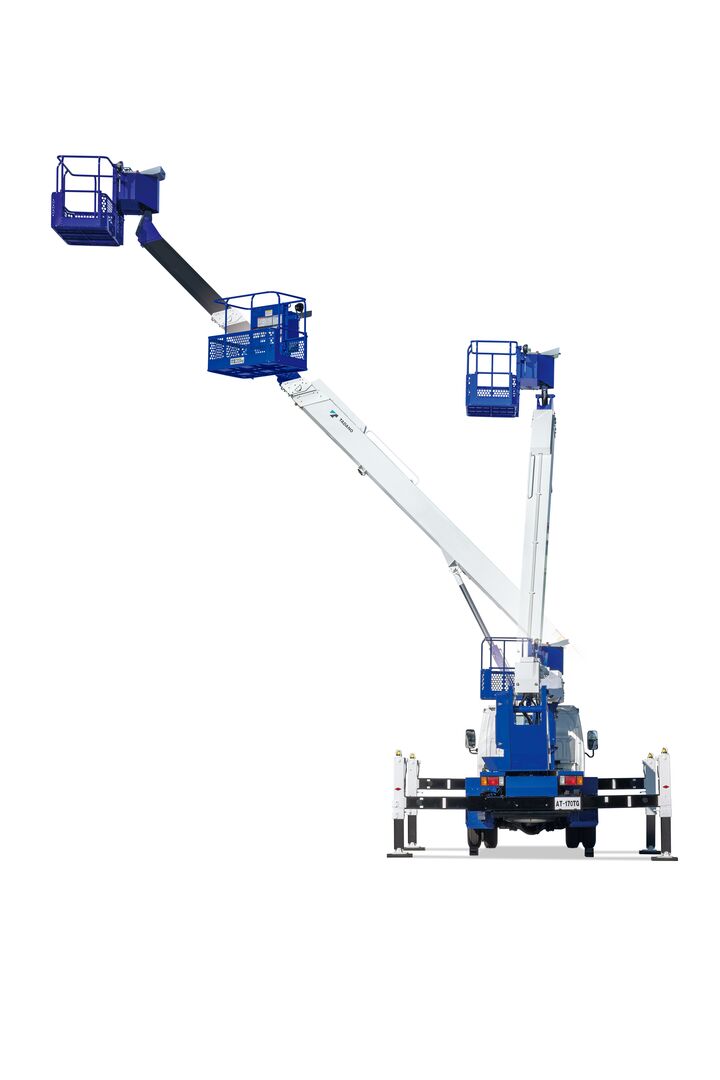

AT-170TG-2
AT-170TG offers consistent performance conditions with telescopic boom and 17.2m height bucket. It enables comfortable operation in high and wide areas in the class.
Compare products
Product Specs
- Outrigger Bases 4.1m
- Max. Main Boom Length 15.48m
- Material of Bucket Steel or F.R.P
- Max. Bucket Bottom Height 17.2m
- Bucket Swing (Slewing) Angle 200°
- Bucket Inside Dimensions 0.7m × 1.2m × 0.9m
- Elevation -16° – 80°
- Type of boom Telescopic
- Max. Bucket Loading Capacity 200 kg
Product description
Fully equipped to support safe, comfortable operation
AT-170TG offers the maximum 17.2m bucket bottom height with telescopic boom. This model can be mounted on light duty trucks. Straight line movement in any direction is achieved through integrated control of boom telescoping, elevating, slewing, and bucket swing. A full range of equipment to support safe and comfortable work, including bucket swing, boom automatic stowing system, elevating and slewing speed control system. The AMC (Automatic Motion and Moment Controller) automatically controls the work range by detecting the loading status and the outrigger position.
