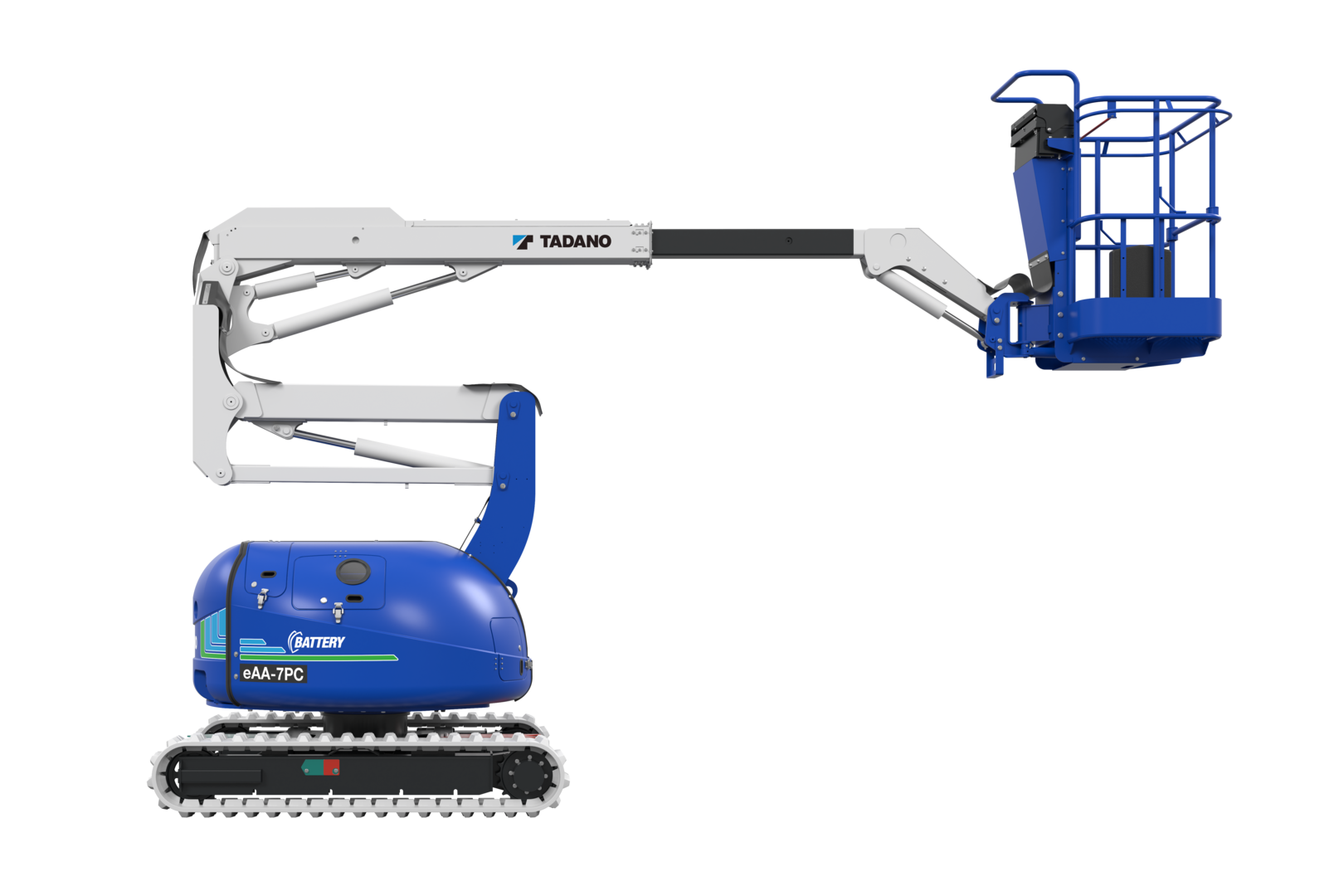

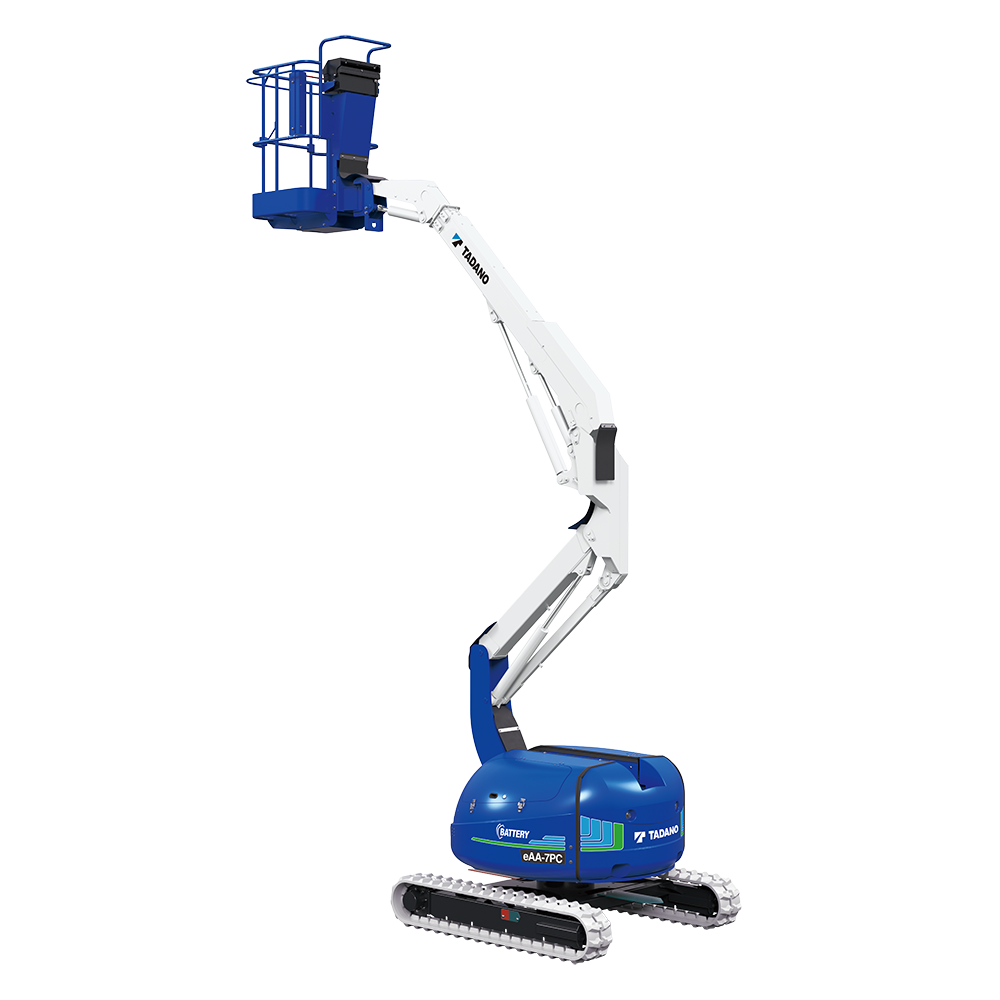

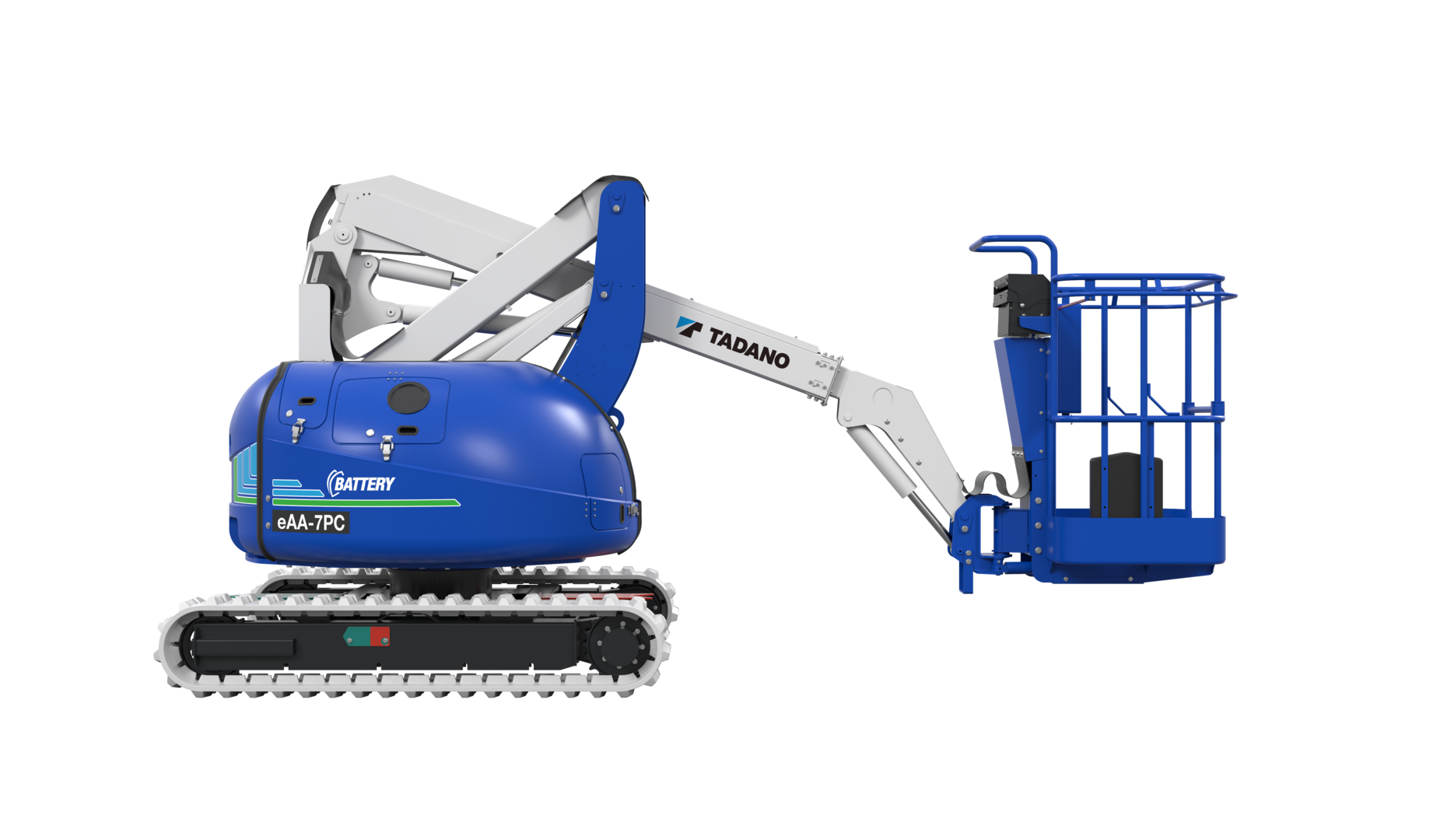

eAA-7PC
This 7-meter class battery-powered crawler-type articulated boom lift delivers quiet, zero-emission operation with stable reach and smooth control. With a 150-kilogram platform loading capacity and a maximum platform floor height of 6.8 meters, the eAA-7PC offers efficient performance for indoor and low-noise environments.
Compare products
Product Specs
- Elevation -20° – 69°
- Max. Main Boom Length 3.56m
- Max. Platform floor height 6.8m
- Max. Platform Loading Capacity 150kg
- Max. Platform working radius 4.5m
- Platform Inside Dimensions 0.62m x 0.77m x 1.00m
- Tilt 5°
- Travel speeds 0.8 / 1.1 / 2.2 km/h
- Type of boom Articulating
Product description
Battery-Powered Articulated Crawler Boom for Compact and Clean Operation
The Tadano eAA-7PC Articulated Crawler Boom Lift combines electric efficiency with versatile reach, offering a clean and quiet solution for indoor and confined-space applications. Achieving a maximum platform floor height of 6.8 meters and a platform working radius of 4.5 meters, this model delivers reliable access performance with smooth, stable movement.
Featuring a 150-kilogram rated platform loading capacity, the eAA-7PC provides sufficient space for operators and tools. The 620 × 770 × 1,000 millimeter platform offers secure footing while maintaining a compact profile suited for tight work zones.
Powered by a 48V battery system (6V × 8 units), this fully electric model eliminates emissions while ensuring consistent power for extended operation. It offers three travel speed modes (0.8 / 1.1 / 2.2 kilometers per hour), enabling operators to switch seamlessly between precision positioning and efficient travel.
The crawler track undercarriage enhances traction and minimizes surface impact, making the eAA-7PC suitable for delicate floors and uneven terrain alike. Its 5° allowable tilt improves operational stability on gentle gradients, while compact dimensions of 4.08 × 1.65 × 1.99 meters and a total weight of 2,740 kilograms ensure easy transport and maneuverability.
Designed for environments that require low noise and zero exhaust, the eAA-7PC delivers Tadano’s engineering quality with an emphasis on sustainability, reliability, and operator comfort. This model is the ideal choice for indoor facilities, maintenance work, and eco-conscious job sites.
