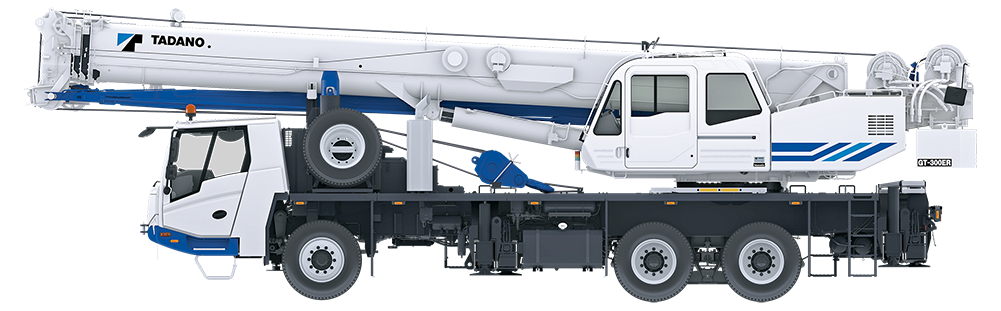

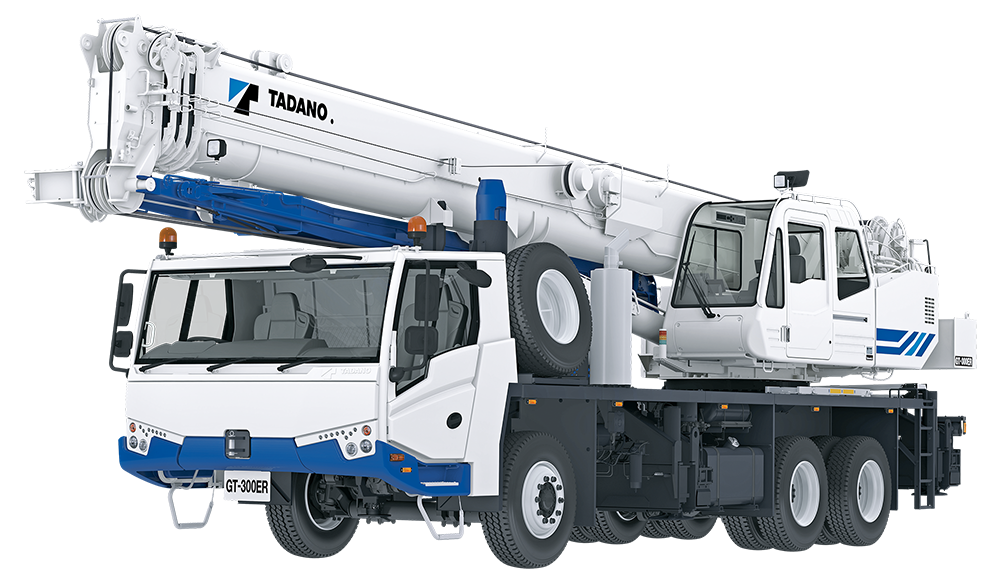

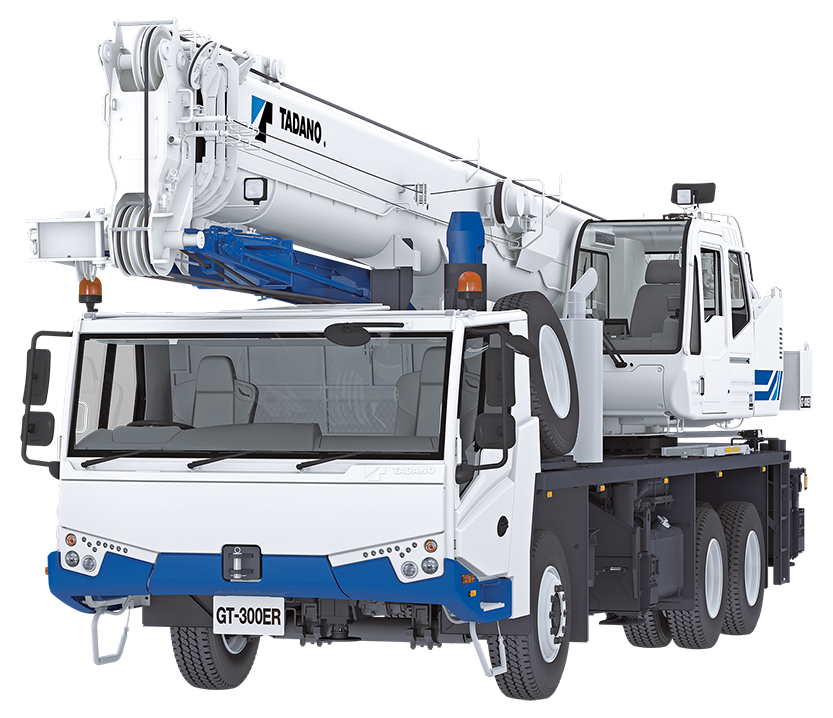

GT-300ER-3
Designed and built completely by Tadano, the GT-300ER-3 delivers dependable mobility and lifting performance with a 30-ton capacity, right-hand drive configuration, and a full-width cab for operators working across diverse road and jobsite conditions.
Compare products
Product Specs
- BRAND Tadano
- Capacity 30 t
- Dimensions L: 12.62 m W: 2.55 m H: 3.80 m
- Engine Daimler OM926LA
- GVM 29,320 kg
- Main Boom Length 10.3 m – 34.0 m
- Max. Crane Capacity 30 t
- Max. Load Moment 30t x 2.5m
- Max. Radius 40.0 m
Product description
Reliable, Road-Ready 30,000 kg Class Truck Crane
The GT-300ER-3 truck crane is engineered by Tadano to meet rigorous road standards while enhancing mobility and stability. With a 30-ton capacity, it features a 34.0 m / 111.5 ft rounded boom, plus a two-stage jib offering 8.5 m / 27.9 ft to 14 m / 45.9 ft with selectable offsets. Maximum lifting height reaches 34 m / 111.5 ft with the boom and up to 56 m / 183.7 ft with the jib. The right-hand-drive carrier includes a full-width cab and ZF TraXon AMT, supported by leaf-spring front suspension and Hendrickson ULTIMAAX rear suspension for smooth travel and control. Safety and precision are enhanced with the Tadano Automatic Moment Limiter (AML-C), Smart Chart, and optional HELLO-NET telematics.
