GT-750ER-3
Designed and built completely by Tadano, the GT-750ER-3 delivers powerful lifting performance and dependable mobility with a 75,000 kg capacity, right-hand drive layout, and a full-width cab engineered for demanding road and jobsite conditions.
Compare products
Product Specs
- BRAND Tadano
- Capacity 75 t
- Dimensions L: 14.18 m W: 2.80 m H: 3.74 m
- Engine Daimler OM457LA
- GVM 45,690 kg
- Main Boom Length 12.0 m – 47.0 m
- Max. Crane Capacity 75 t
- Max. Load Moment 75 t x 2.7m
- Max. Radius 48.0 m
Product description
High-Capacity, Long-Reach 75,000 kg Class Truck Crane

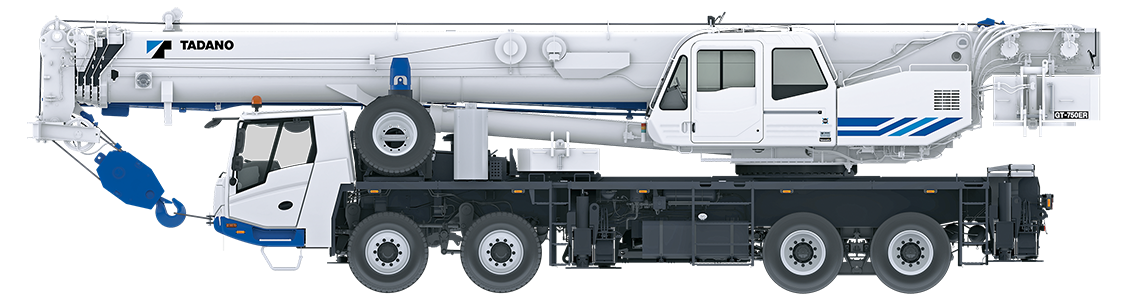

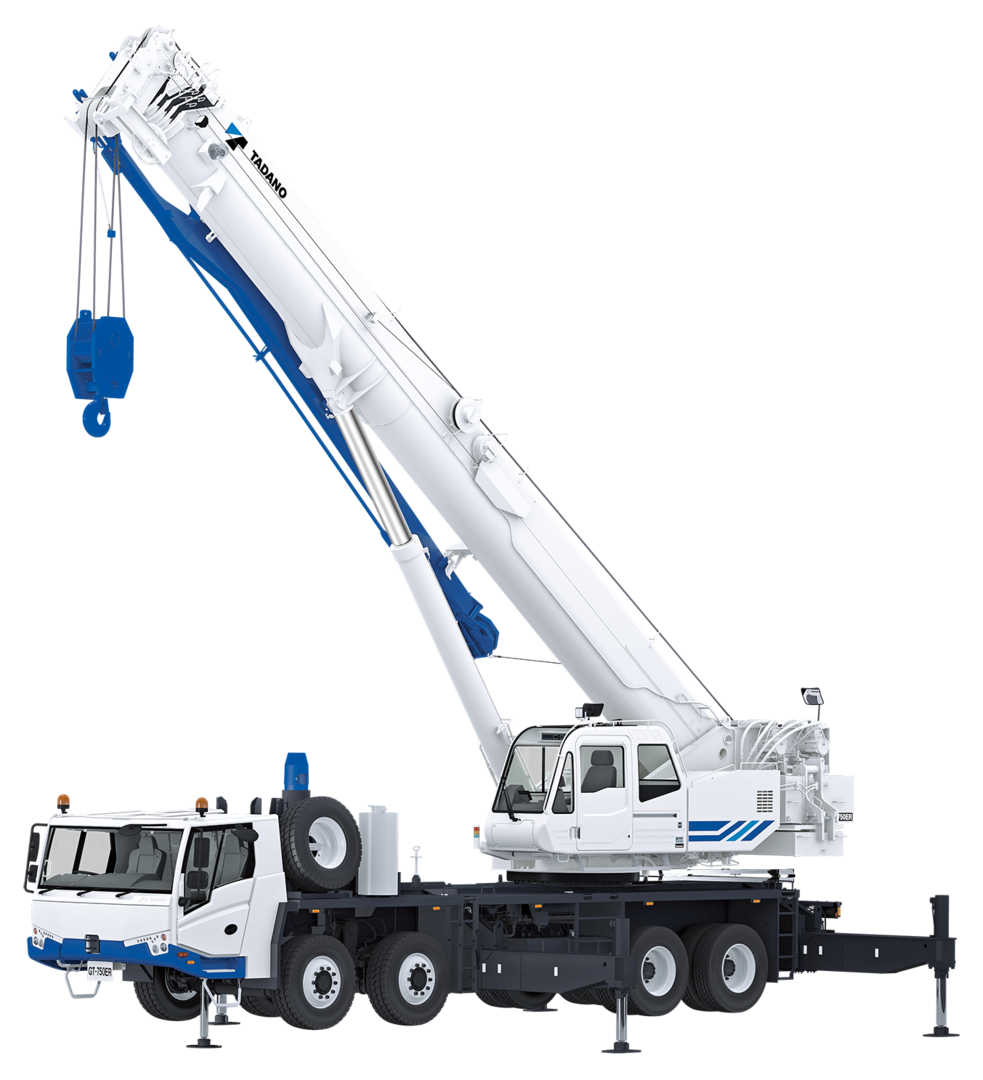

The GT-750ER-3 truck crane is engineered by Tadano to meet rigorous road standards while delivering exceptional reach and stability. With a 75-ton capacity, it features a 5-section, 12.0 m / 39.4 ft to 47.0 m / 154.2 ft rounded boom, plus a two-stage jib offering 9.0 m / 29.5 ft to 14.3 m / 46.9 ft with selectable offsets. Maximum lifting height reaches 47 m / 154.2 ft with the boom and up to approximately 61–66 m / 200–216 ft with the jib, based on the working-range chart (p. 7). The right-hand-drive carrier integrates a full-width cab, a EURO3 diesel engine, and a ZF TraXon AMT, supported by heavy-duty leaf-spring front suspension and Hendrickson ULTIMAAX rear suspension for smooth, stable travel. Operational safety and precision are enhanced by Tadano’s Automatic Moment Limiter (AML-C), Smart Chart, and optional HELLO-NET telematics.
