The 5-section 60m rounded boom is made of high tensile steel, which allows for decreased boom weight and increased boom strength.
Spec Sheet
Spec Sheet
The ultimate boom
-P-001.png)
Hydraulic telescoping and luffing jib *Optional
-P-002.jpg)
The ATF 400G-6 can be equipped optionally with an up to 31 m long fully hydraulically telescopable and tiltable jib (HTLJ). This permits uncomplicated lifting of loads beyond building edges and into upwardly restricted building structures, which would not be possible with rigid jibs. This means that the HTLJ made by Tadano works like an additional fully hydraulic main boom. The HTLJ enables the additional advantage of assembly within approx. 30 minutes without an auxiliary crane - even in confined spaces when it is not extended.
*An auxiliary crane is required to mount the adapter on the boom head.
Lift Adjuster
-P-003.png)
Boom deflection occurs when the winch is wound due to the weight of the lifted load, causing the lifted load to sway in a direction that expands the load radius as it clears the ground. This situation requires very careful and precise operation to mitigate outward movement of the hook block. In the lift adjuster function, the AML detects boom deflection and automatically adjusts boom angle to mitigate outward hook block movement.
Release Adjuster
-P-004.png)
When the load touches the ground, the deflected boom straightens causing the hook block to move inward toward the crane. This situation requires very careful and precise operation to mitigate the inward movement of the hook block. In the release adjuster function, the AML detects when the load touches the ground and automatically adjusts boom angle to mitigate inward hook block movement.
Hello-Net
Hello-Net is a standard feature used to support our customers’ efficient crane operations straight from your computer or mobile device. The customer can monitor their crane activity, work history, machine position data, and maintenance information. Tadano offers advanced customer support with the Hello-Net system.

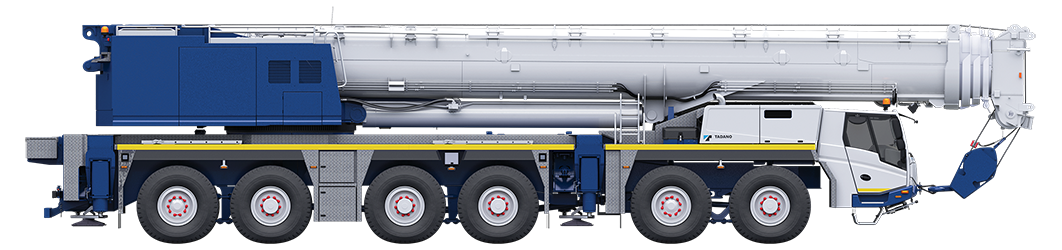

The ATF 400G-6 has a 136-tonne counterweight and is available with the optional 78.5 m luffing jib or our boom suspension system called "Power System".
Crane
| Max. Lifting Capacity | Boom | 400t x 2.7m |
|---|---|---|
| Max. Lifting Height | Boom | 61.0m |
| Boom+Jib | 122.0m | |
| Max. Load Radius | Boom | 58.0m |
| Boom+Jib | 86.0m | |
| Boom Length | 15.0m - 60.0m | |
Carrier
| Engine Model | Mercedes Benz (Euromot III B, EPA Tier 4i) | |
|---|---|---|
| Max. Output | Carrier | 480 kW (653 HP) |
| Superstructure | 195 kW (265 HP) | |
| Max Traveling Speed | 85km/h | |
| Drive/Steering | 12 x 8 x 12 | |
| Overall Length | 17,898mm | |
| Overall Width | 3,000mm | |
| Overall Height | 3,989mm | |
Crane
| Max. Lifting Capacity | Boom | 400t x 2.7m |
|---|---|---|
| Max. Lifting Height | Boom | 61.0m |
| Boom+Jib | 122.0m | |
| Max. Load Radius | Boom | 58.0m |
| Boom+Jib | 86.0m | |
| Boom Length | 15.0m - 60.0m | |
Carrier
| Engine Model | Mercedes Benz (EU Stage IV / EPA Tier 4f) | |
|---|---|---|
| Max. Output | Carrier | 460 kW (625 HP) |
| Superstructure | 205 kW (279 HP) | |
| Max Traveling Speed | 85km/h | |
| Drive/Steering | 12 x 8 x 12 | |
| Overall Length | 17,955mm | |
| Overall Width | 3,000mm | |
| Overall Height | 3,993mm | |
