Aerial Work Platforms

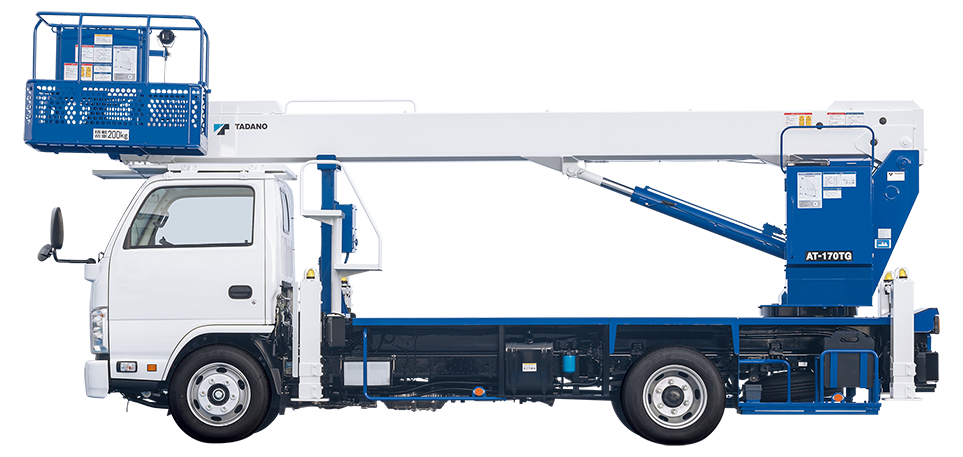

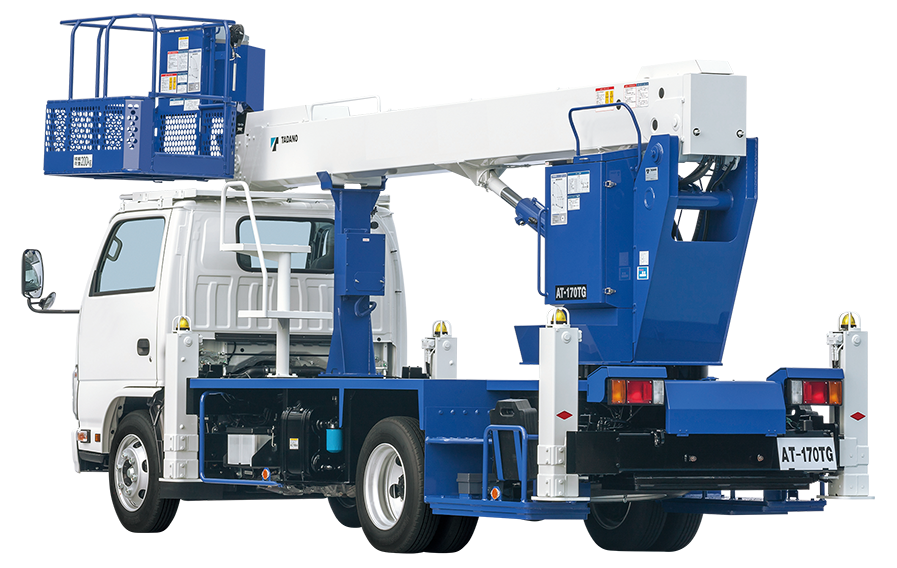

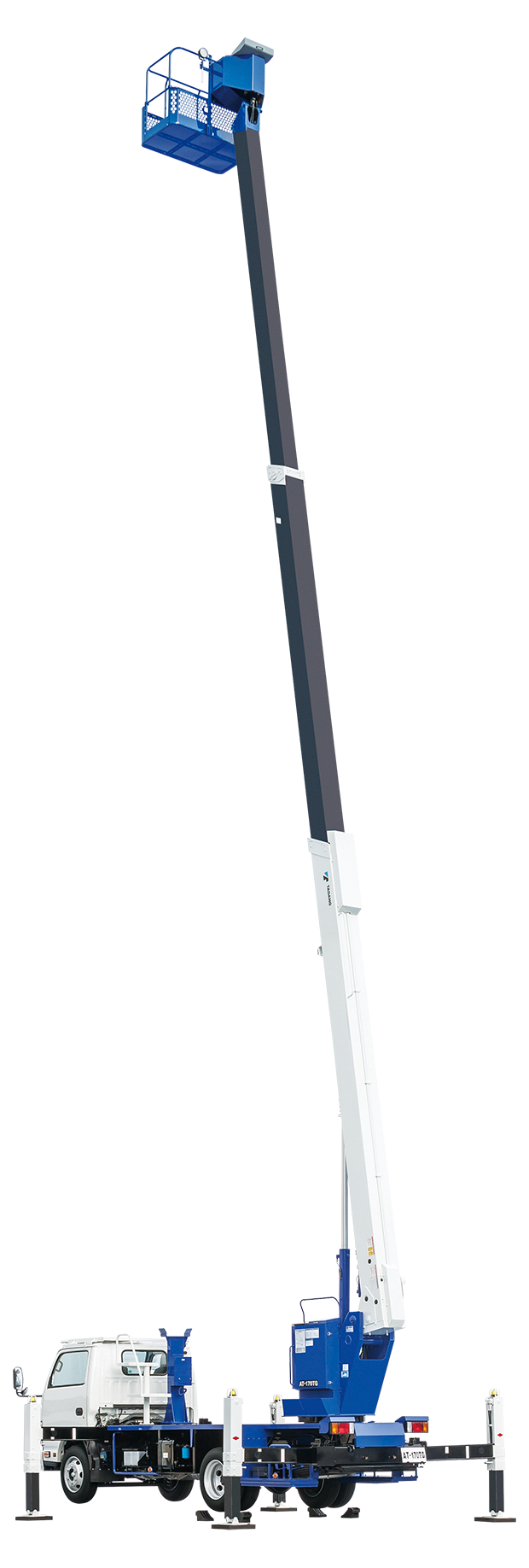

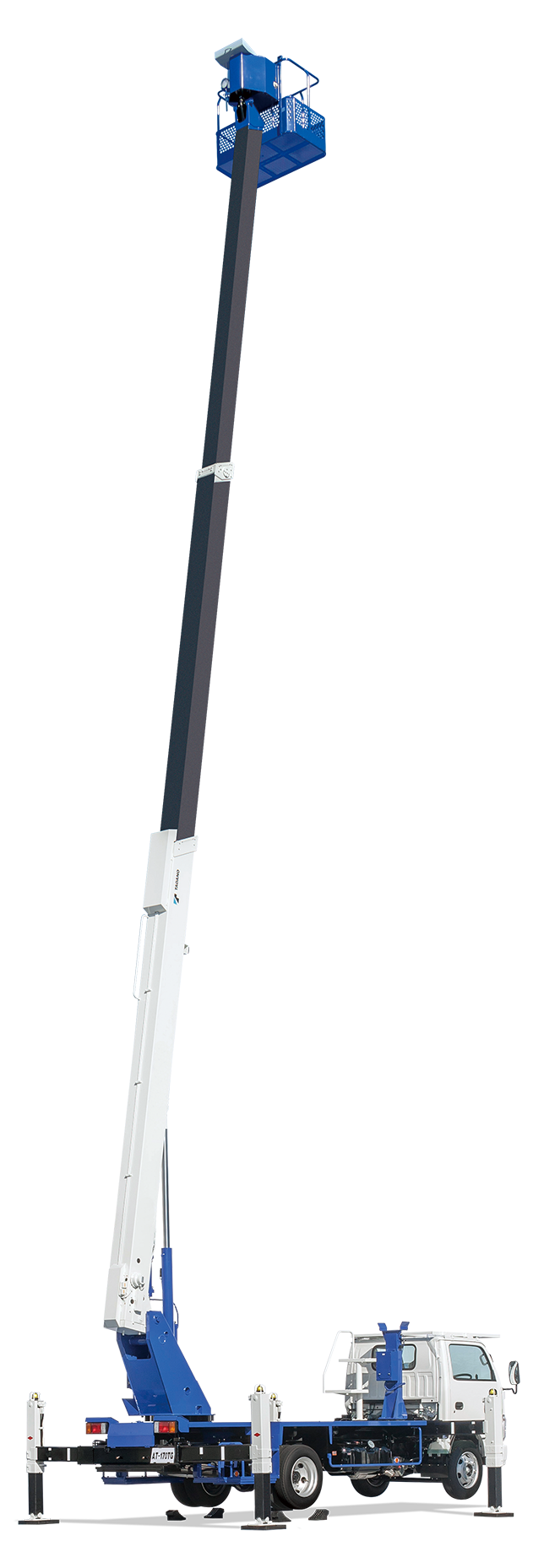

AT-170TG-2
Aerial Work Platforms
AT-170TG-2
Brochure
- Specification
General Purpose Use (Telescopic)
| Max. Platform Loading Capacity | 200kg | |
|---|---|---|
| Material of Bucket | F.R.P. | |
| Max. Bucket Bottom Height | 17.2m | |
| Bucket Swing (Slewing) Angle | 200° | |
| Bucket Inside Dimensions | 0.7m × 1.2m × 0.9m | |
| Boom Length | 6.2m - 15.48m | |
| Elevation | -16° - 80° | |
| Type of boom | Telescopic | |
| Extension width of outriggers | Max. | 4.1m |
