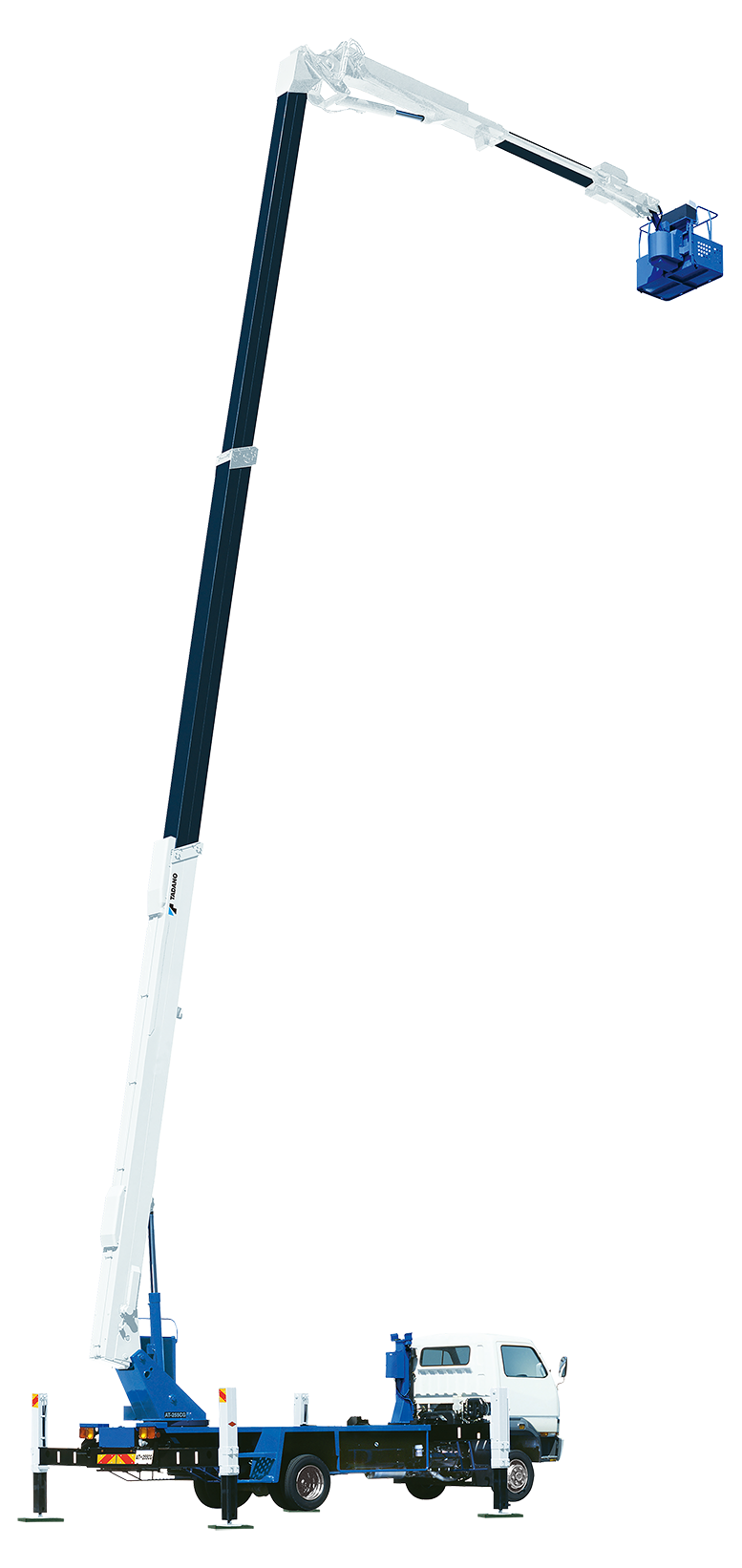

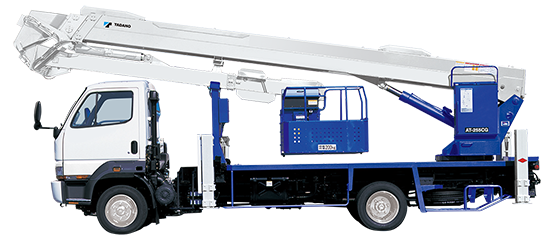

Aerial Work Platforms
AT-255CG-1
Aerial Work Platforms
AT-255CG-1
Brochure
- Specification
General Purpose Use (Telescopic)
| Max. Basket Loading Capacity | 200kg | |
|---|---|---|
| Material of Basket | Steel | |
| Max. Basket Bottom Height | 25.5m | |
| Max. Basket Bottom Depth | 7.0m | |
| Basket Swing (Slewing) Angle | 186°(Left93°- Right 93°) | |
| Basket Inside Dimensions | 0.7m × 1.2m × 0.95m | |
| Boom Length | Min. Retracted | 7.70m + 4.70m |
| Max. Extended | 18.26m + 6.65m | |
| Elevation | -12° - 80° | |
| Type of boom | Telescopic & Articulating | |
| Extension width of outriggers | Max. | 4.4m |
