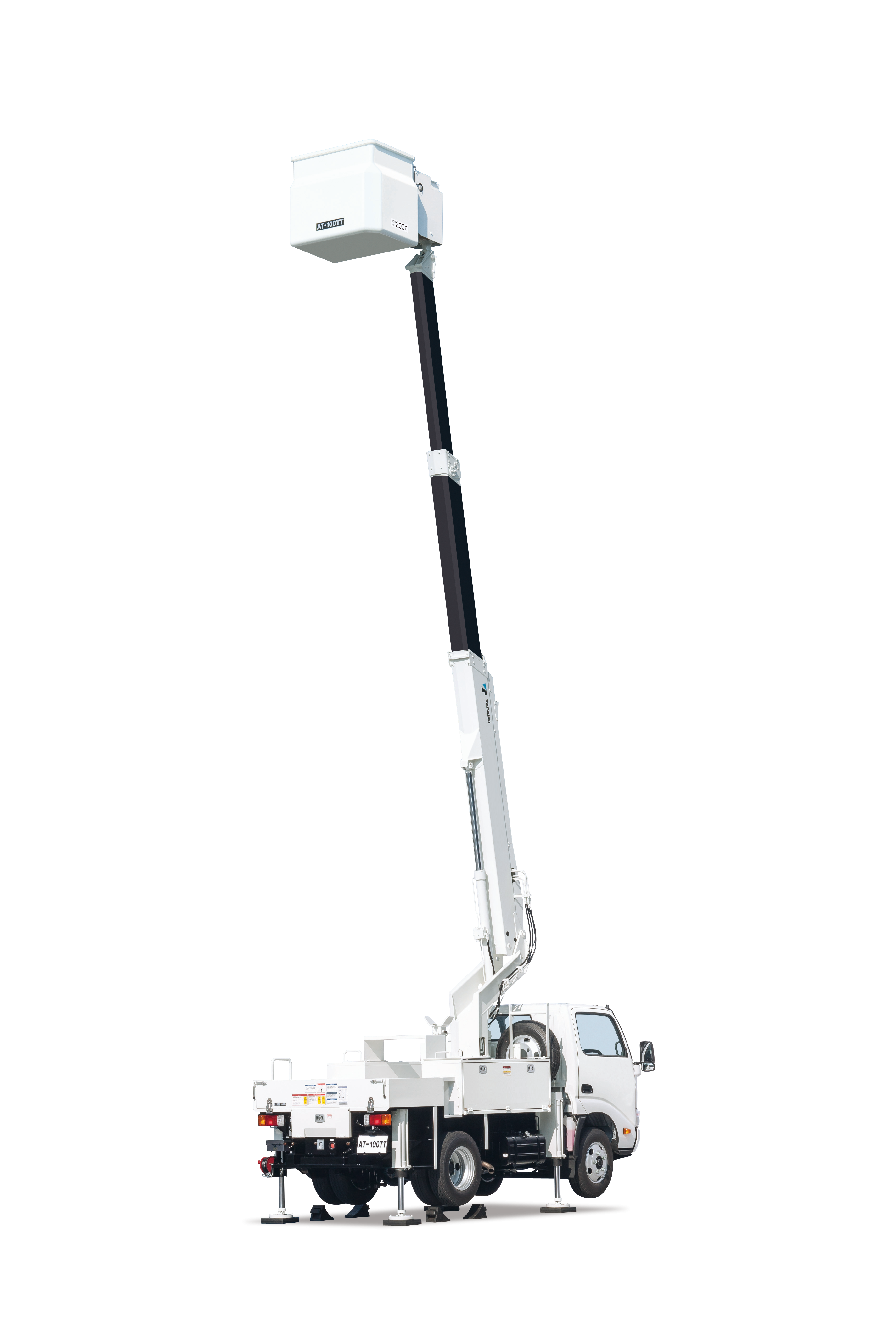

Truck Mounted Aerial Work Platform (Electric & Telecommunication use)
AT-100TT-5
Truck Mounted Aerial Work Platform (Electric & Telecommunication use)
AT-100TT-5
Brochure
- Specification
General Purpose Use (Telescopic)
| Max. Bucket Loading Capacity | 200kg | |
|---|---|---|
| Material of Bucket | F.R.P | |
| Max. Bucket Bottom Height | 9.9m | |
| Bucket Swing (Slewing) Angle | 208°(Left104°- Right 104°) | |
| Bucket Inside Dimensions | 0.7m × 1.0m × 0.9m | |
| Boom Length | 3.44m - 7.13m | |
| Elevation | -17.5° - 80° | |
| Type of boom | Telescopic | |
| Extension width of outriggers | Max. | 7.13m |
