Rough Terrain Cranes

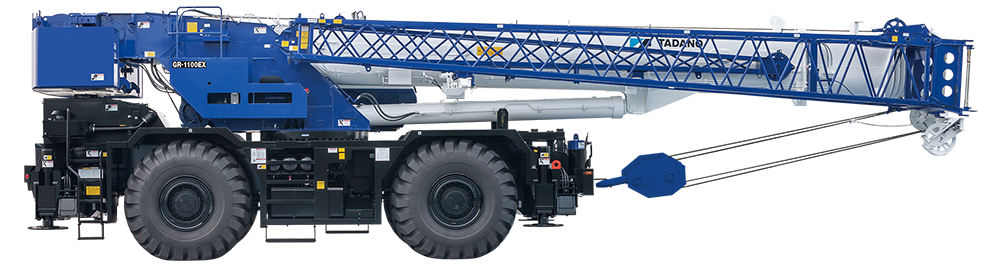

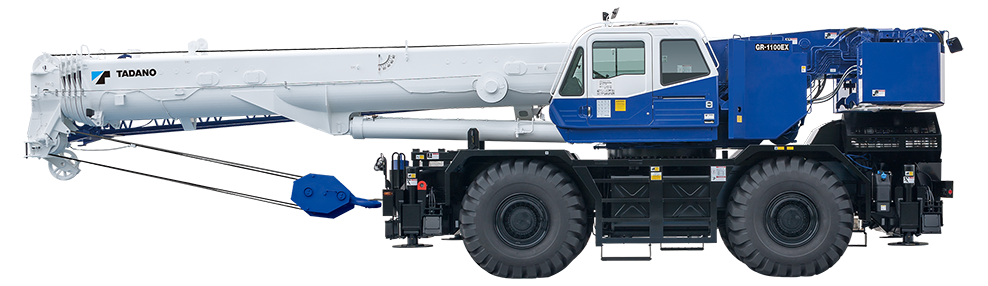

GR-1100EX

GR-1100EX
GR-1100EX
GR-1100EX
GR-1100EX
GR-1100EX
GR-1100EX
GR-1100EX
GR-1100EX

Rough Terrain Cranes

GR-1100EX

Brochure

Brochure

Spec Sheet

Spec Sheet

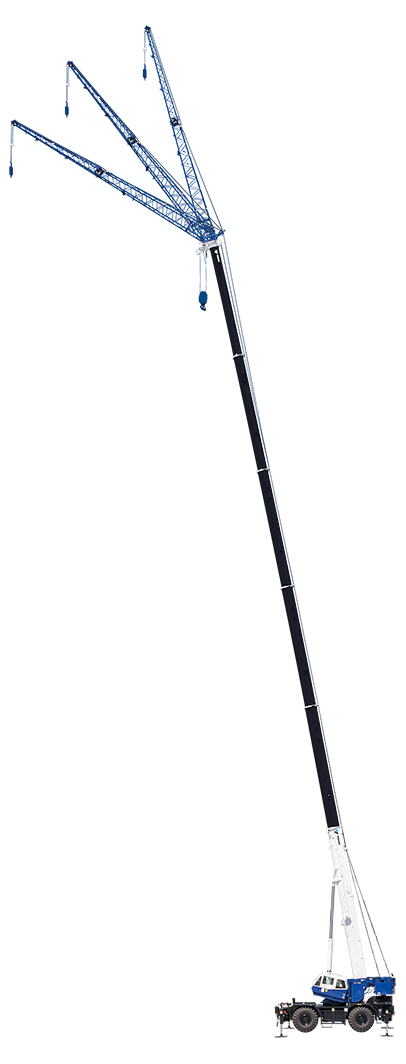

The ultimate boom

The ultimate boom

The 6-section 56m rounded boom is made of high tensile steel, which allows for decreased boom weight and increased boom strength.

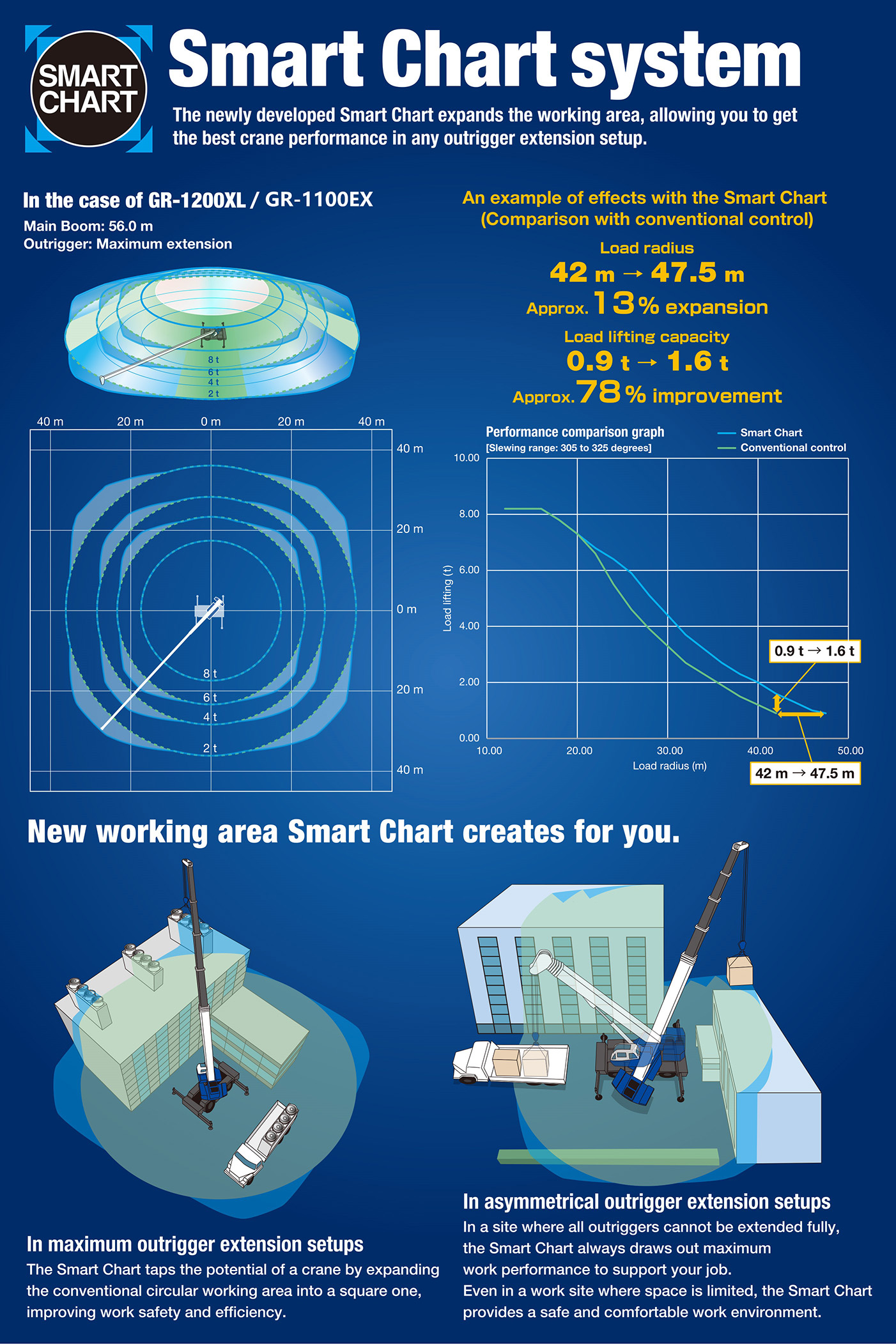

Smart Chart system

Smart Chart system

In 1991, ahead of other manufacturers, Tadano introduced a control system that allows safe crane operations in asymmetric outrigger extension setups by way of outrigger extension width detection. This technology evolved into the newly developed Smart Chart, which brings out better crane performance, also while the outriggers are fully extended. The Smart Chart expands the working area shape from a circular cone to a square pyramid, which allows you to get the most of the crane performance in any outrigger extension setups.

Control of asymmetric extension width of outriggers

Control of asymmetric extension width of outriggers

When operating the crane with the asymmetric outriggers extended, the AML-C automatically detects the extension width of outriggers at the front and rear, and to the left and right of the crane to offer maximum work value through each area.
When slewing the boom from the longer outrigger area to the shorter outrigger area, the AML-C automatically detects the motion and displays the maximum capacity depending on each extension width of the outriggers, and brings the motion to a slow stop before it reaches the limits of the allowed capacity.
Therefore, even if the operator operates the crane without being aware of a change in the capacity, the AML-C monitors it continuously to ensure safe operation.

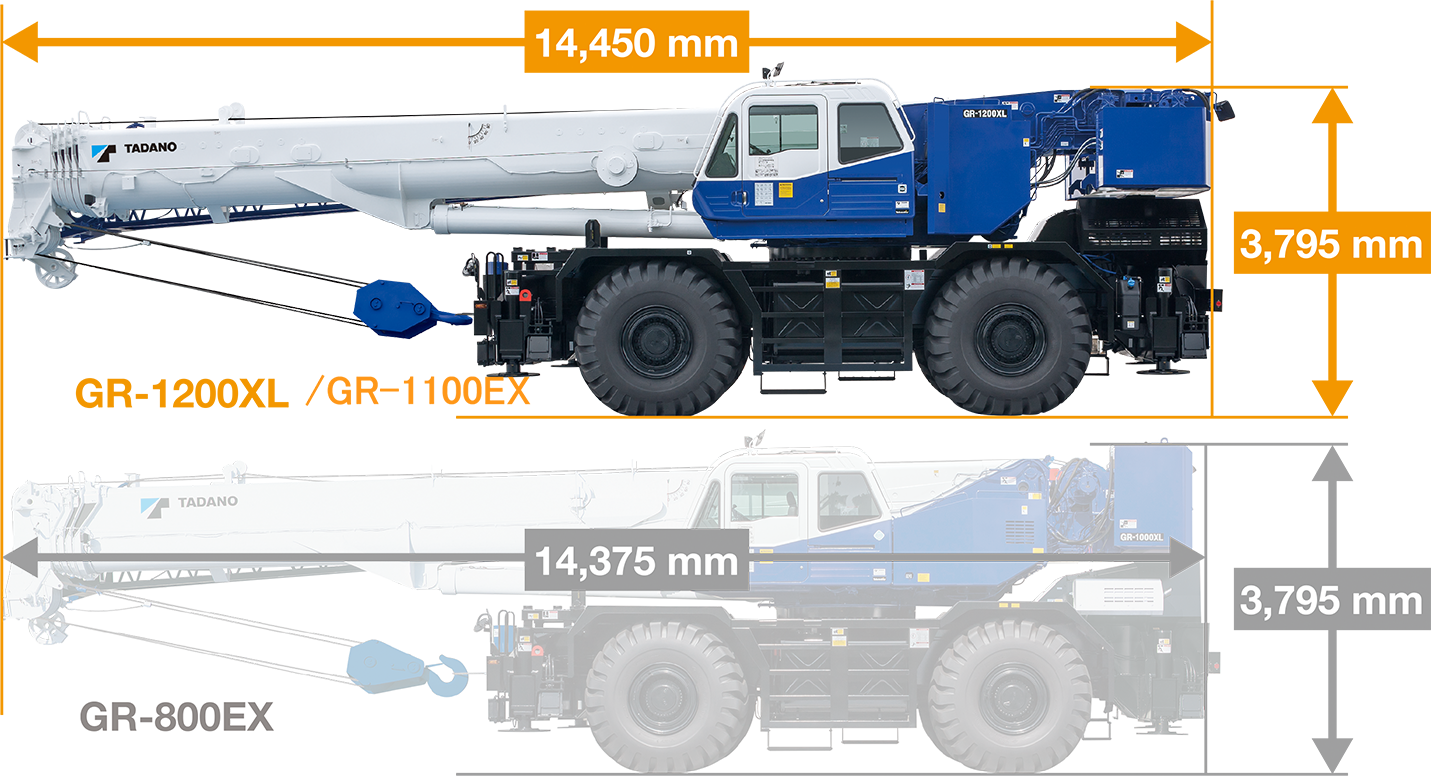

Highly Maneuverable Compact Carrier

Highly Maneuverable Compact Carrier

The GR-1100EX features a compact carrier that is nearly the same size as Tadano’s smaller capacity GR-800EX. Its compactness makes the GR-1100EX both highly maneuverable and easy to transport.

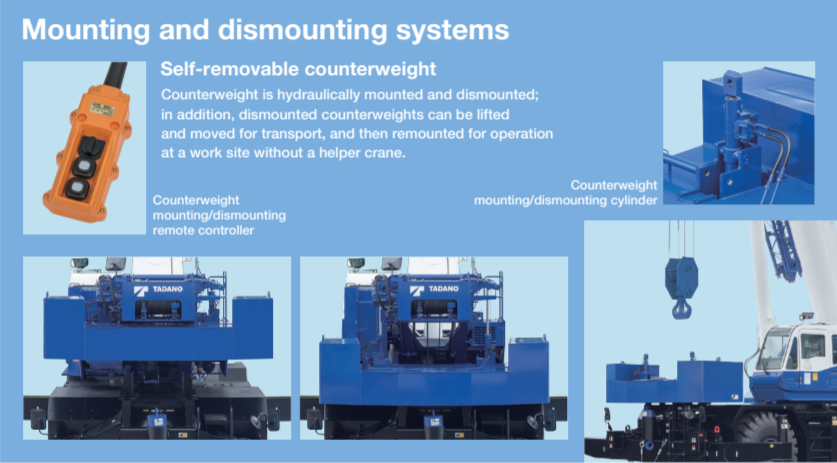

Self-removable counterweight

Mounting and dismounting systems

Counterweight can be hydraulically installed/removed by operating remote controller without the need of a support crane.

Hello-Net

Hello-Net

Hello-Net is a standard feature used to support our customers’ efficient crane operations straight from your computer or mobile device. The customer can monitor their crane activity, work history, machine position data, and maintenance information. Tadano offers advanced customer support with the Hello-Net system.

Crane

Crane Capacity Boom 110t x 2.5m
Max. Lifting Height Boom 56.1m
Boom+Jib 73.6m
Max. Load Radius Boom 44.0m
Boom+Jib 48.3m
Boom Length 12.0m - 56.0m
Jib Length 10.1m / 17.7m
Extension width of outriggers Max. 7.3m
Mid. 6.7m, 5.5m
Min. 2.7m

Carrier

Engine Model Mitsubishi 6M60
Max. Output 200kW(267PS)/2,600min-1
Overall Length 14,450mm
Overall Width 3,315mm
Overall Height 3,795mm
