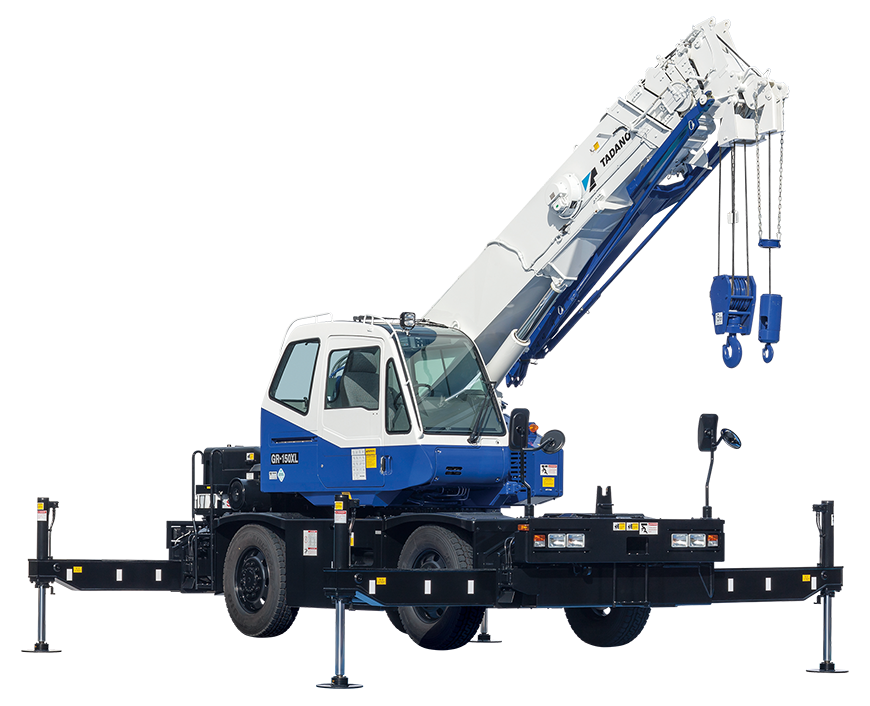

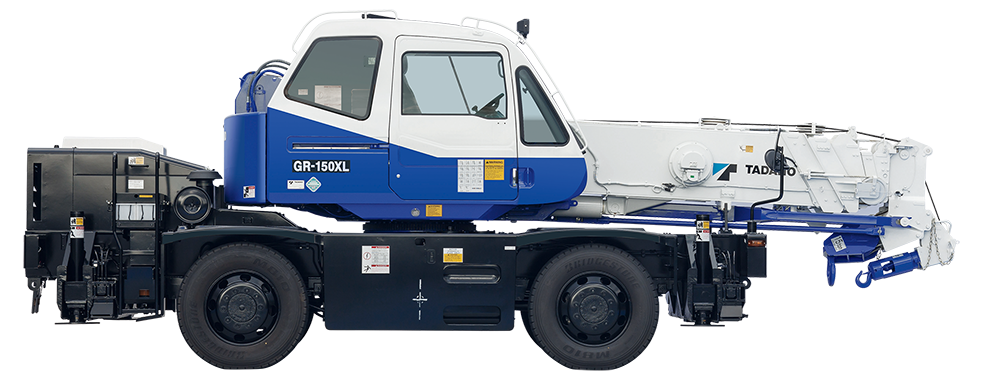

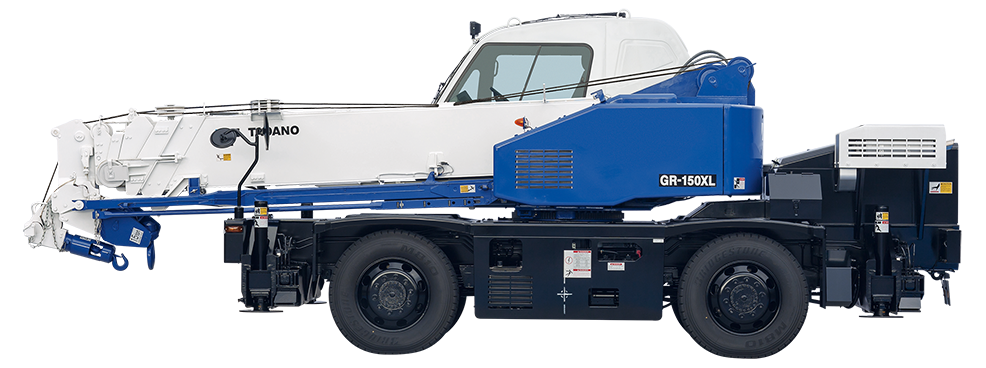

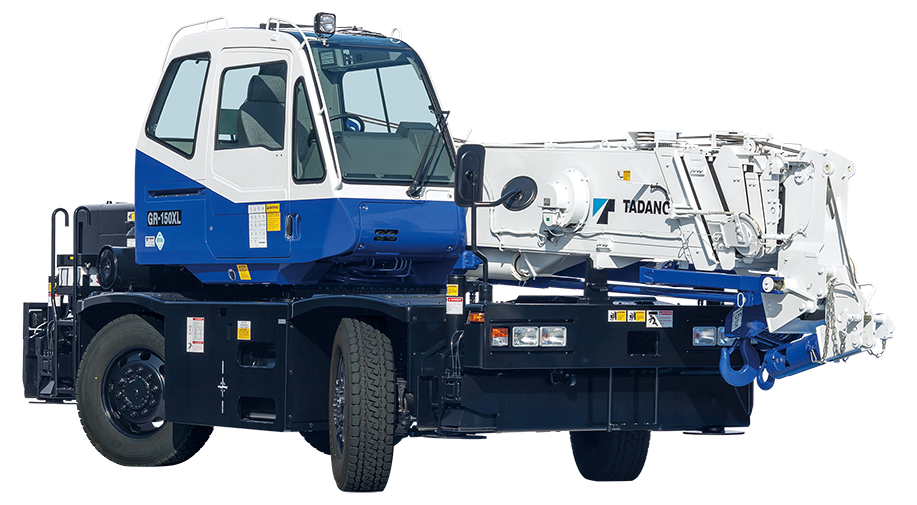

Highly maneuverable design

Highly maneuverable design

A compact and highly maneuverable design enables operators to complete jobs more efficiently compared to other bulkier alternative models. It can easily approach to tight or busy job sites, can be set up quickly.

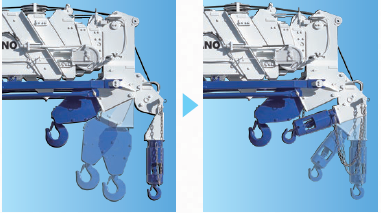

Hook block storage

Hook block storage

Hook block stowing system enhances work efficiency.

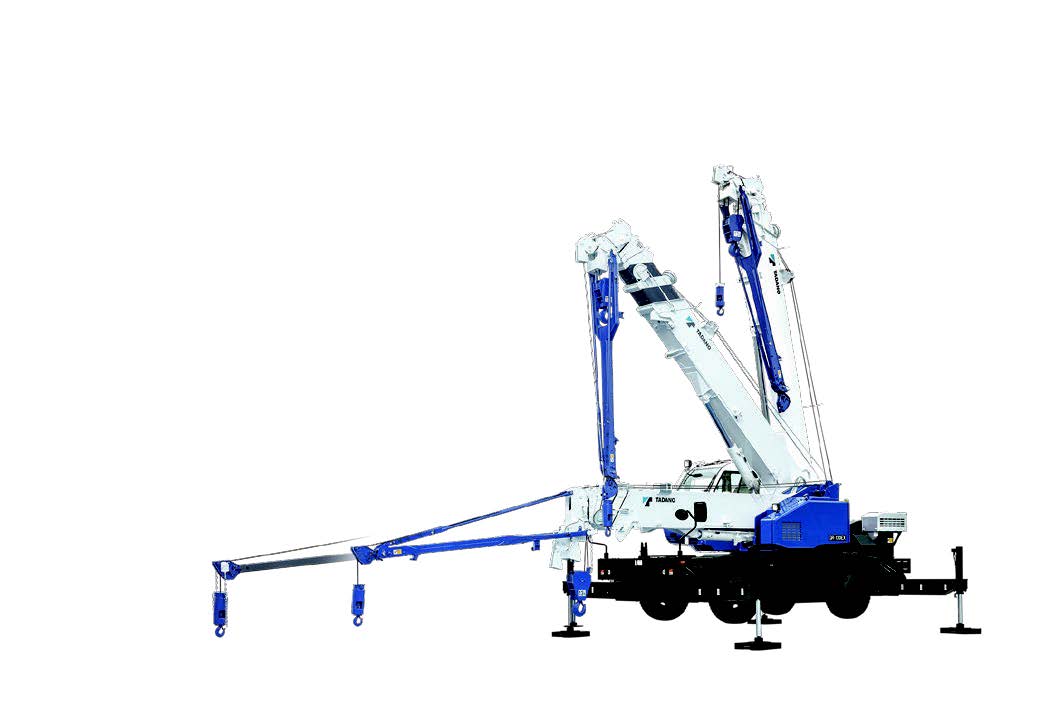

Under-slung jib

Under-slung jib

A two-stage, under slung jib makes installation in narrow spaces possible.

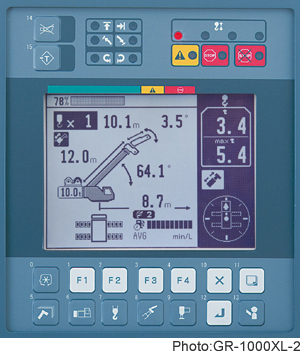

Load moment indicator (AML-C)

Load moment indicator (AML-C)

Tadano’s AML-C is easy to use. It allows the operator to simultaneously monitor: boom angle, boom length, operating pressure of elevating cylinder, the extended width of the outriggers, slewing position, rated lifting capacity and present hook weight. All of this enables the AML-C to move easily through lifting capacity changes without changing configurations and codes to make a lift.

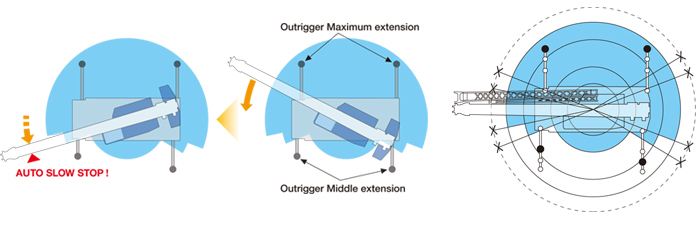

Control of asymmetric extension width of outriggers

Control of asymmetric extension width of outriggers

When operating the crane with the asymmetric outriggers extended, the AML-C automatically detects the extension width of outriggers at the front and rear, and to the left and right of the crane to offer maximum work value through each area.
When slewing the boom from the longer outrigger area to the shorter outrigger area, the AML-C automatically detects the motion and displays the maximum capacity depending on each extension width of the outriggers, and brings the motion to a slow stop before it reaches the limits of the allowed capacity.
Therefore, even if the operator operates the crane without being aware of a change in the capacity, the AML-C monitors it continuously to ensure safe operation.

Crane

Crane Capacity Boom 13.6t x 1.52m

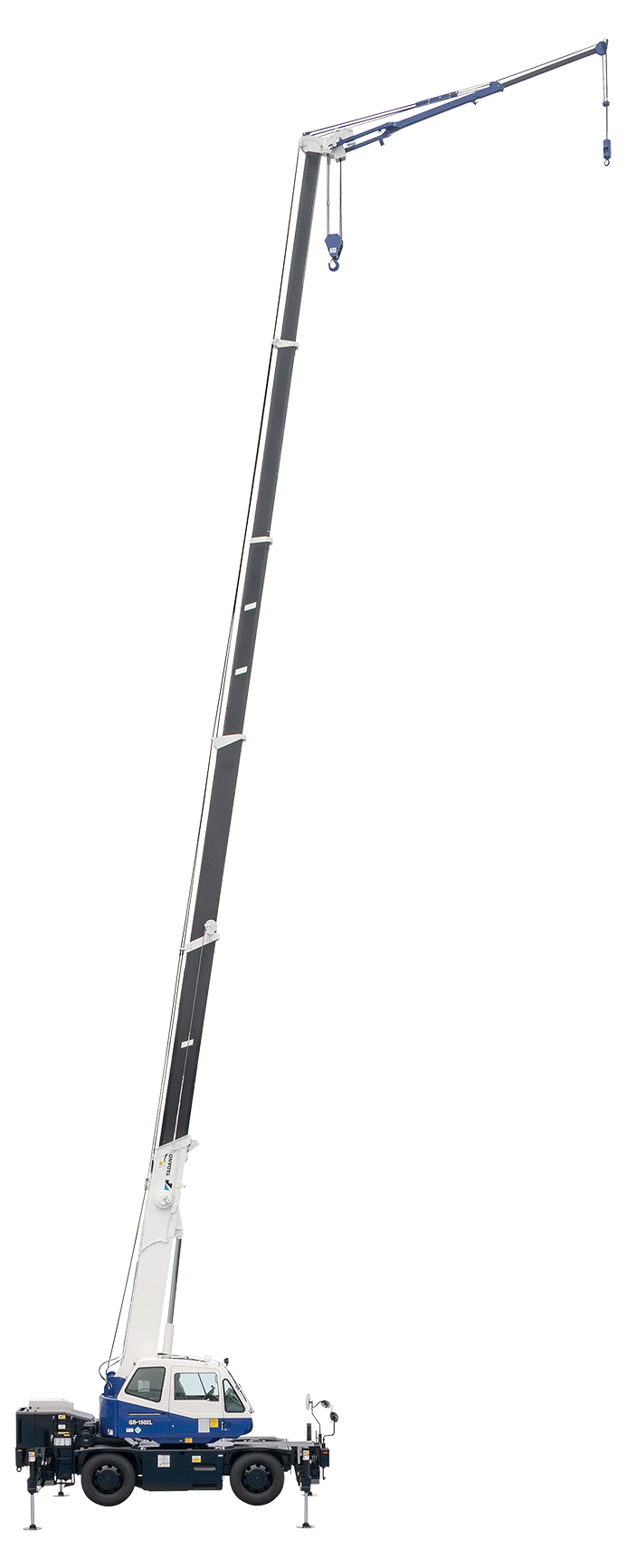

Max. Lifting Height Boom 24.5 m
Boom+Jib 30.0 m
Max. Load Radius Boom 22.5 m
Boom+Jib 23.2 m
Boom Length 23.8 m
Jib Length 3.6 m / 5.5 m
Extension width of outriggers Max. 4.7 m
Mid. 2.5 m / 3.5 m / 4.3 m
Min. 1.64 m

Carrier

Engine Model Mitsubishi 4M50
Max. Output 129kW/2,700min-1
Overall Length 7.54 m
Overall Width 2.00 m
Overall Height 2.815m
