The ride quality has been optimized to ensure the driver's comfort and protect the carrier. With the Reyco leaf-type suspensions on the front axles (for GT-750EL-3/GT-750ER-3/GT-600EL-3/GT-600ER-3), ride comfort and operability have been improved. With the rubber suspension co-developed with Hendrickson, the durability has been extremely proven in the harshest environments on the road and the ride comfort and maintainability have been improved.
Spec Sheet
New suspensions for the carrier

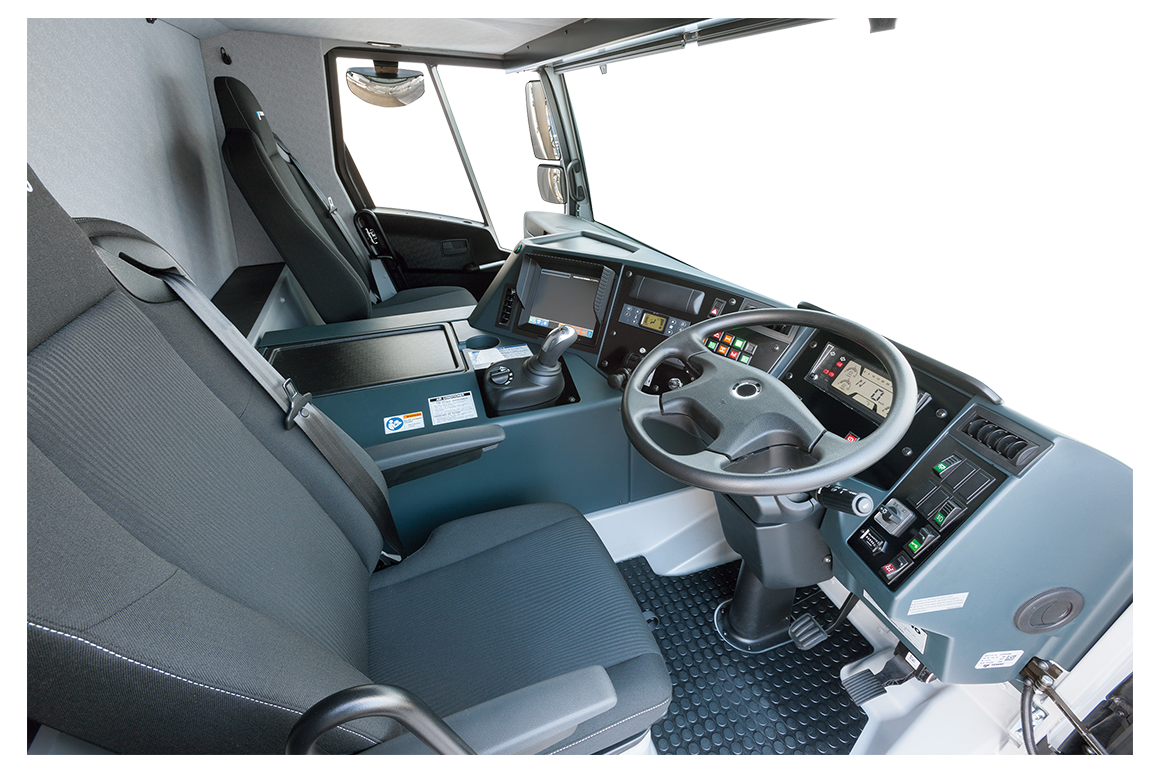

Automatic mechanical transmission
Automatic mechanical transmission has been installed for the driver’s comfort and easier / safer driving.
Smart Chart system
In 1991, ahead of other manufacturers, Tadano introduced a control system that allows safe crane operations in asymmetric outrigger extension setups by way of outrigger extension width detection. This technology evolved into the newly developed Smart Chart, which brings out better crane performance, also while the outriggers are fully extended. The Smart Chart expands the working area shape from a circular cone to a square pyramid, which allows you to get the most of the crane performance in any outrigger extension setups.

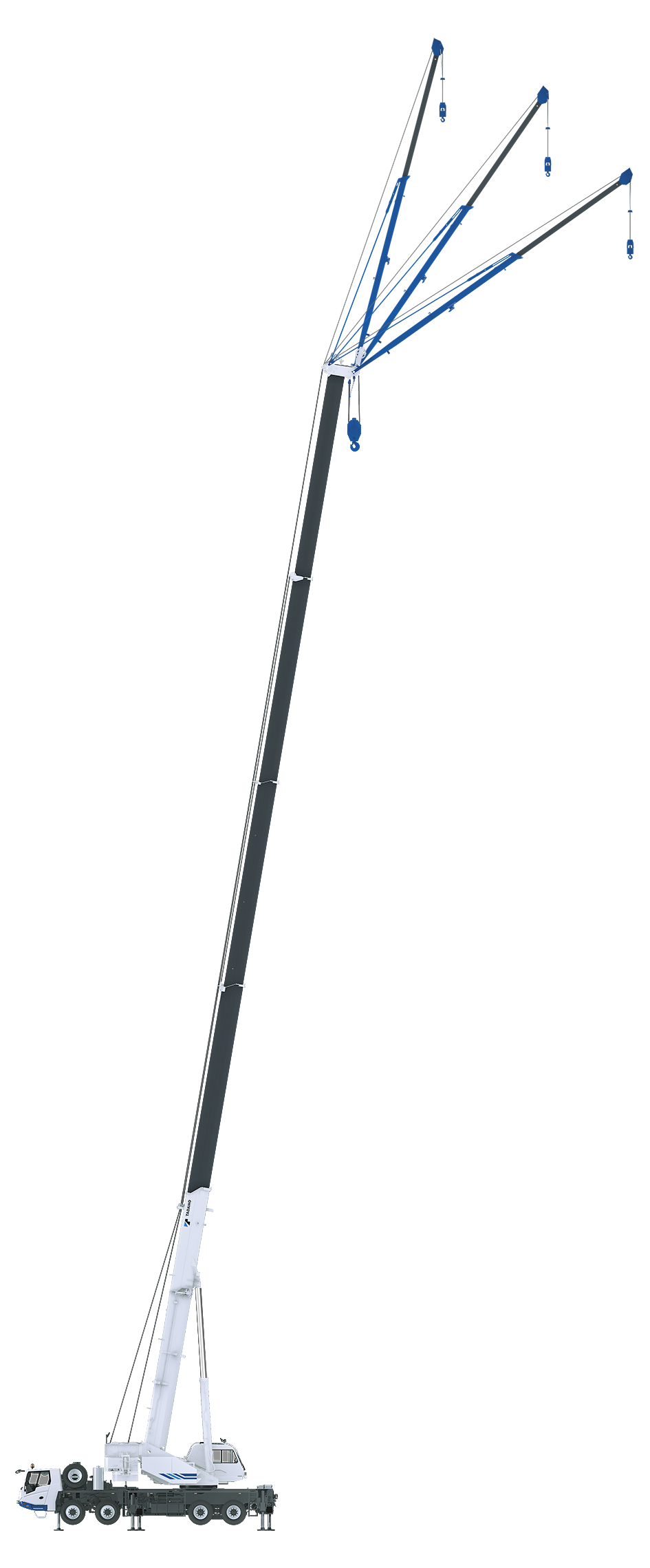

Under-slung jib
A two-stage, side up jib makes installation in narrow spaces possible.
Self-removable counterweight
Counterweight can be hydraulically installed/removed by operating remote controller without the need of a support crane.
Control of asymmetric extension width of outriggers
When operating the crane with the asymmetric outriggers extended, the AML-C automatically detects the extension width of outriggers at the front and rear, and to the left and right of the crane to offer maximum work value through each area.
When slewing the boom from the longer outrigger area to the shorter outrigger area, the AML-C automatically detects the motion and displays the maximum capacity depending on each extension width of the outriggers, and brings the motion to a slow stop before it reaches the limits of the allowed capacity.
Therefore, even if the operator operates the crane without being aware of a change in the capacity, the AML-C monitors it continuously to ensure safe operation.
Hello-Net
Hello-Net is a standard feature used to support our customers’ efficient crane operations straight from your computer or mobile device. The customer can monitor their crane activity, work history, machine position data, and maintenance information. Tadano offers advanced customer support with the Hello-Net system.
Crane
Crane Capacity | Boom | 75t x 2.7m |
---|---|---|
Max. Lifting Height | Boom | 47.3m |
Boom+Jib | 61.2m | |
Max. Load Radius | Boom | 40.0m |
Boom+Jib | 48.0m | |
Boom Length | 12.0m - 47.0m | |
Jib Length | 9.0m/14.3m | |
Extension width of outriggers | Max. | 7.0m |
Mid. | 6.5m, 4.7m | |
Min. | 2.51m |
Carrier
Engine Model | Daimler OM457LA (EURO3) |
---|---|
Max. Output | 260kW(353PS)/ /1,900min-1 |
Max. Traveling Speed | 85km/h |
Drive | 8x4 |
Overall Length | 14,180mm |
Overall Width | 2,800mm |
Overall Height | 3,740mm |
