All Terrain Cranes

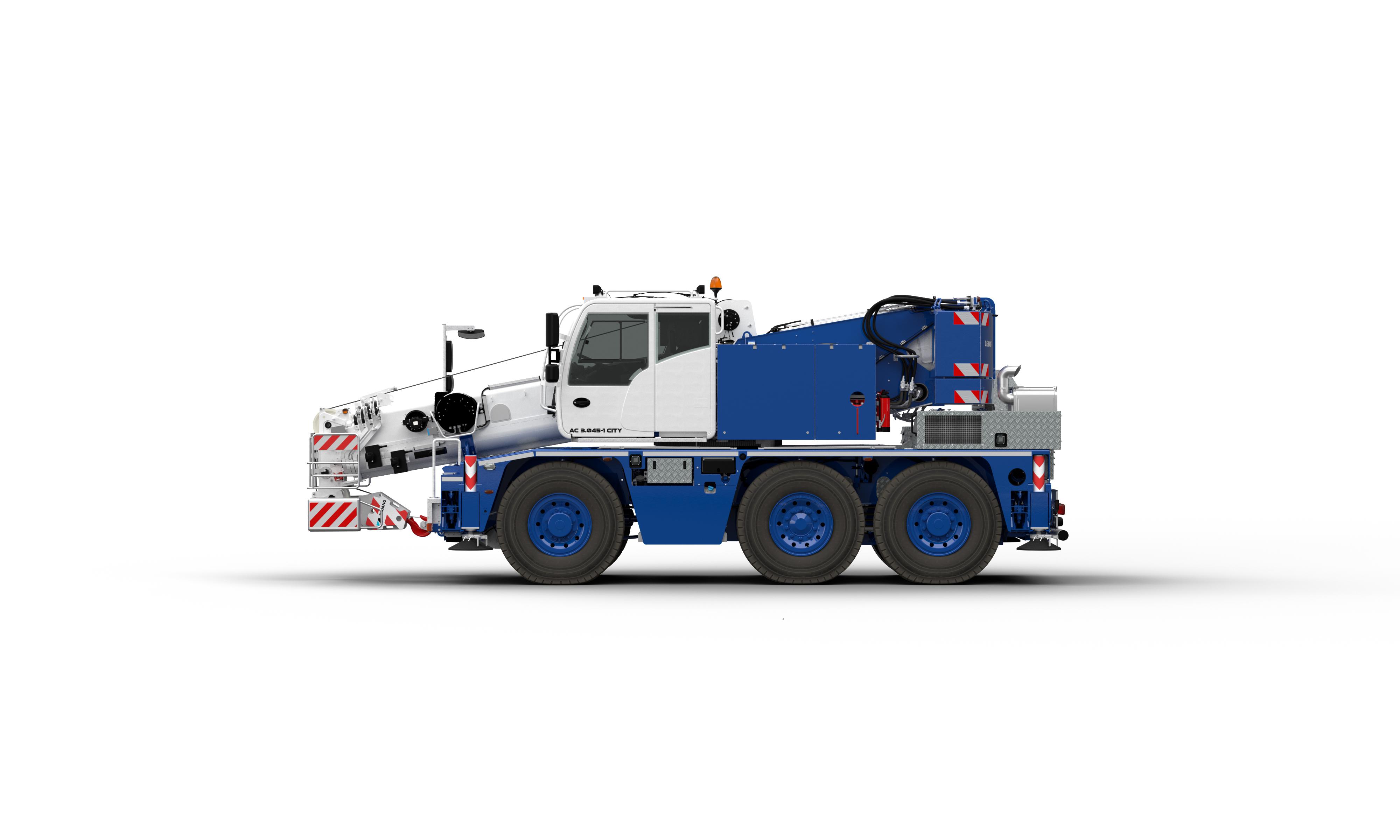

AC 3.045-1 City

Spec Sheet

Product Resources Product Resources Worldwide NetWork Worldwide NetWork Tadano Used Equipment Tadano Used Equipment Contact Us Contact Us
  • Specification

Crane

Max. Lifting Capacity 45t x 2.5m
Max. Tip Height 46.0m
Max. Load Radius 36.0m
Boom Length 7.8m - 31.2m

Carrier

Engine Model Mercedes Benz (EU Stage Ⅴ, Tier 4F)
Max. Output 260 kW (348 HP)
Max Traveling Speed 80km/h
Drive/Steering 6 x 4 x 6 ( 6 x 6 x 6)
Overall Length 11,668mm
Overall Width 2,550mm
Overall Height 3,182mm
