All Terrain Cranes

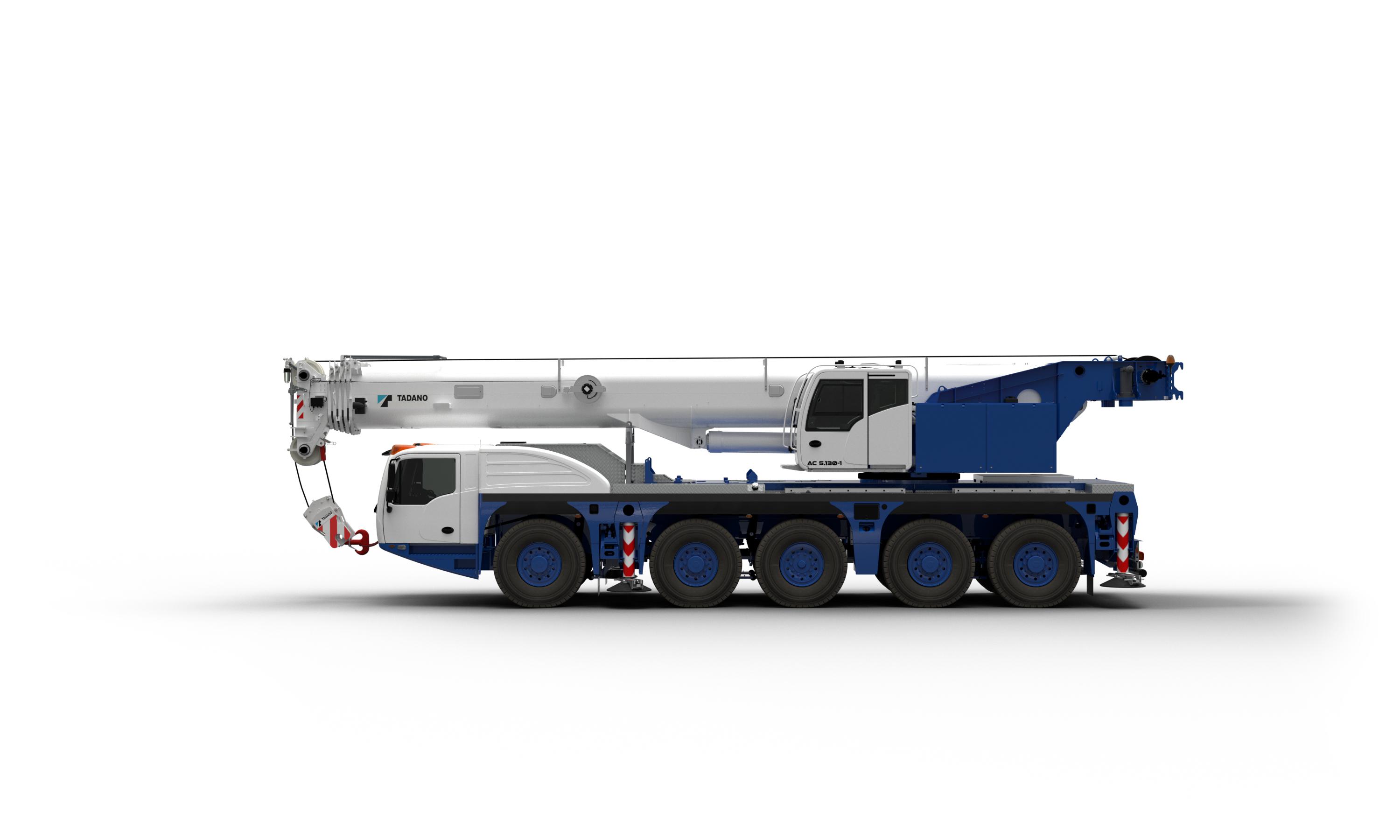

AC 5.130-1

AC 5.130-1
AC 5.130-1
AC 5.130-1

All Terrain Cranes

AC 5.130-1

Spec Sheet

Product Resources Product Resources Worldwide NetWork Worldwide NetWork Tadano Used Equipment Tadano Used Equipment Contact Us Contact Us
  • Specification

Crane

Max. Lifting Capacity 130t x 2.5m
Max. Tip Height 89.0m
Max. Load Radius 62.0m
Boom Length 12.5 m - 59.8 m

Carrier

Engine Model Scania (EU Stage Ⅴ)
Max. Output 405 kW (550 HP)
Max Traveling Speed 85km/h
Drive/Steering 10 x 6 x 10 (10 x 8 x 10)
Overall Length 14,450mm
Overall Width 2,750mm
Overall Height 3,930mm
