All Terrain Cranes

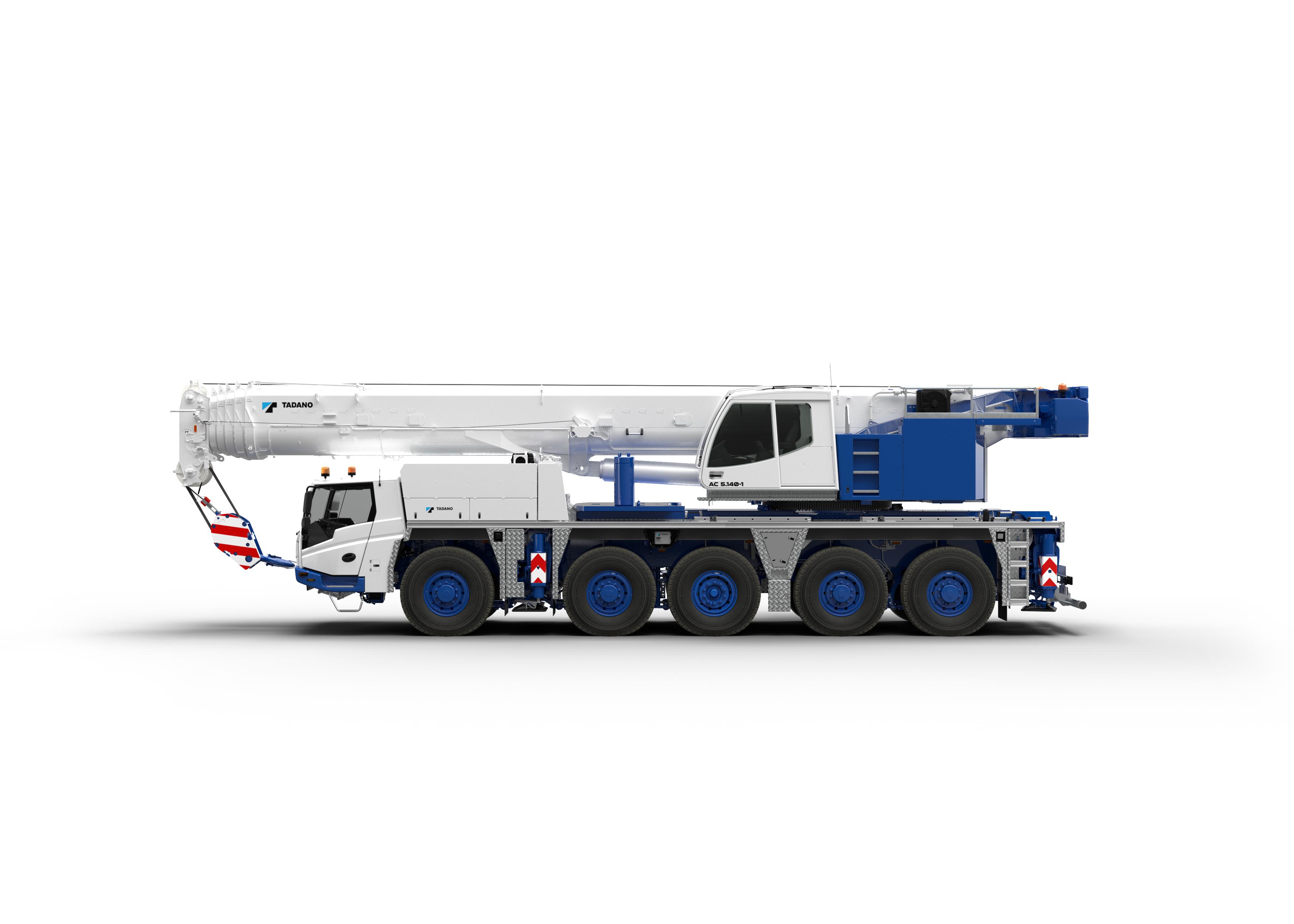

AC 5.140-1

Spec Sheet

Product Resources Product Resources Worldwide NetWork Worldwide NetWork Tadano Used Equipment Tadano Used Equipment Contact Us Contact Us
  • Specification

Crane

Max. Lifting Capacity 140t x 2.5m
Max. Tip Height 95.0m
Max. Load Radius 72.0m
Boom Length 12.8 m - 60.0m

Carrier

Engine Model Mercedes Benz (EU Stage Ⅴ, Tier 4f)
Max. Output Carrier 390 kW (530 HP)
Superstructure 129 kW (175 HP)
Max Traveling Speed 85km/h
Drive/Steering 10 x 6 x 10 (10 x 8 x 10)
Overall Length 14,899mm
Overall Width 2,750mm
Overall Height 3,992mm
