Aerial Work Platforms

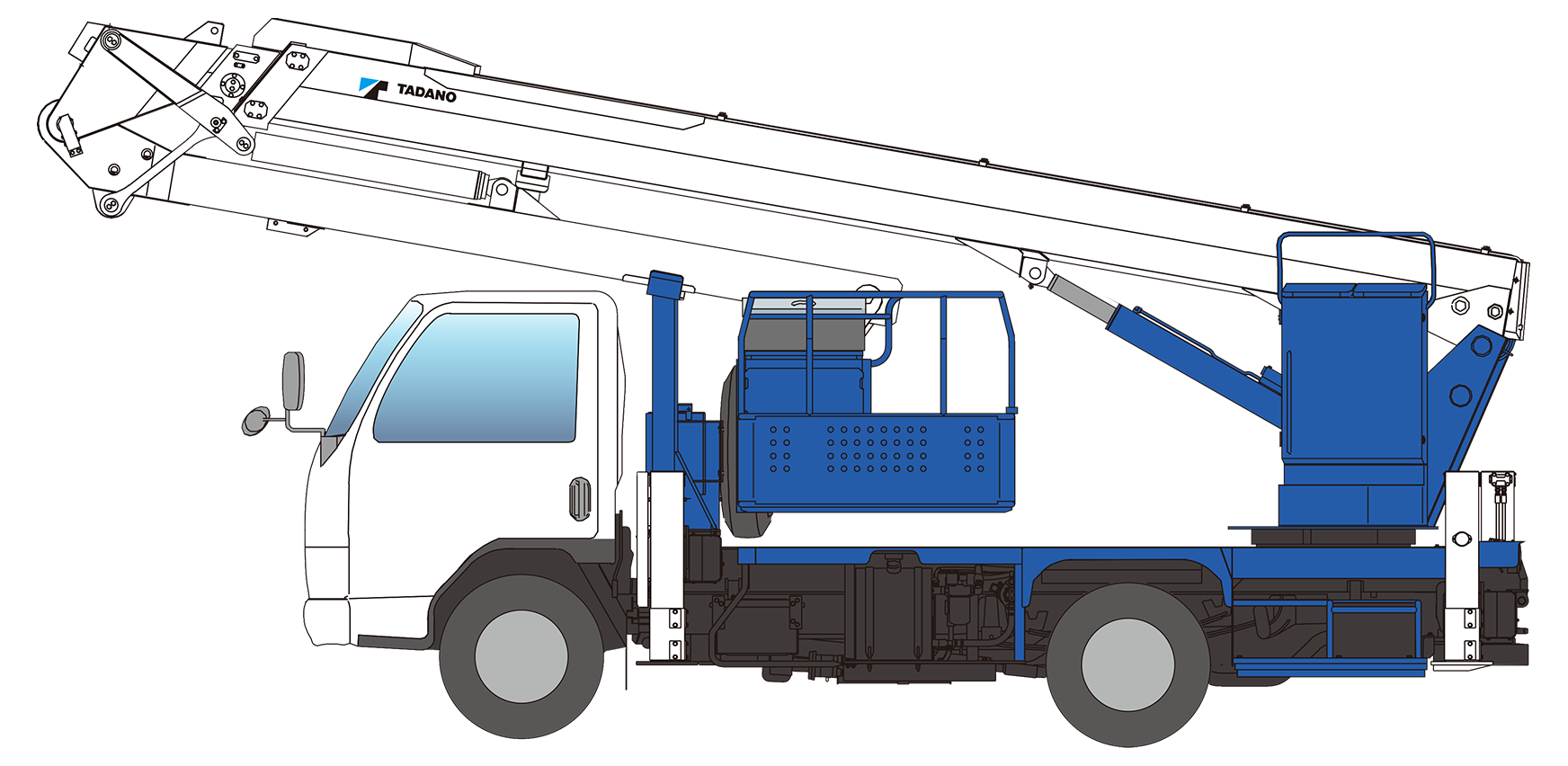

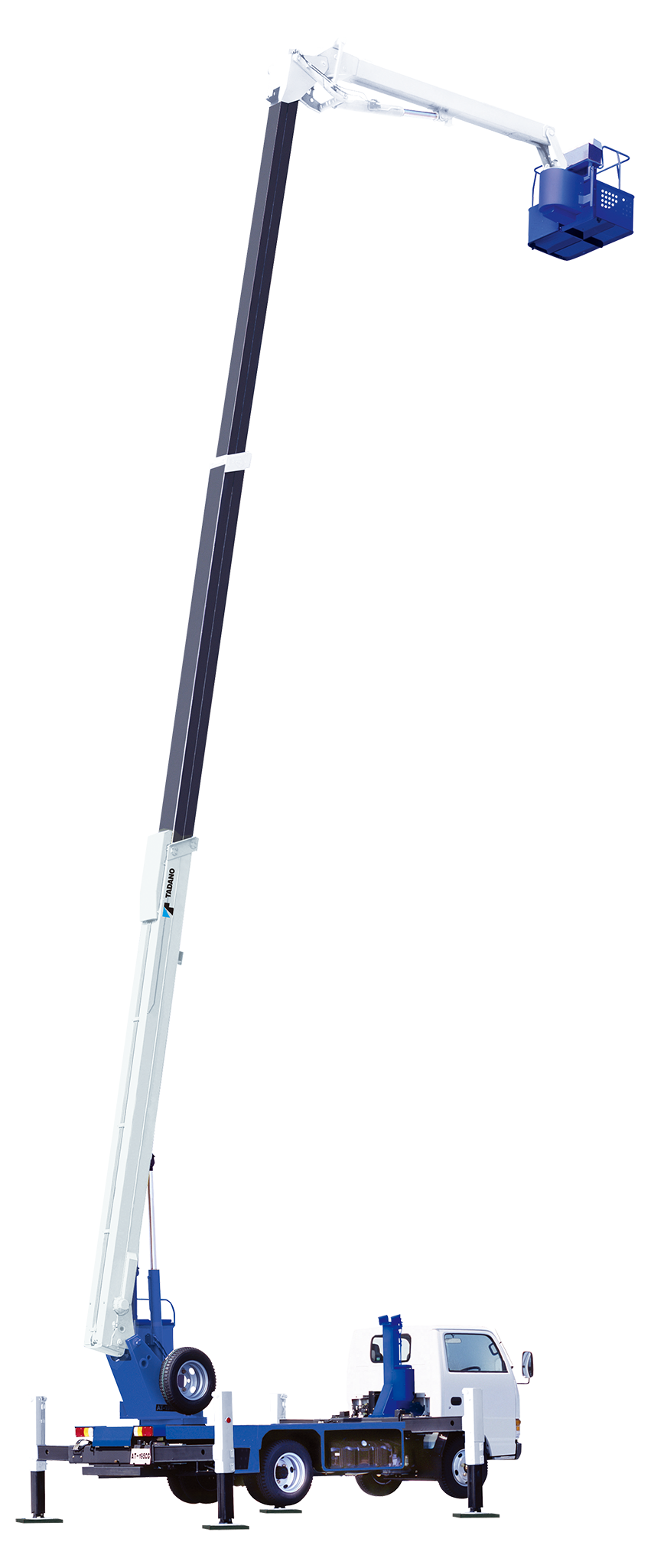

AT-195CG-1
Aerial Work Platforms
AT-195CG-1
Brochure
- Specification
General Purpose Use (Telescopic)
| Max. Basket Loading Capacity | 200kg | |
|---|---|---|
| Material of Basket | Steel | |
| Max. Basket Bottom Height | 19.6m | |
| Max. Basket Bottom Depth | 4.5m | |
| Basket Swing (Slewing) Angle | 190°(Left95°- Right 95°) | |
| Basket Inside Dimensions | 0.7m × 1.2m × 0.95m | |
| Boom Length | Min. Retracted | 6.55m + 3.75m |
| Max. Extended | 15.27m + 3.75m | |
| Elevation | -16° - 80° | |
| Type of boom | Telescopic & Articulating | |
| Extension width of outriggers | Max. | 4.4m |
