Tadano's Equalizer Crane Support protects the truck frame from stress. The crane is mounted to the truck chassis with the Equalizer Crane Support that evenly distributes the load to prevent excessive stress concentration at any one point.
Loader Cranes

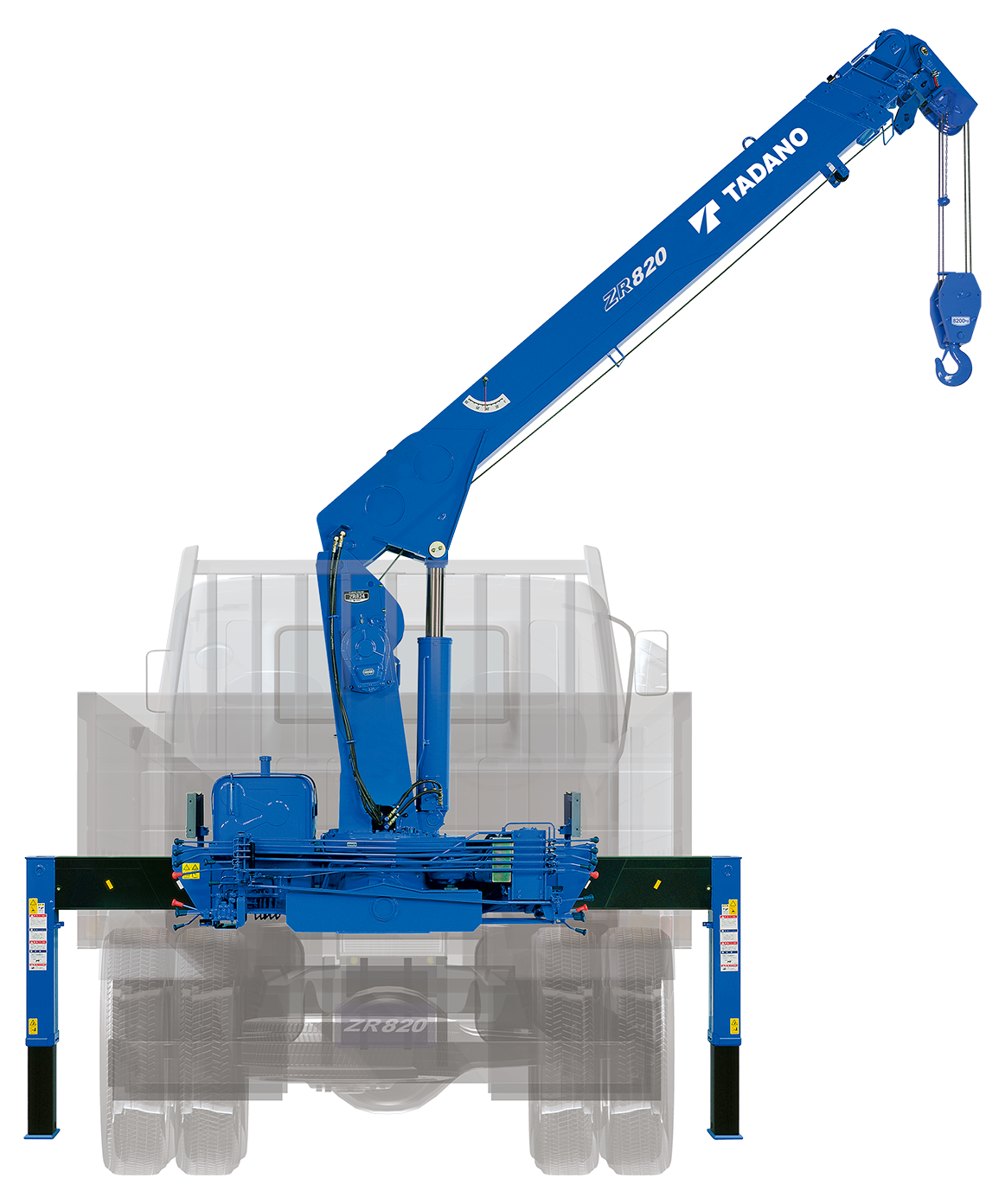

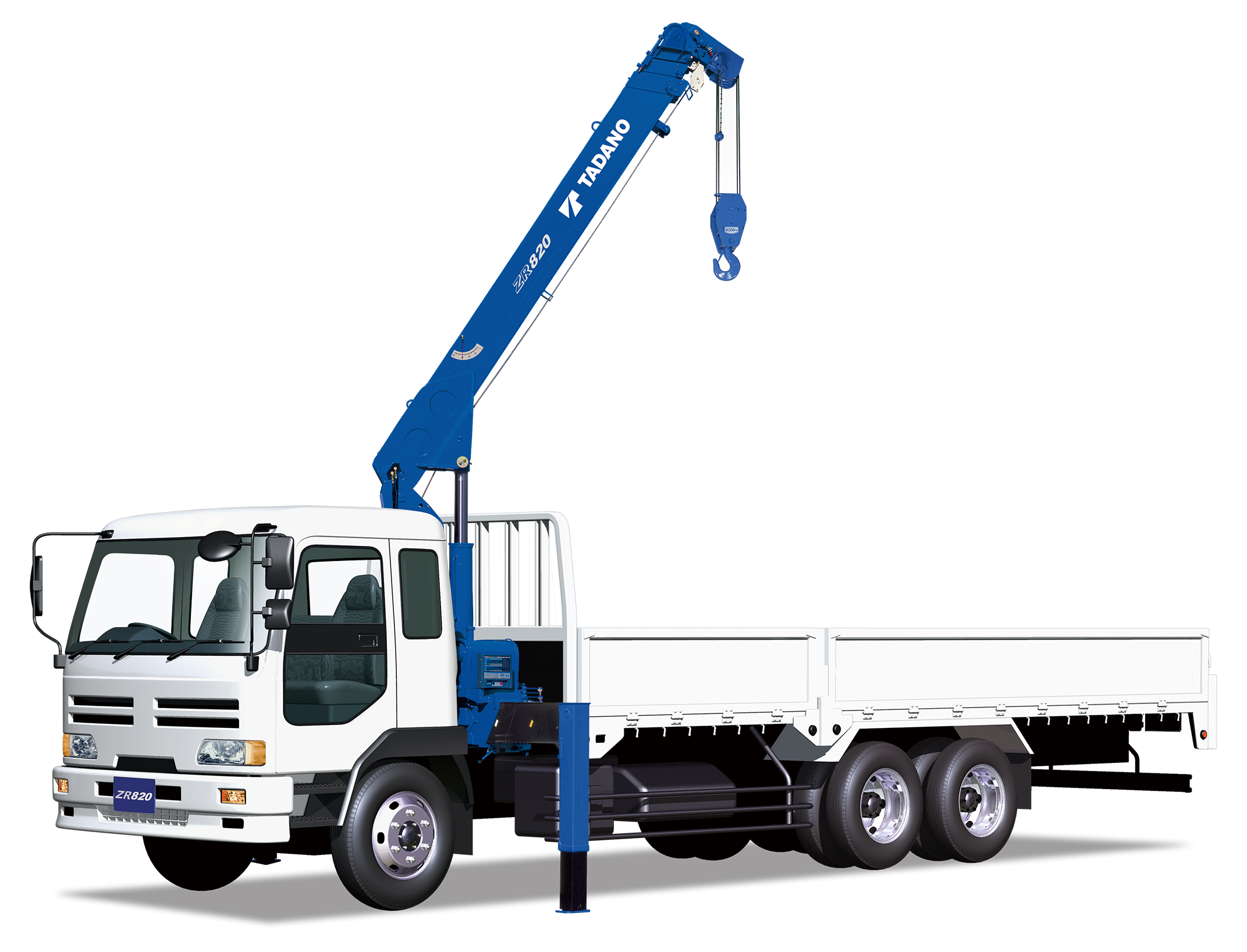

TM-ZR820 series
Loader Cranes
TM-ZR820 series
Brochure
Spec Sheet
Three-point support system
Full circle, continuous slewing
The newly designed compact slewing post improves performance providing FULL CIRCLE, continuous rotation for more efficient operations.
AUTOMATIC SLEWING LOCK: The boom is mechanically locked at the slewing post base which prevents boom rotation during traveling.
Crane
| TM-ZR825 (S) | TM-ZR824 (S) | TM-ZR823 (S) | ||
|---|---|---|---|---|
| Max. Lifting Capacity | 8,200kg x 1.8m (6-part lines) | 8,200kg x 1.8m (6-part lines) | 8,200kg x 1.8m (6-part lines) | |
| Crane Capacity | 4,900kg x 3.1m (4-part lines) | 4,900kg x 3.1m (4-part lines) | 4,900kg x 3.1m (4-part lines) | |
| Section | 5 | 4 | 3 | |
| Max. Lifting Height | 17.8m | 14.7m | 11.3m | |
| Max. Load Radius | 15.67m | 12.66m | 9.25m | |
| Boom Length | 4.40m - 15.92m | 4.31m - 12.91m | 4.20m - 9.50m | |
| Slewing | Continuous 360° | Continuous 360° | Continuous 360° | |
| Extension width of outriggers | Max. | 3.90m | 3.90m | 3.90m |
| Mid. | 3.10m | 3.10m | 3.10m | |
| Min. | 2.25m | 2.25m | 2.25m | |
