Telescopic Boom Crawler Cranes

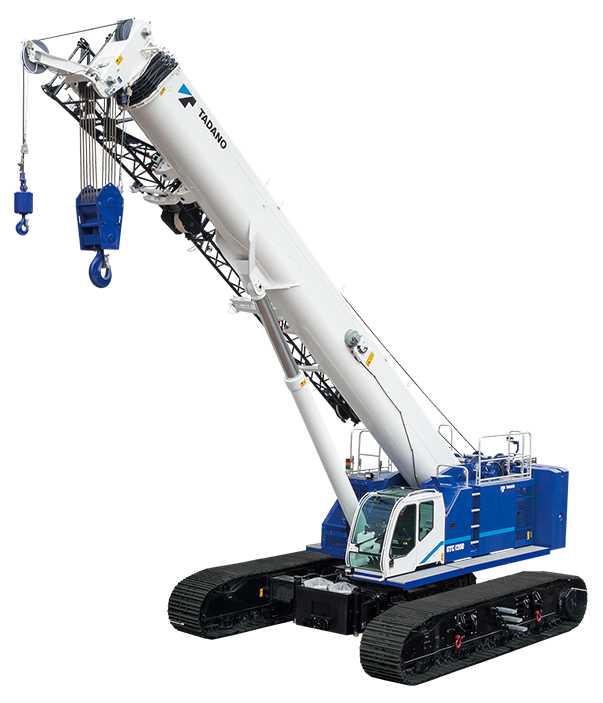

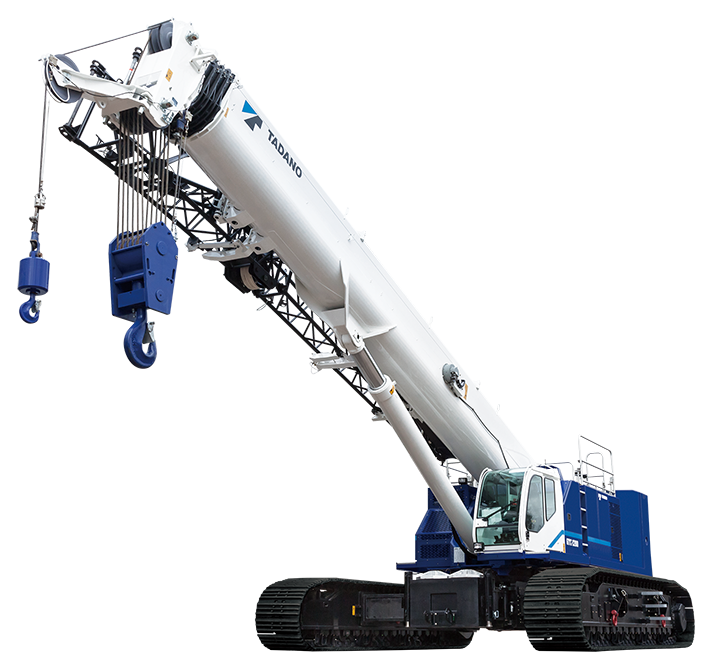

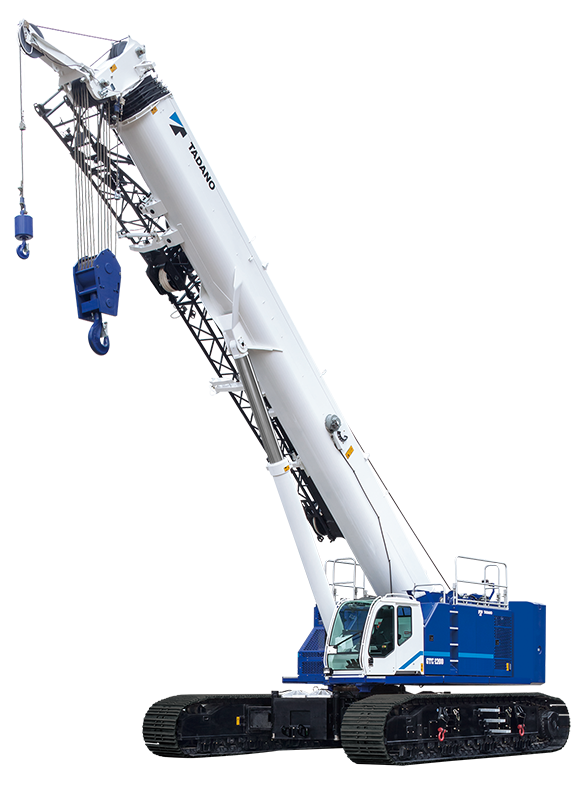

GTC-1200

Brochure

Spec Sheet

The ultimate boom

The ultimate boom

47.2m long boom and enhanced lifting capacity were achieved while retaining the heavy duty boom structure and the genuine pick and carry design.

Jib interlock system

Jib interlock system

Interlock jib pinning system ensures safer and quicker jib mounting and stowing procedure.

360° positive slewing lock

360° positive slewing lock

Operator can lock the slewing brake at any desired position from the cab.

Maintenance reminder function

Maintenance reminder function

Operator can preset the maintenance reminder function on the control screen by selecting the required maintenance items and engine hours from 50 hours up to 2,000 hours.

Winch and Rear/Side View Color Monitor

Winch and Rear View Color Monitor
Winch and Side View Color Monitor

Cameras for winch and rear/side views are installed for safety.

3D Lift Plan*

3D Lift Plan

Customize 3D lift simulation at your fingertips for FREE**. Easy access and user friendly webpage allows you to calculate crane configurations and ground bearing pressure simultaneously. Moreover, you can print out detailed configurations and 3D graphics to further support your work preparation.

*3D Lift Plan is a product of A1A Software LLC.
**Advanced customize functions will be extra.

Self-removable counterweight

Self-removable counterweight

Counterweight can be hydraulically installed/removed by operating remote controller without the need of a support crane.

Easy track frame removal system

Easy track frame removal system

Track frames and track extend beams can be easily unlocked and locked without the need of tools or heavy lifting by our patented system.

Crane

Crane Capacity Boom 120t x 3.0m
Max. Lifting Height Boom+Jib 79.0m
Boom Length 12.8m - 47.2m
Jib Length 3.8m / 10.2m / 18.0m / 32.0m

Carrier

Engine Model Cummins QSL
Max. Output 261kW(350PS)/2,100min-1
Max. Traveling Speed 0.8km/h(Low)2.6km/h(High)
Overall Length 15.8m
Overall Width (Tracks Extended) 5.8m
Overall Width (Tracks Retracted) 3.66m
Overall Width (Tracks Removed) 2.97m
Overall Height Transport Configlation 3.23m
Working Configlation 4.5m
