The 4-section 35.2m rounded boom is made of high tensile steel, which allows for decreased boom weight and increased boom strength.
All Terrain Cranes
ATF40G-2
All Terrain Cranes
ATF40G-2
Spec Sheet

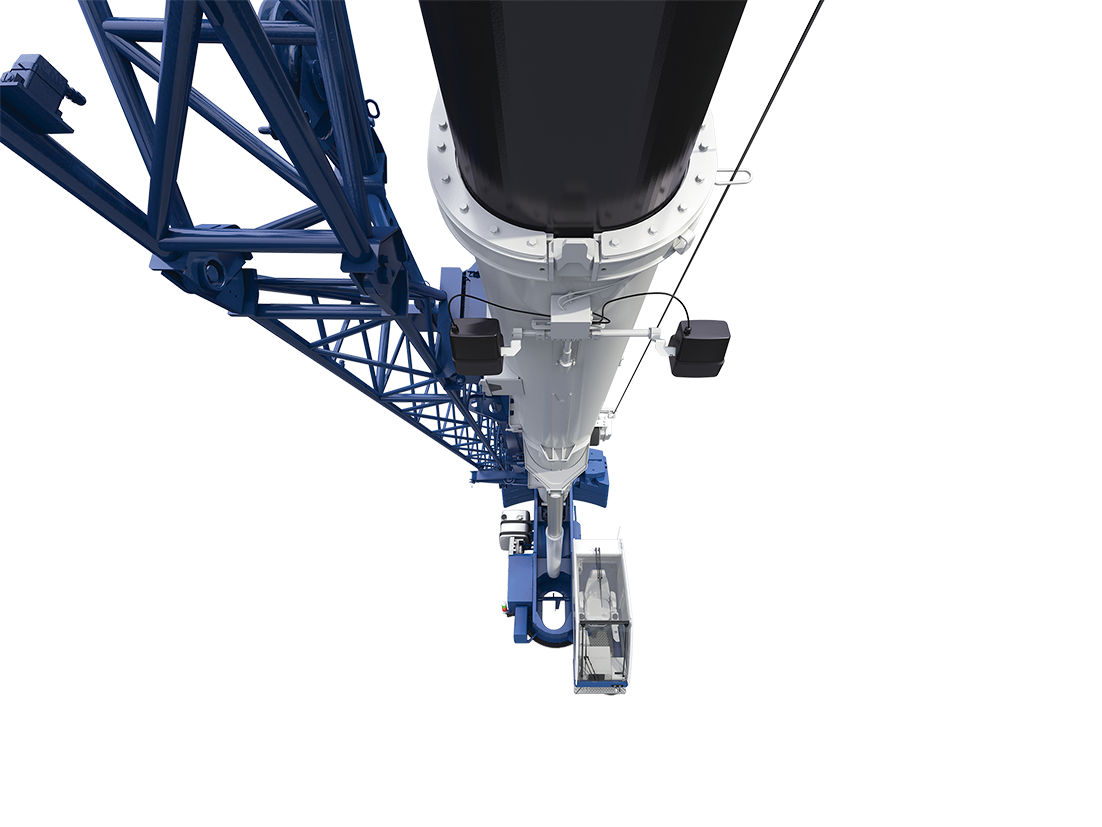

The ultimate boom
-P-001.png)

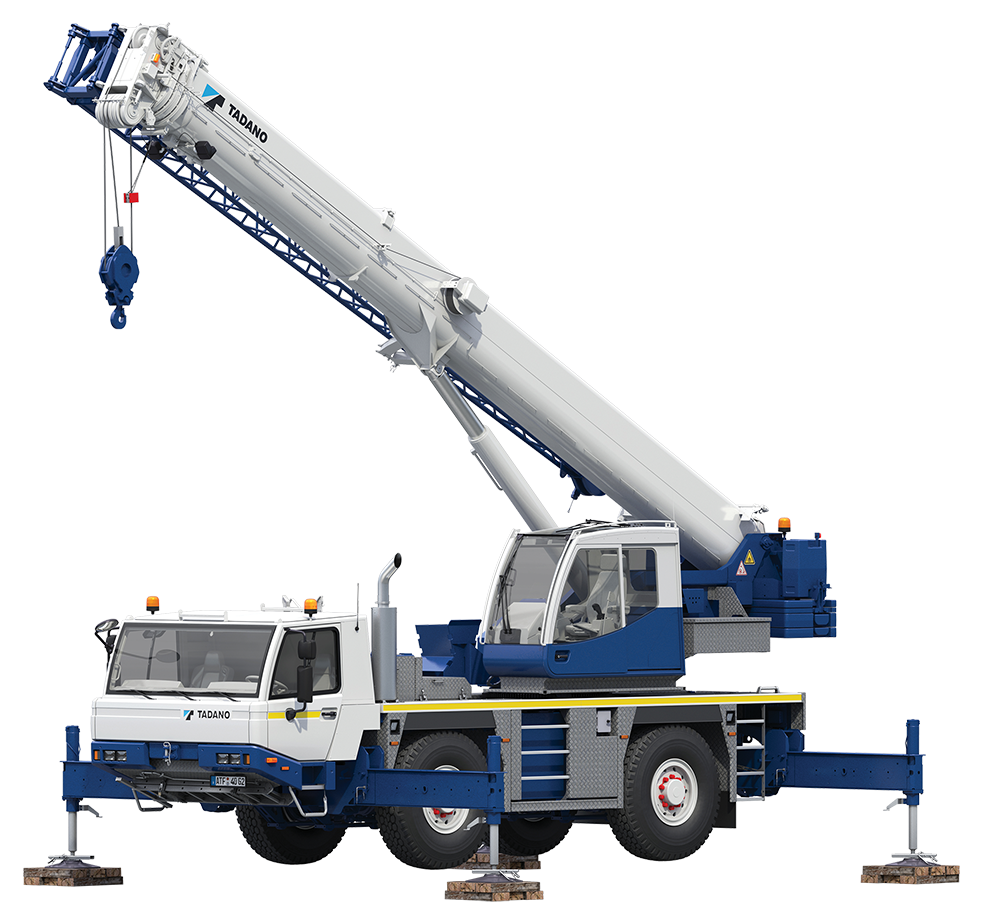

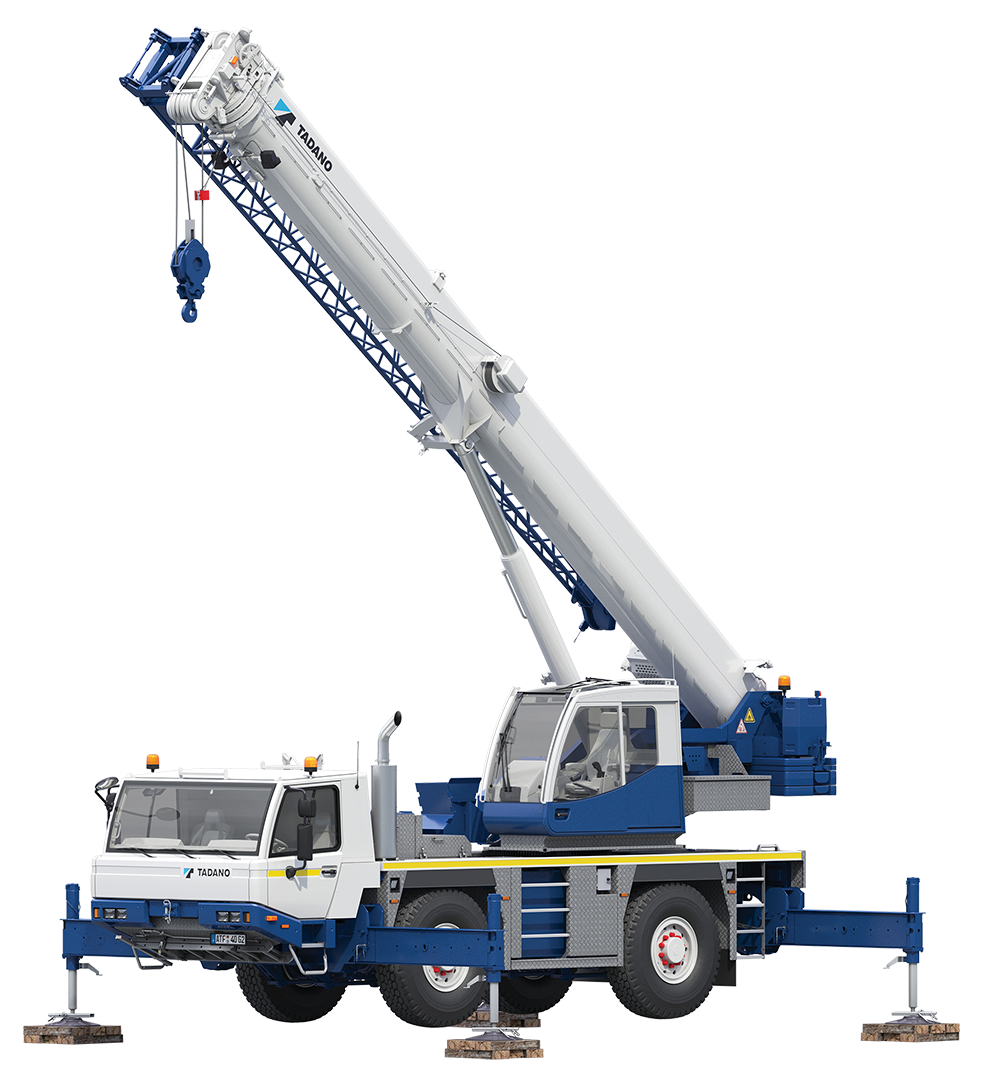

Control of asymmetric extension width of outriggers
When operating the crane with the asymmetric outriggers extended, the AML automatically detects the extension width of outriggers at the front and rear, and to the left and right of the crane to allow maximum work capacity in each area. When slewing the boom from the longer outrigger area to the shorter outrigger area, the AML automatically detects the motion and displays the maximum capacity depending on each of the extension widths of outriggers, and brings the motion to a slow stop before it reaches the limits of the allowed capacity. Therefore, even in the case of operator error, the AML's slow stop function will help to minimize any safety risk.
Crane
| Max. Lifting Capacity | Boom | 40t x 2.5m |
|---|---|---|
| Max. Lifting Height | Boom | 35.5m |
| Boom+Jib | 45.0m | |
| Max. Load Radius | Boom | 32.0m |
| Boom+Jib | 38.0m | |
| Boom Length | 10.45m - 35.2m | |
Carrier
| Engine Model | Mercedes Benz (Euromot III A / EPA III) | |
|---|---|---|
| Max. Output | Carrier | 205 kW (279 HP) |
| Max Traveling Speed | 85km/h | |
| Drive/Steering | 4 x 4 x 4 | |
| Overall Length | 11,031mm | |
| Overall Width | 2,550mm | |
| Overall Height | 3,551mm | |
