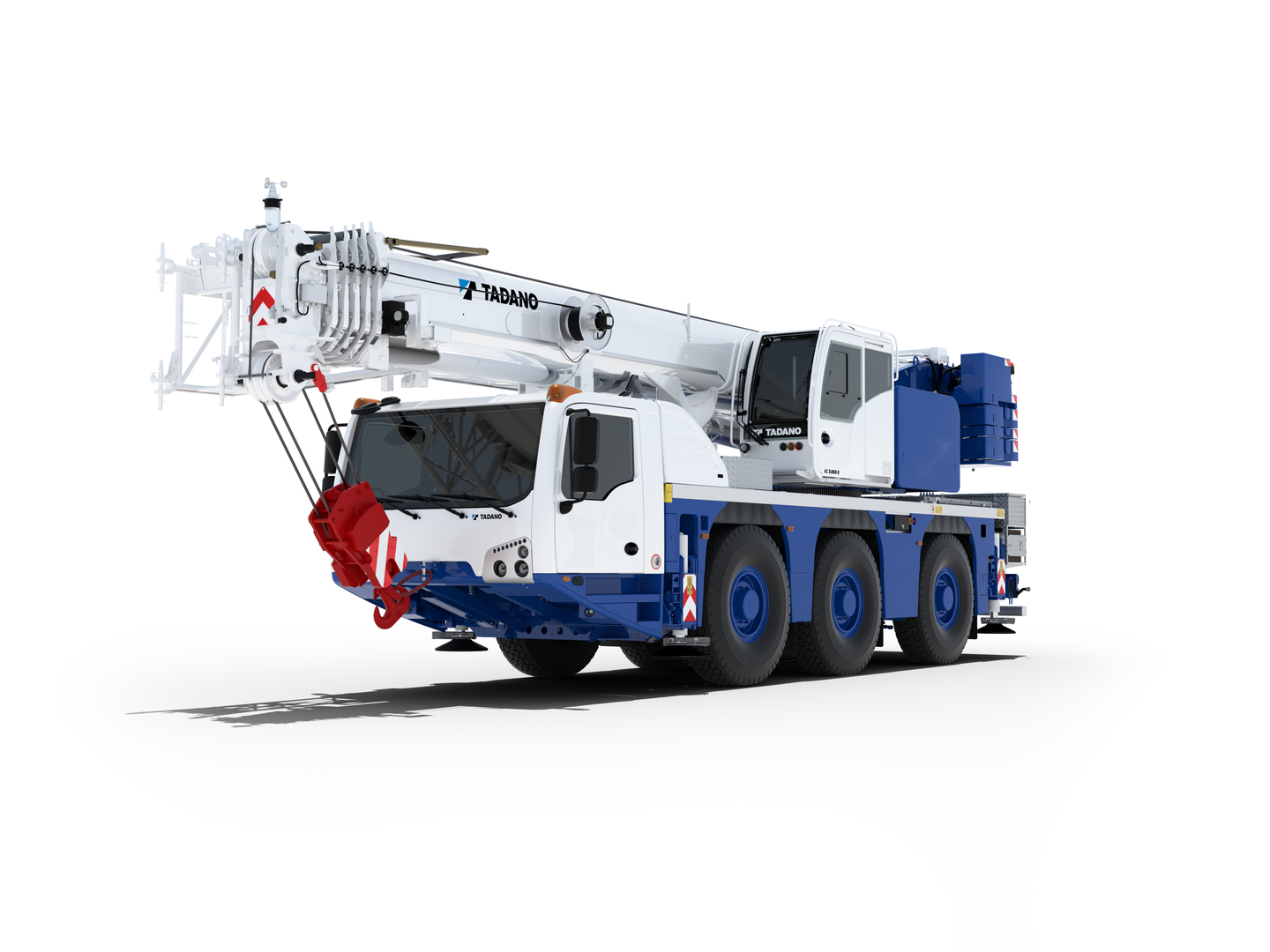

AC 3.060-2
The AC 3.060-2 is a compact yet powerful all-rounder, designed to deliver exceptional performance, flexibility, and efficiency for everyday lifting tasks.
Compare products
Product Specs
- Max. Crane Capacity 65 USt
- Main Boom Length 34.1 ft – 164.0 ft
- Boom Extension 5.9 ft / 21.3 ft / 27.9 ft – 52.5 ft
- Max. Tip Height 223.0 ft
- Max. Counterweight 28,700 lbs
- Outrigger Bases 21.4 ft x 22.8 ft
- Hoist Line Pull 15,040 lbf
- MAX Radius 150.9 ft
- Dimensions L: 38.4 ft W: 8.4 ft H: 12.2 ft
- Max. Crane Capacity 60 t
- Main Boom Length 10.4 m – 50 m
- Boom Extension 1.8 m / 6.5 m / 8.5 m – 16 m
- Max. Tip Height 69 m
- Max. Counterweight 13.0 t
- Outrigger Bases 6.91 m x 6.50 m
- Hoist Line Pull 6.8 t
- Max. Radius 46 m
- Dimensions L: 11.69 m W: 2.55 m H: 3.71 m
- Axles 3
- Engine Deutz
- Drive 6 x 4 x 6 (6 x 6 x 6)
Product description
Compact Power. Maximum Versatility.
The AC 3.060-2 delivers outstanding performance in a compact package. With a 50‑meter main boom and a maximum system length of 69 meters, it sets best-in-class standards for lifting at steep boom angles. Its strong load capacities make it ideal for lifting heavy loads over obstacles or working efficiently at height in urban and industrial environments.
A key highlight is its exceptional line pull of up to 6.7 tonnes on a single line and up to 20 tonnes with triple reeving on the single‑sheave hook block. This allows faster setup, reduced reeving effort, and greater safety—perfectly suited for taxi crane operations and multi-job workdays.
Designed for maximum flexibility, the AC 3.060-2 operates within a 12‑tonne axle load configuration while carrying essential equipment. On site, its compact dimensions and unrivalled low clearance height of just 3.71 meters make it the ideal choice for confined spaces, halls, and inner‑city projects.
The AC 3.060-2 delivers outstanding performance in a compact package. With a 164-ft main boom and a maximum system length of 226 ft, it sets best-in-class standards for lifting at steep boom angles. Its strong load capacities make it ideal for lifting heavy loads over obstacles or working efficiently at height in urban and industrial environments.
A key highlight is its exceptional line pull of up to 7.4 U.S. tons on a single line and up to 22.0 U.S. tons with triple reeving on the single-sheave hook block. This allows faster setup, reduced reeving effort, and greater safety—perfectly suited for taxi crane operations and multi-job workdays.
Designed for maximum flexibility, the AC 3.060-2 operates within a 13.2-ton axle load configuration while carrying essential equipment. On site, its compact dimensions and unrivalled low clearance height of just 12.2 ft make it the ideal choice for confined spaces, buildings, and downtown projects.
Advanced features such as the IC‑1 Plus crane control system with capacity radar, Flex Base stepless outrigger positioning, and optional Surround View cameras ensure precise, safe, and efficient operation. The AC 3.060-2 reflects Tadano’s commitment to performance, safety, and versatility in a highly economical all‑round crane.
