When mounting and stowing the fly jib, two assist hydraulic cylinders ensure safe and efficient operation.

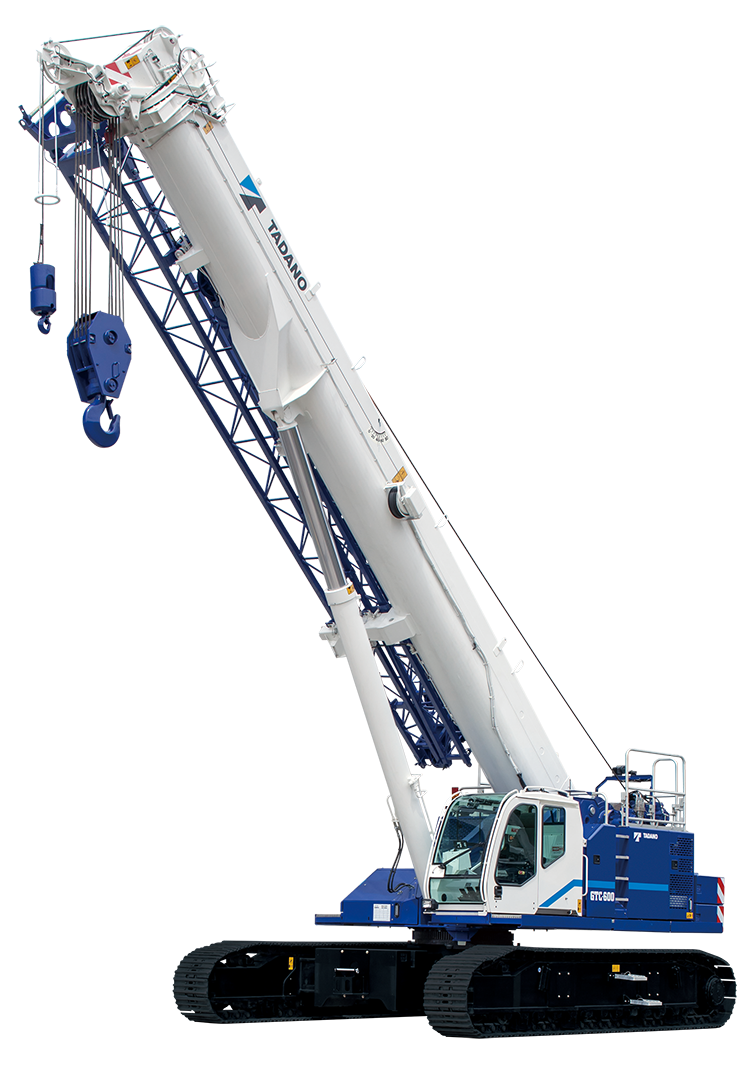

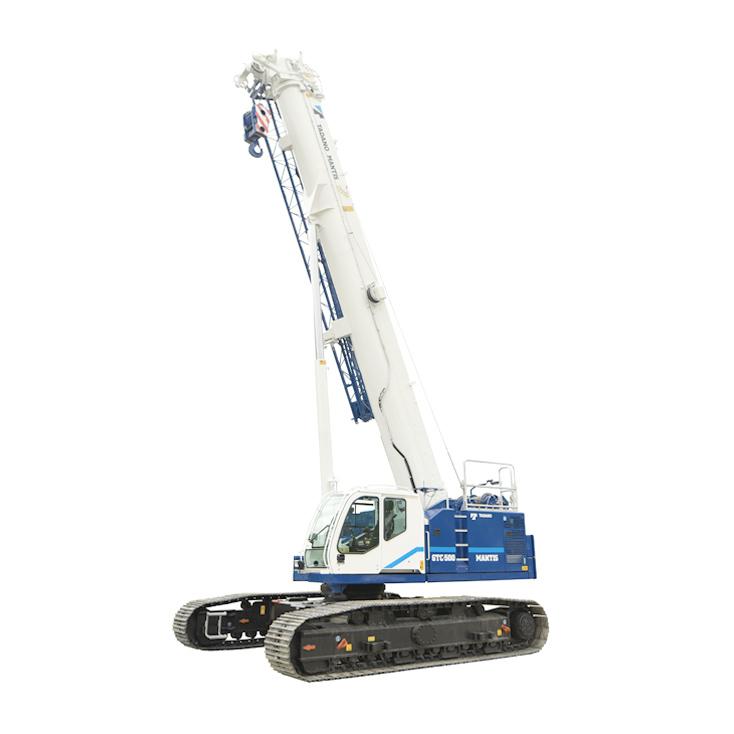

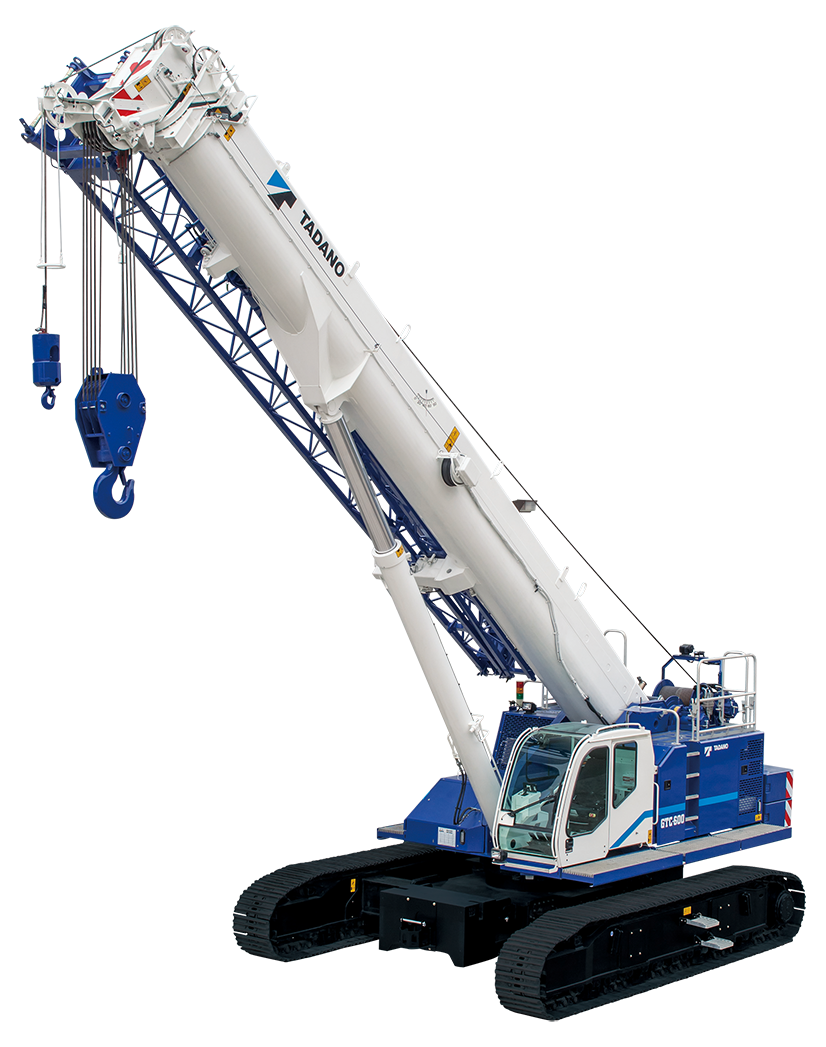

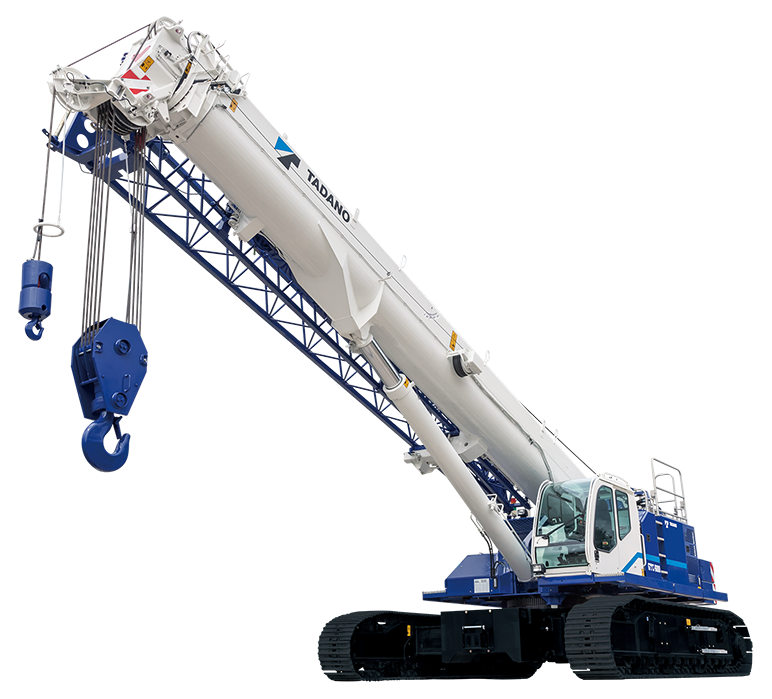

Telescopic Boom Crawler Cranes
Assist cylinders for jib
Optimized lifting performance for reduced width configurations. Reduced width, asymmetric track setup can give significant capacity improvements when compared to symmetrical track width settings.
Counterweight can be hydraulically installed/removed by operating remote controller without the need of a support crane.
Easy track frame removal system
Track frames and track extend beams can be easily unlocked and locked without the need of tools or heavy lifting by our patented system.
3D Lift Plan*
Customize 3D lift simulation at your fingertips for FREE**. Easy access and user friendly webpage allows you to calculate crane configurations and ground bearing pressure simultaneously. Moreover, you can print out detailed configurations and 3D graphics to further support your work preparation.
*3D Lift Plan is a product of A1A Software LLC. **Advanced customize functions will be extra.
Hello-Net is a standard feature used to support our customers’ efficient crane operations straight from your computer or mobile device. The customer can monitor their crane activity, work history, machine position data, and maintenance information. Tadano offers advanced customer support with the Hello-Net system.
|Crane Capacity||Boom||70t x 2.5m|
|Max. Lifting Height||Boom+Jib||47.6m/55.5m|
|Boom Length||11.5m - 36.0m|
|Jib Length||10.1m / 17.7m|
|Engine Model||Cummins QSB6.7|
|Max. Traveling Speed||1.3km/h(Low)4.0km/h(High)|
|Overall Width (Tracks Extended)||4.92m|
|Overall Width (Tracks Retracted)||3.27m|
|Overall Width (Tracks Removed)||2.95m|
|Overall Height||Transport Configlation||3,27m|
