Unique capacity class in the range between 130t and 220t.
Load moment of 590tm.
Strong lifting charts also in out-of-level conditions (up to 4°).
All chart are also for pick & carry operations.
26mm hoist rope with 13.9t line pull.
Telescopic Boom Crawler Cranes
GTC-2000
Telescopic Boom Crawler Cranes
GTC-2000
Spec Sheet
Former model name: GTC-1800EX
News release regarding harmonizing GTC model names
News release regarding harmonizing GTC model names
Crane capacity
Transportability and rigging
Only one exceptional load (base crane 47t, 3x3m).
Other items can be transported on 4 or 5 standard trailers.
100% self rigging.

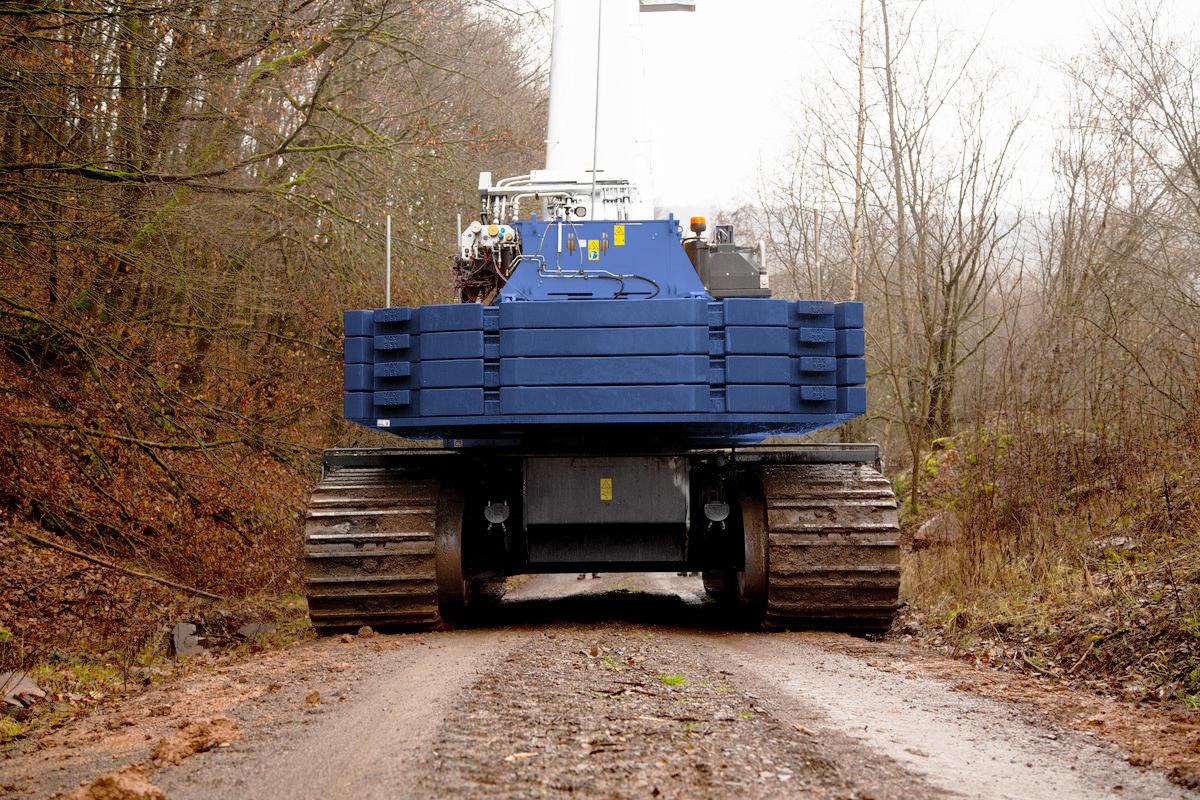

Undercarriage: robust and efficient
1,450kN (150t) traction force.
Stepless track width extension.
Smooth and efficient crane control system
Life determination of max capacity class based on track extension, ground inclination, slewing position, etc.
Best in Class ergonomics and access
Crane
| Crane Capacity | Boom | 200.0t x 2.5m |
|---|---|---|

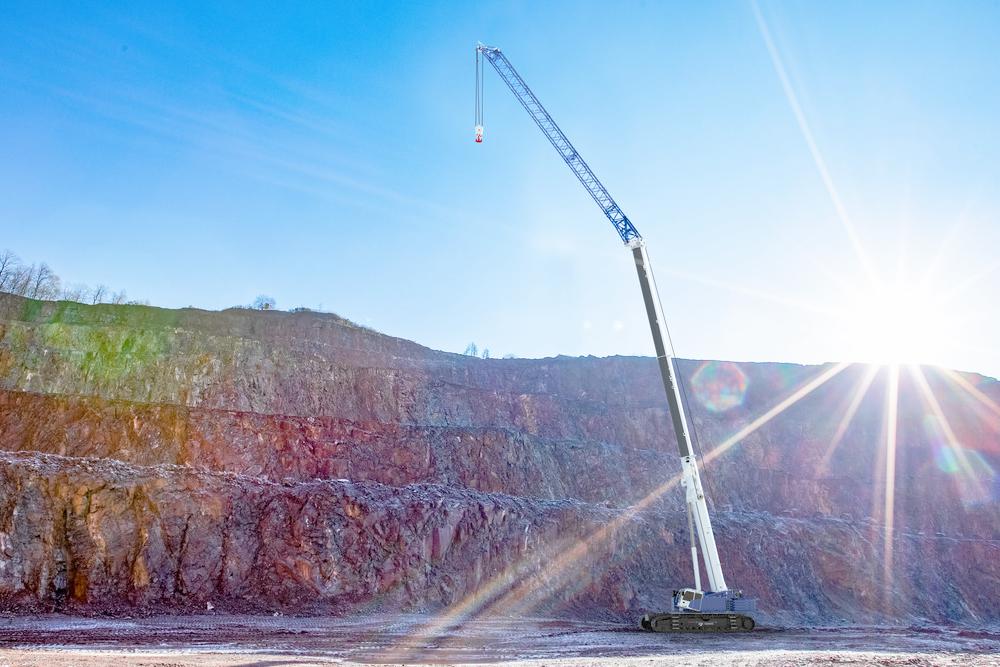

| Max. Sheave Height | Boom+Jib | 85.0m |
| Boom Length | 12.9m - 60.0m | |
| Jib Length | 5.0m / 11.0m / 17.0m / 23.0m
Offsetable from 0° to 36° Mech and full hydraulic |
|
| Line Pull | 13.9t | |
Base Crane
| Engine Model | Mercedes-Benz OM 936 LA | |
|---|---|---|
| Max. Output | 230kW(308PS)/1,800min-1 | |
| Max. Traveling Speed | 2.3km/h | |
| Traction Froce | 1,450kN | |
| Track width Extension | Stepless from 3.5m to 6m
(center line to center line) |
|
Size & Transportability
| Overall Length | 15.58m | |
|---|---|---|
| Overall Width (Tracks Extended) | 7.32m | |
| Overall Width (Tracks Retracted) | 4.82m | |
| Overall Width (Tracks Removed) | 2.99m | |
| Overall Height | Transport Configlation | 3.03m |
| Working Configlation | 3.5m | |
| Operating weight | up to 150t | |
