PM 47.5 PX / PX C
The Tadano PM 47.5 PX / PX C series combines impressive lifting capability with flexible reach options, helping operators match crane performance to demanding on-site requirements.
Series Specs
| PM 47522 PX | PM 47523 PX | PM 47524 PX | PM 47525 PX | PM 47526 PX | PM 47522 PX C | PM 47523 PX C | PM 47524 PX C | PM 47525 PX C | PM 47526 PX C | |
|---|---|---|---|---|---|---|---|---|---|---|
| Spec Sheet |  | | | | | | | | | |
| Max. Pressure | 33 MPa | 33 MPa | 33 MPa | 33 MPa | 33 MPa | 34 MPa | 34 MPa | 34 MPa | 34 MPa | 34 MPa |
| Fuel Tank Capacity | 200 l | 200 l | 200 l | 200 l | 200 l | 200 l | 200 l | 200 l | 200 l | 200 l |
| Max. Lifting Moment | 41,9 TM | 40,4 TM | 39,9 TM | 38,9 TM | 38,4 TM | 39,9 TM | 38,8 TM | 37,6 TM | 36,8 TM | 36,1 TM |
| Hydraulic Horizontal Outreach | 7,95 m | 9,60 m | 11,75 m | 14,00 m | 16,35 m | 7,00 m | 8,65 m | 10,80 m | 13,05 m | 15,40 m |
| Hydraulic Vertical Outreach | 12,75 m | 14,30 m | 16,35 m | 18,45 m | 20,70 m | 11,25 m | 12,85 m | 15,00 m | 17,20 m | 19,50 m |
| Recommended oil flow | 40-80 l/min | 40-80 l/min | 40-80 l/min | 40-80 l/min | 40-80 l/min | 40-80 l/min | 40-80 l/min | 40-80 l/min | 40-80 l/min | 40-80 l/min |
| Slewing torque | 53 kN m | 53 kN m | 53 kN m | 53 kN m | 53 kN m | 53 kN m | 53 kN m | 53 kN m | 53 kN m | 53 kN m |
| Stabilizer Spread available | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m | 6,6 – 8.0 m |
| Slewing angle | 395° | 395° | 395° | 395° | 395° | 395° | 395° | 395° | 395° | 395° |
| Stabilizer control Radio Wireless | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual | Manual |
| Max. Lifting Moment | 302700 ft Ibs | 291860 ft Ibs | 288460 ft Ibs | 281310 ft Ibs | 277740 ft Ibs | 288710 ft Ibs | 280350 ft Ibs | 271840 ft Ibs | 265810 ft Ibs | 261100 ft Ibs |
| Hydraulic Horizontal Outreach | 26′ 1″ | 31′ 6″ | 38′ 7″ | 45′ 11″ | 53′ 8″ | 23′ | 28′ 5″ | 35′ 5″ | 42′ 10″ | 50′ 6″ |
| Width | 1330 mm | 1330 mm | 1330 mm | 1330 mm | 1420 mm | 1330 mm | 1330 mm | 1330 mm | 1330 mm | 1420 mm |
| Width | 4′ 4″ | 4′ 4″ | 4′ 4″ | 4′ 4″ | 4′ 8″ | 4′ 4″ | 4′ 4″ | 4′ 4″ | 4′ 4″ | 4′ 8″ |
| Height | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm | 2500 mm |
| Height | 8′ 2″ | 8′ 2″ | 8′ 2″ | 8′ 2″ | 8′ 2″ | 8′ 2″ | 8′ 2″ | 8′ 2″ | 8′ 2″ | 8′ 2″ |
| Length | 2550 mm | 2550 mm | 2550 mm | 2550 mm | 2550 mm | 2550 mm | 2550 mm | 2550 mm | 2550 mm | 2550 mm |
| Length | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ | 8′ 4″ |
Product description
Powerful Lifting. Versatile Reach.

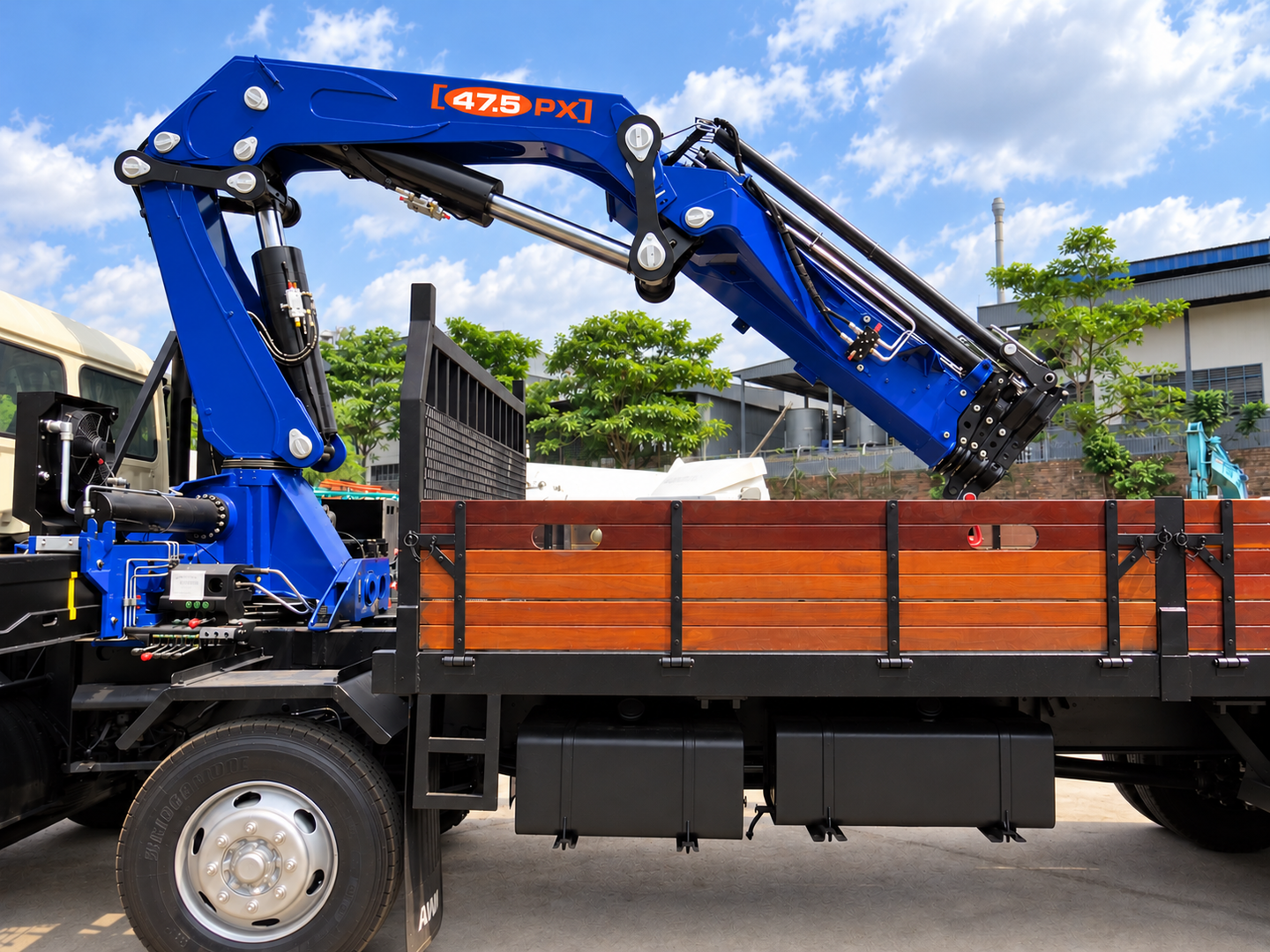

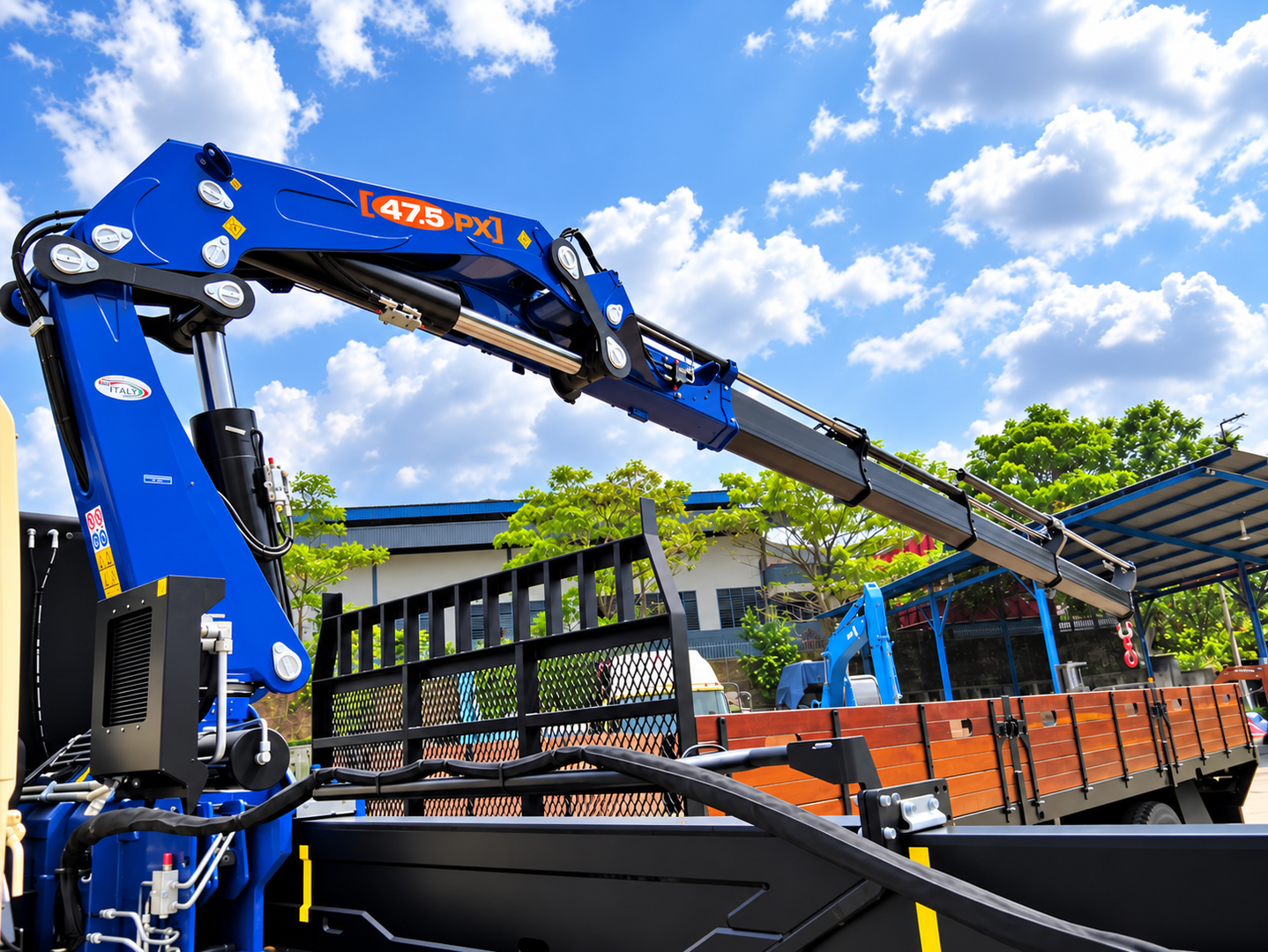

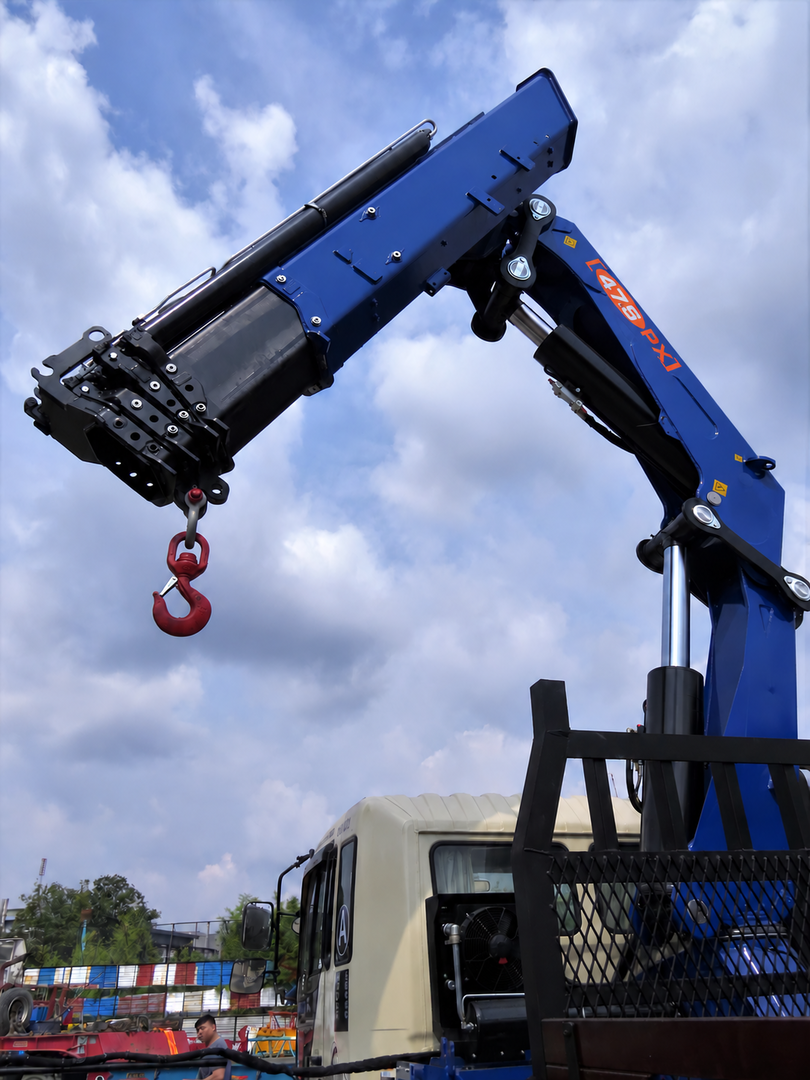

The Tadano PM 47.5 PX / PX C series delivers powerful lifting performance and versatile configurations for a wide range of applications. Designed for demanding lifting operations, these knuckle boom cranes combine high lifting capacities with flexible boom configurations to meet different operational requirements.
With lifting moments ranging from 36.1 to 41.9 tonne-metres, the series offers five boom configurations in both PX and PX C versions. The PX models provide a maximum hydraulic reach of up to 16.35 metres, while the PX C configurations offer a reach of up to 15.40 metres. This variety allows operators to select the right balance between lifting performance and working radius.
All models feature a 395° slewing angle and a hydraulic operating pressure of 33 MPa, providing consistent technical characteristics across the range. Detailed load charts help operators assess lifting capacities at different working radii.
Whether handling heavy loads at shorter distances or performing lifting tasks that require extended reach, the PM 47.5 PX / PX C series offers the flexibility to match specific job requirements, making it a capable solution for demanding lifting operations.
