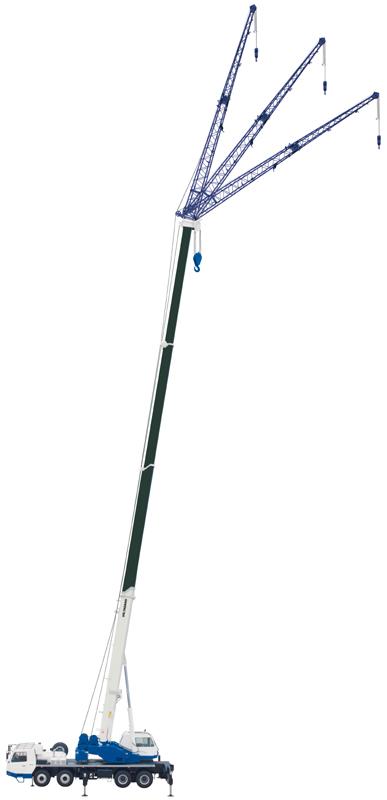

Long boom

Long boom

The 34m boom is the longest in its class.
The round hexagonal box boom is made of high tensile steel, which allows for decreased boom weight as well as increased boom strength.

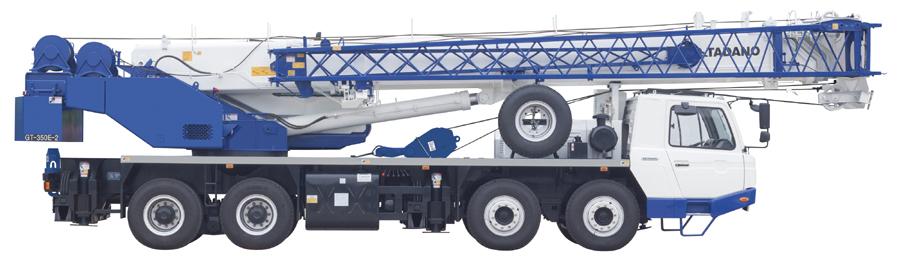

Traveling on the road with counterweight

Long boom

There is no need to dismount the counter weights of the GT-350E-2 when traveling on roads. Thus, crane operations can be started once the crane has arrived at a work site.

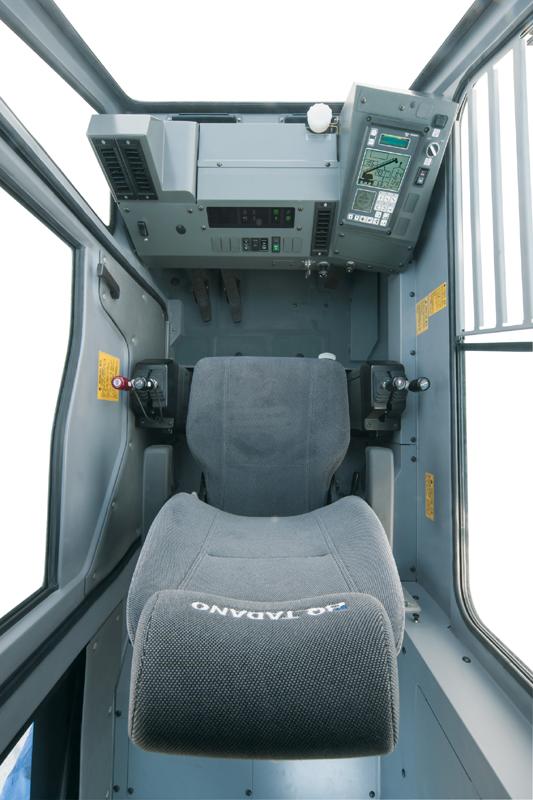

Automatic moment limiter (AML-C)

Long boom

The easy-to-view AML of BQ. Tadano's latest model monitors and display crane operating onditions(such as boom length, boom angle, load radius, slewing position, actual load, total rated load, outrigger position, jib length, jib ofset angle, and number of parts of line) to secure safety in operation. In addition, the AML is provided with a working range limit function.

Crane

Crane Capacity Boom 35t x 3.0m
Max. Lifting Height Boom 34.0m
Boom+Jib 49.2m
Max. Load Radius Boom 30.0m
Boom+Jib 35.5m
Boom Length 10.6m - 34.0m
Jib Length 8.8m / 15.2m
Extension width of outriggers Max. 6.1m
Mid. 4.0m
Min. 2.08m

Carrier

Engine Model Cummins ISLE+325
Max. Output 239kW(325PS)/1,900min-1
Max. Traveling Speed 74km/h
Drive/Steering 8x4x4
Overall Length 12,770mm
Overall Width 2,490mm
Overall Height 3,570mm
