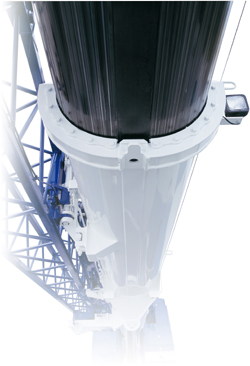

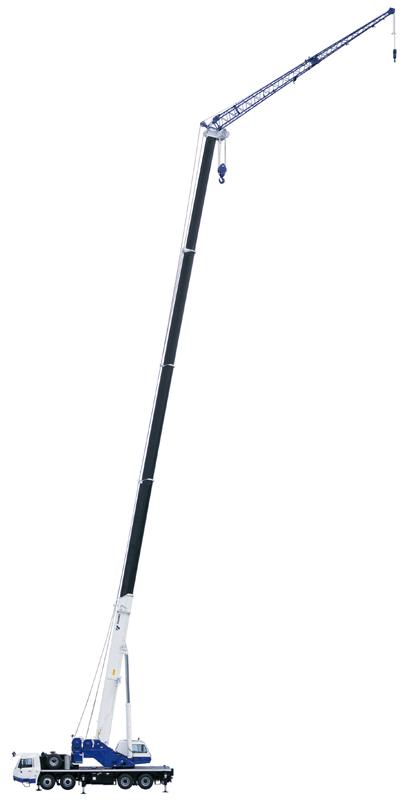

Long boom

Long boom

The 43m boom is one of the longest in its class.
The rounded boom is made of high tensile steel, which allows for decreased boom weight as well as increased boom strength.

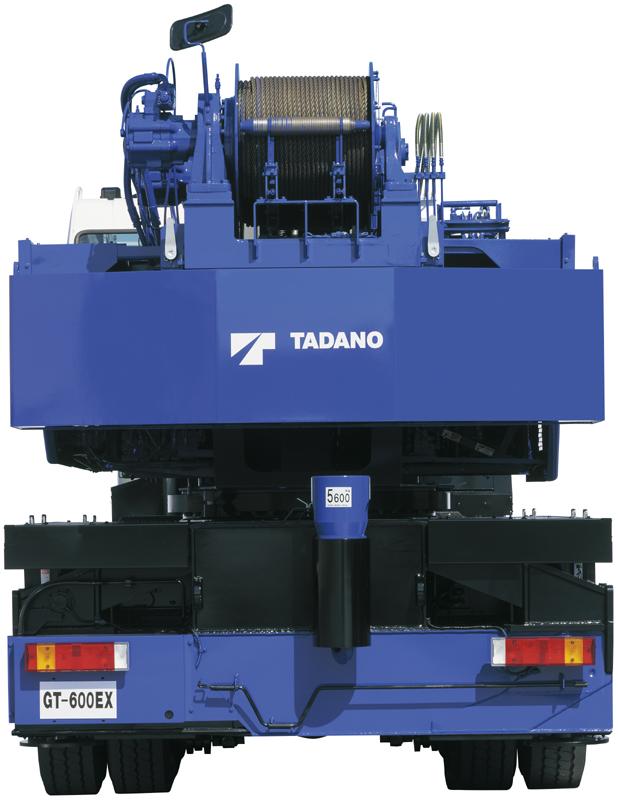

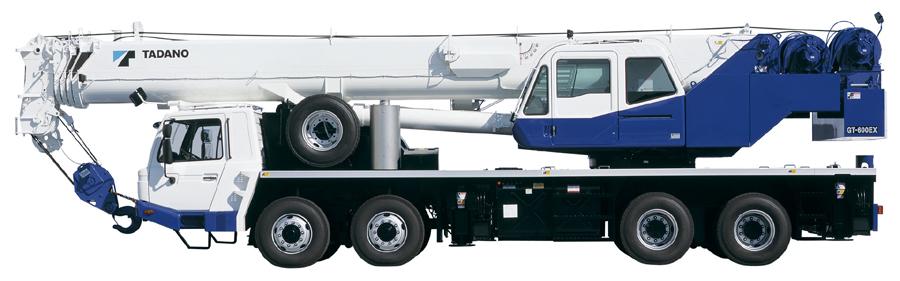

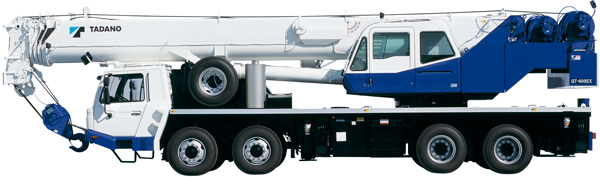

Traveling on the road with counterweight

Traveling on the road with counterweight

There is no need to dismount the counter weights of the GT-600EX when traveling on roads. Thus, crane operations can be started once the crane has arrived at a work site.

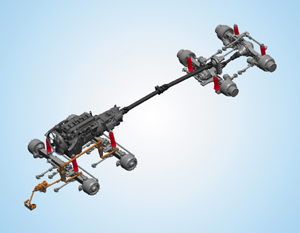

Hydraulic suspension

Hydraulic suspension

All axles are equipped with a Hydraulic suspension system which helps absorb the shocks and vibrations which take place due to a change in road conditions (on a bad road) to realize comfortable roadability

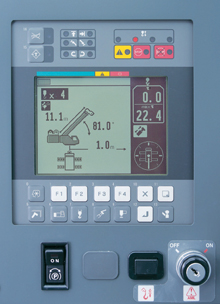

Automatic moment limiter (AML-C)

Automatic moment limiter

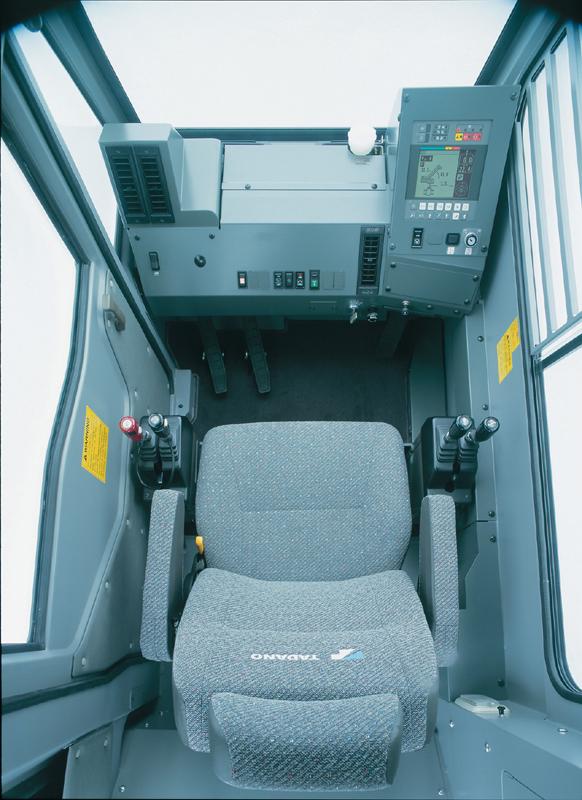

Tadano’s new AML-C is easy to use. It allows the operator to simultaneously monitor: boom angle, boom length, operating pressure of elevating cylinder, the extended width of the outriggers, slewing position, rated lifting capacity and present hook weight.
All of this enables the AML-C to move easily through lifting capacity changes without changing configurations and codes to make a lift.

Crane

Crane Capacity Boom 60t x 3.0m
Max. Lifting Height Boom 43.1m
Boom+Jib 58.1m
Max. Load Radius Boom 35.7m
Boom+Jib 42.4m
Boom Length 11.0m - 43.0m
Jib Length 8.8m / 15.2m
Extension width of outriggers Max. 6.8m
Mid. 4.6m
Min. 2.39m

Carrier

Engine Model Daimler OM457LA
Max. Output 260kW(353PS)/1,900min-1
Max. Traveling Speed 84km/h
Drive/Steering 8x4x4
Overall Length 13,170mm
Overall Width 2,820mm
Overall Height 3,730mm
