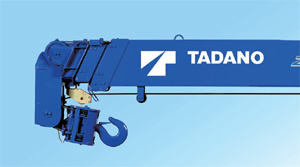

The TM-ZT1000H features the "Hook-In" system to further enhance work effciency.
A pull of a lever and the crane hook is stowed automatically. No more manual belaying.

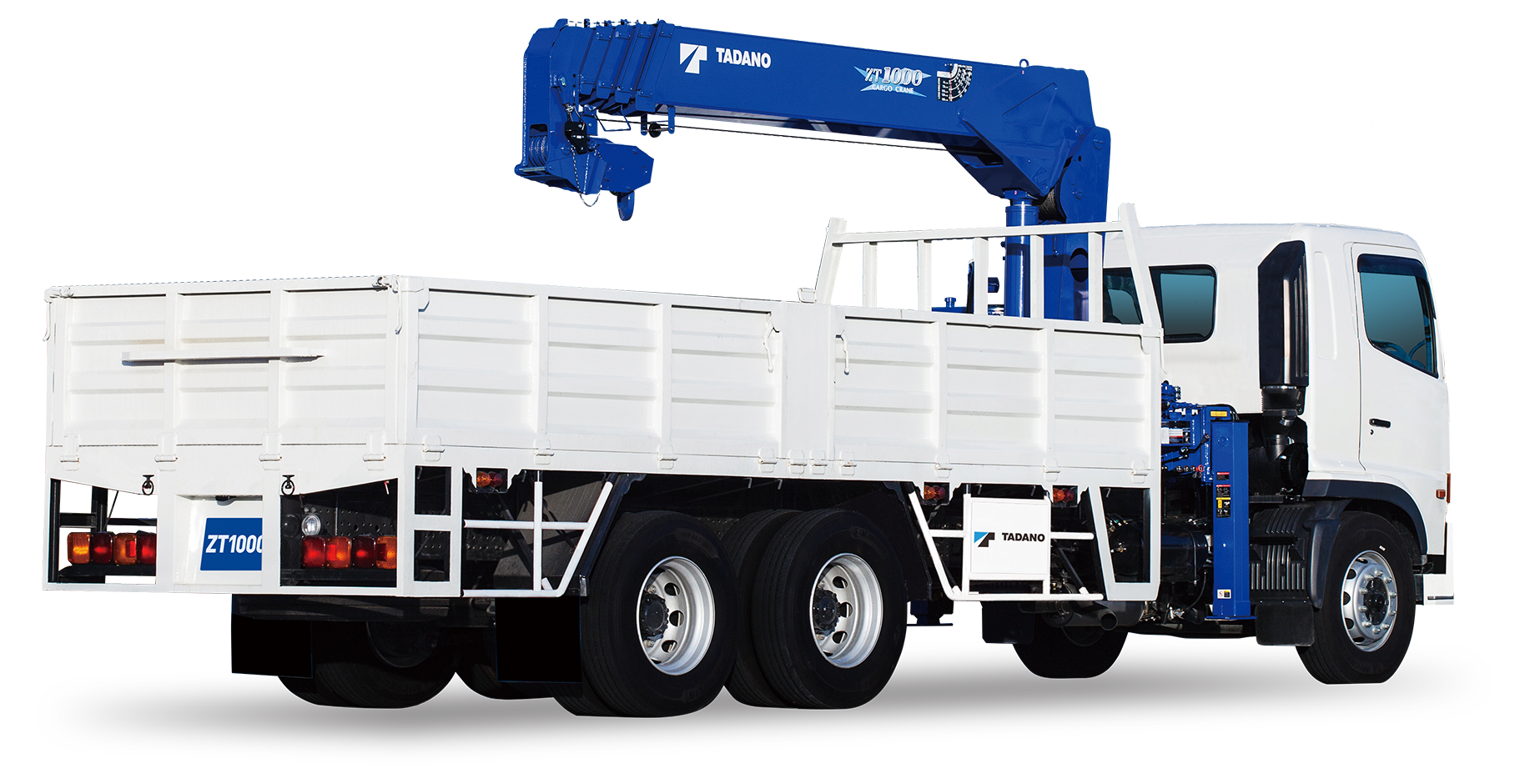

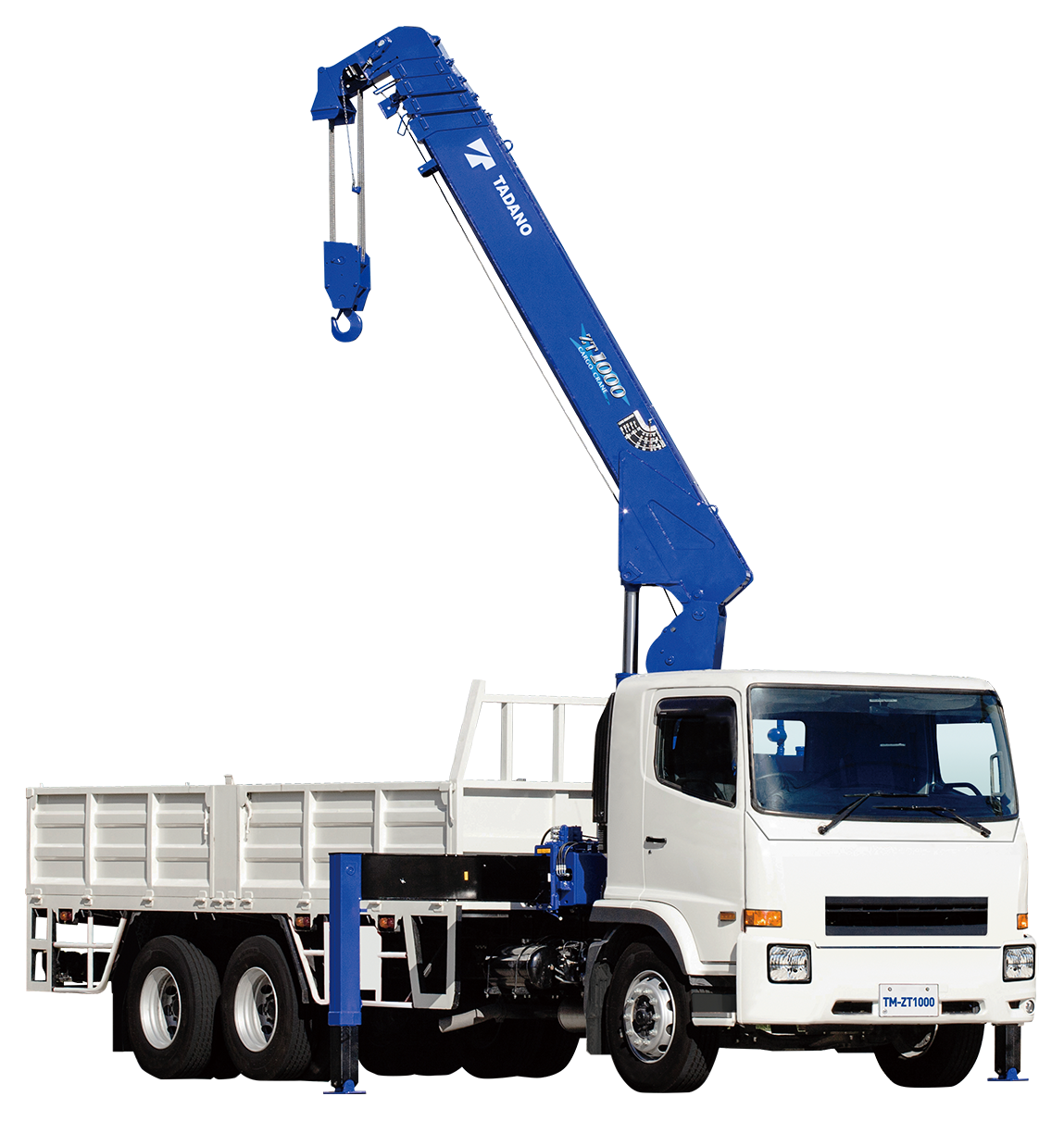

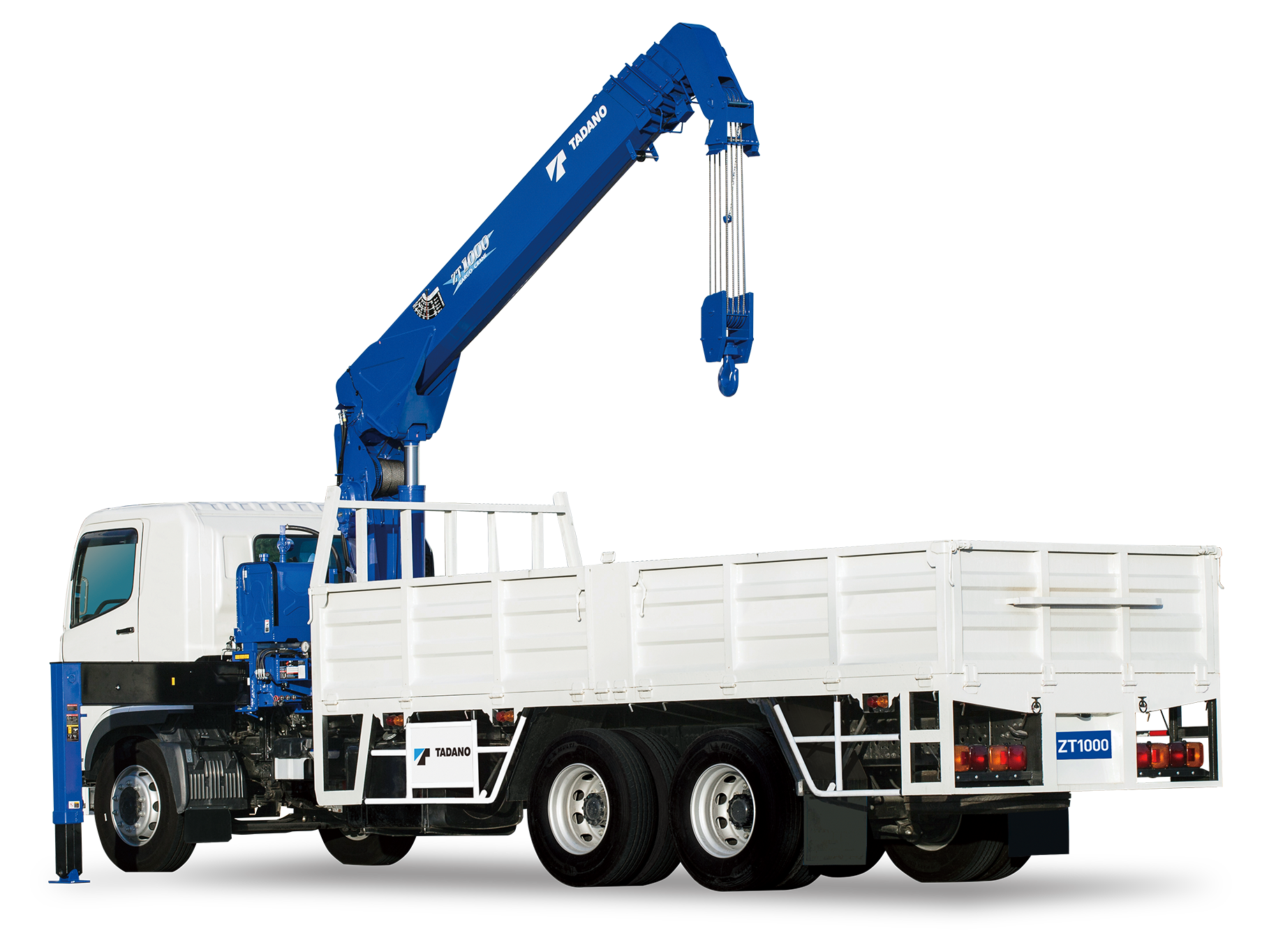

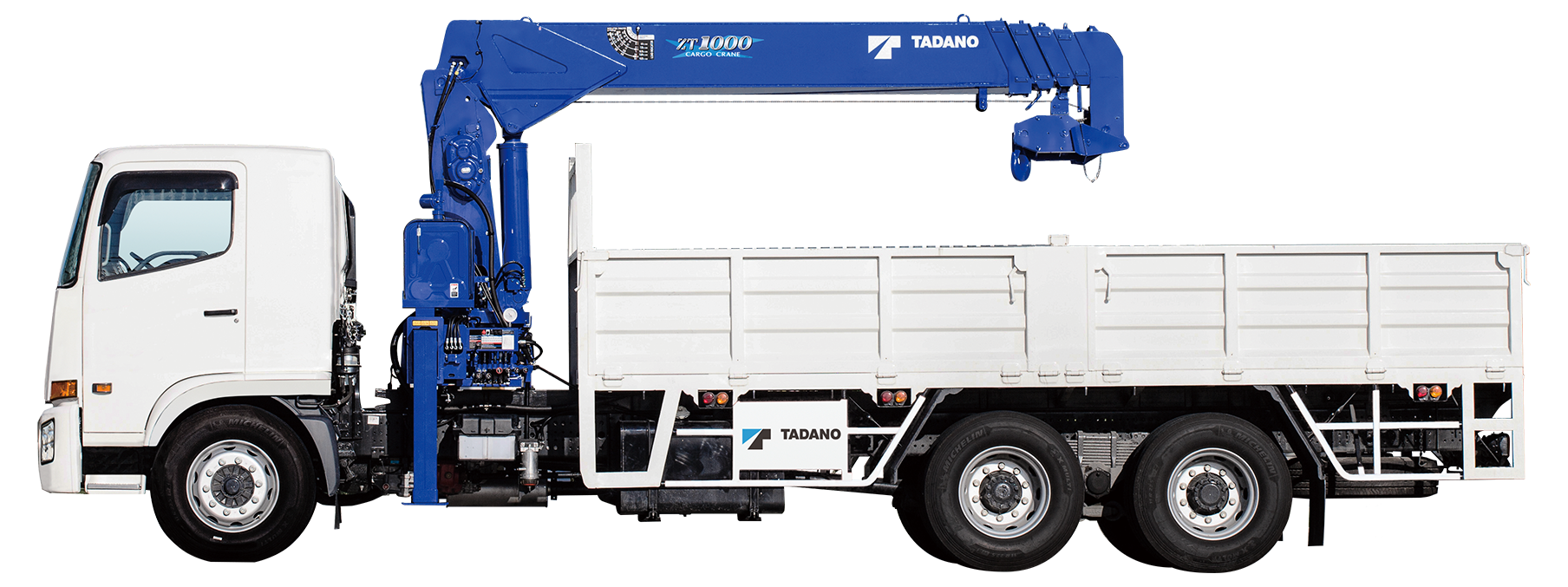

Truck Loader Cranes
TM-ZT1000 series
Truck Loader Cranes
TM-ZT1000 series
Brochure
Brochure
Spec Sheet
Hook in

Three-point support system

Tadano's Equalizer Crane Support protects the truck frame from stress. The crane is mounted to the truck chassis with the Equalizer Crane Support that evenly distributes the load to prevent excessive stress concentration at any one point.

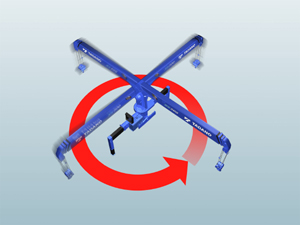

Full circle, continuous slewing

The newly designed compact slewing post improves performance providing FULL CIRCLE, continuous rotation for more efficient operations.
AUTOMATIC SLEWING LOCK: The boom is mechanically locked at the slewing post base which prevents boom rotation during traveling.
Crane
TM-ZT1005H | TM-ZT1004H | ||
---|---|---|---|
Crane Capacity | 10,000kg x 1.4m | 10,000kg x 1.4m | |
Section | 5 | 4 | |

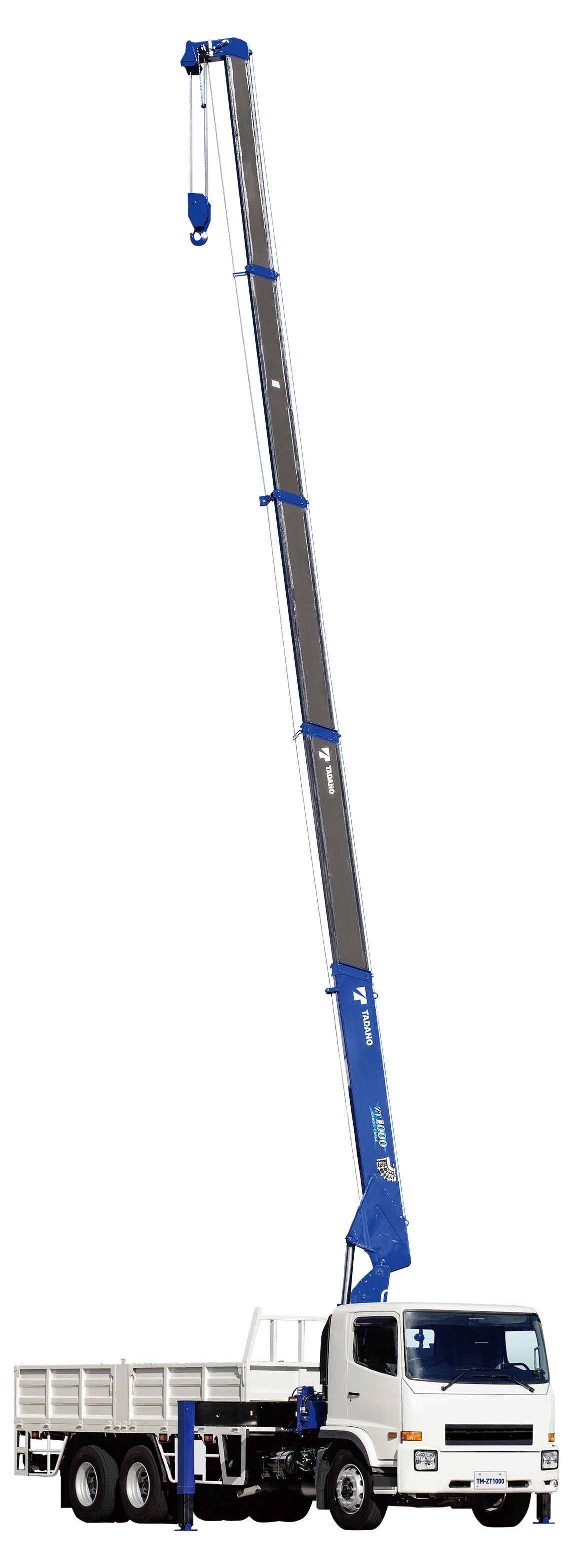

Max. Lifting Height | 17.8m | 14.8m | |
Max. Working Radius | 15.7m | 12.7m | |
Boom Length | 4.40m - 15.92m | 4.31m - 12.91m | |
Slewing | Continuous 360° | Continuous 360° | |

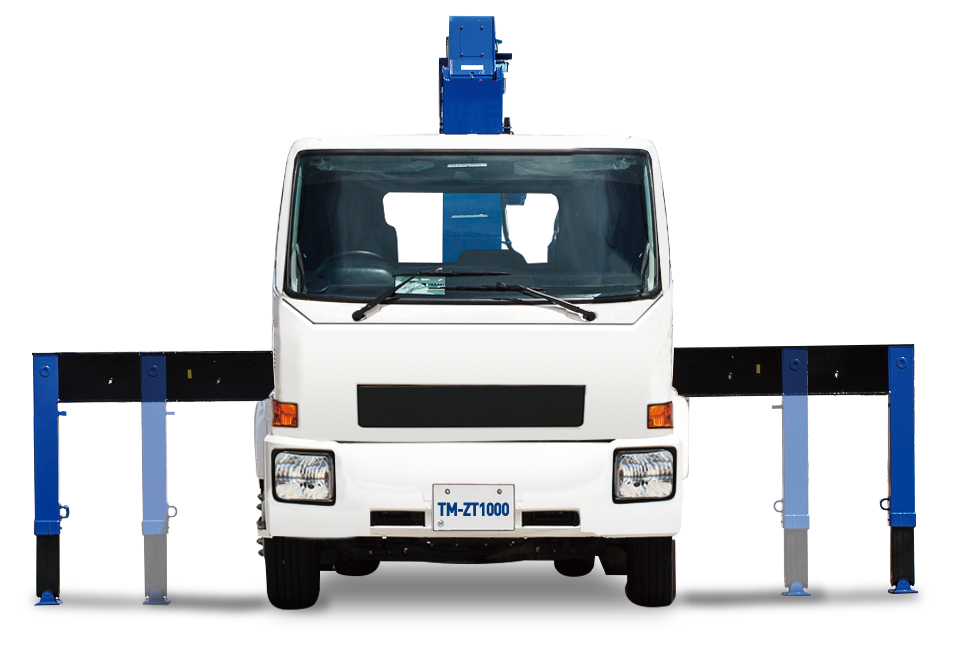

Extension width of outriggers | Max. | 5.2m | 5.2m |
Mid. | 3.9m | 3.9m | |
Min. | 2.3m | 2.3m |
