The ultimate boom

The ultimate boom

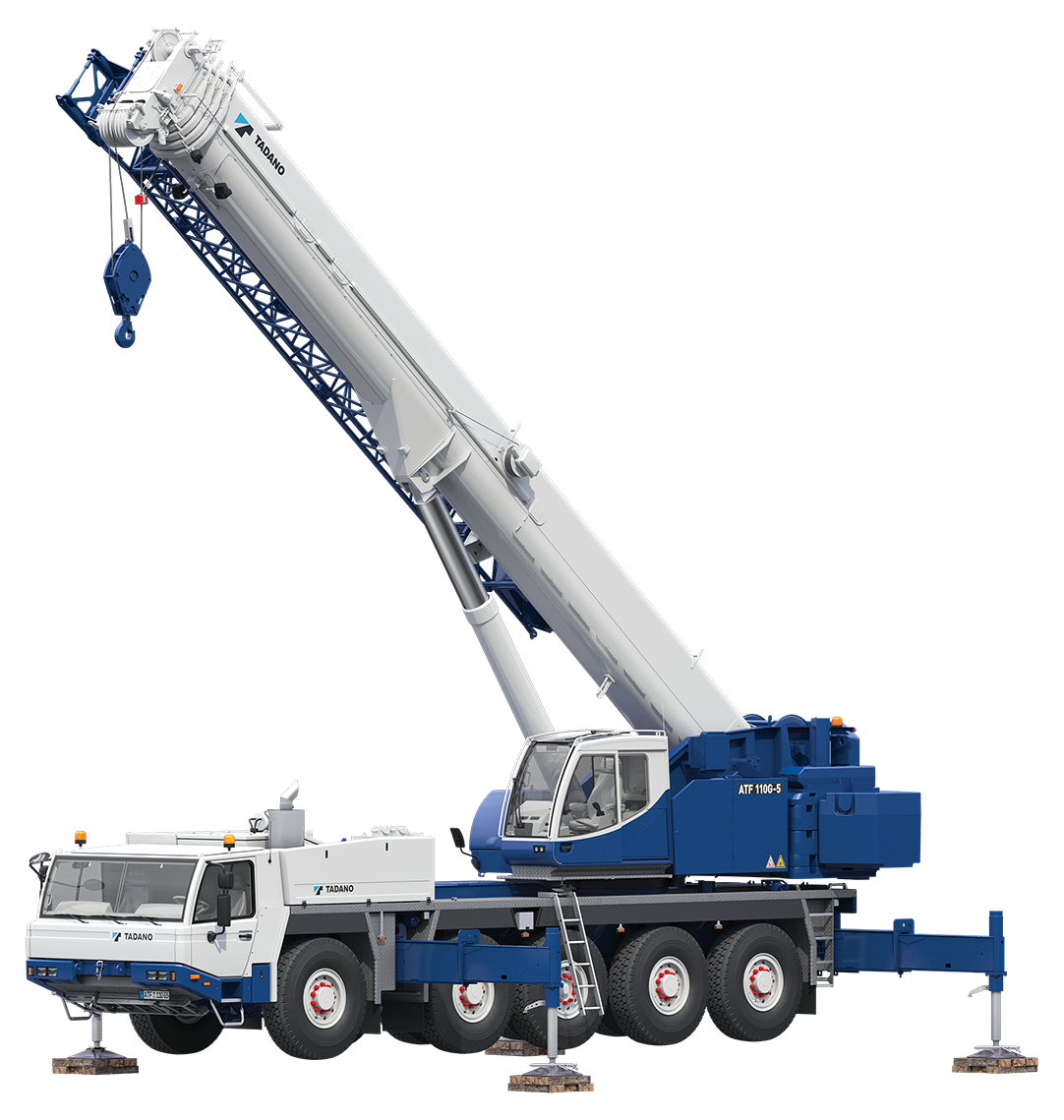

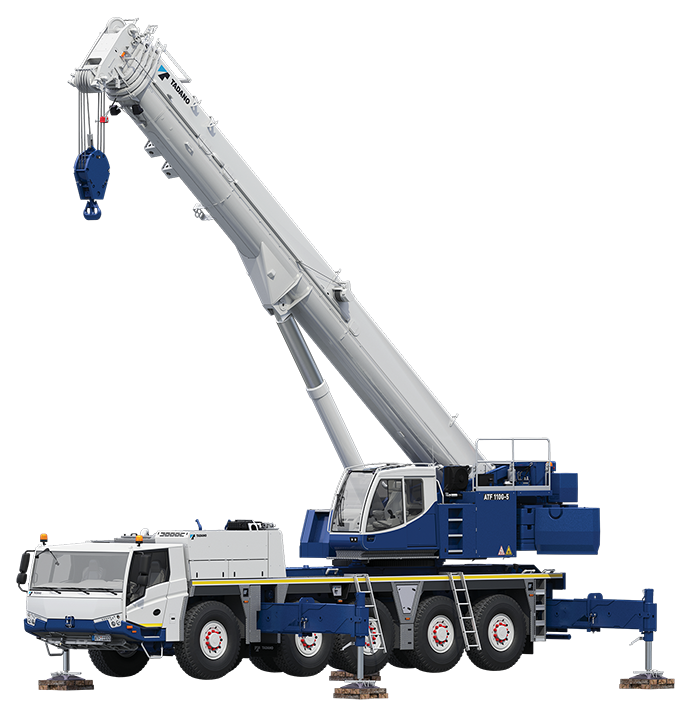

The 5-section 52m rounded boom is made of high tensile steel, which allows for decreased boom weight and increased boom strength.

Operator comfort

Operator comfort
Operator comfort

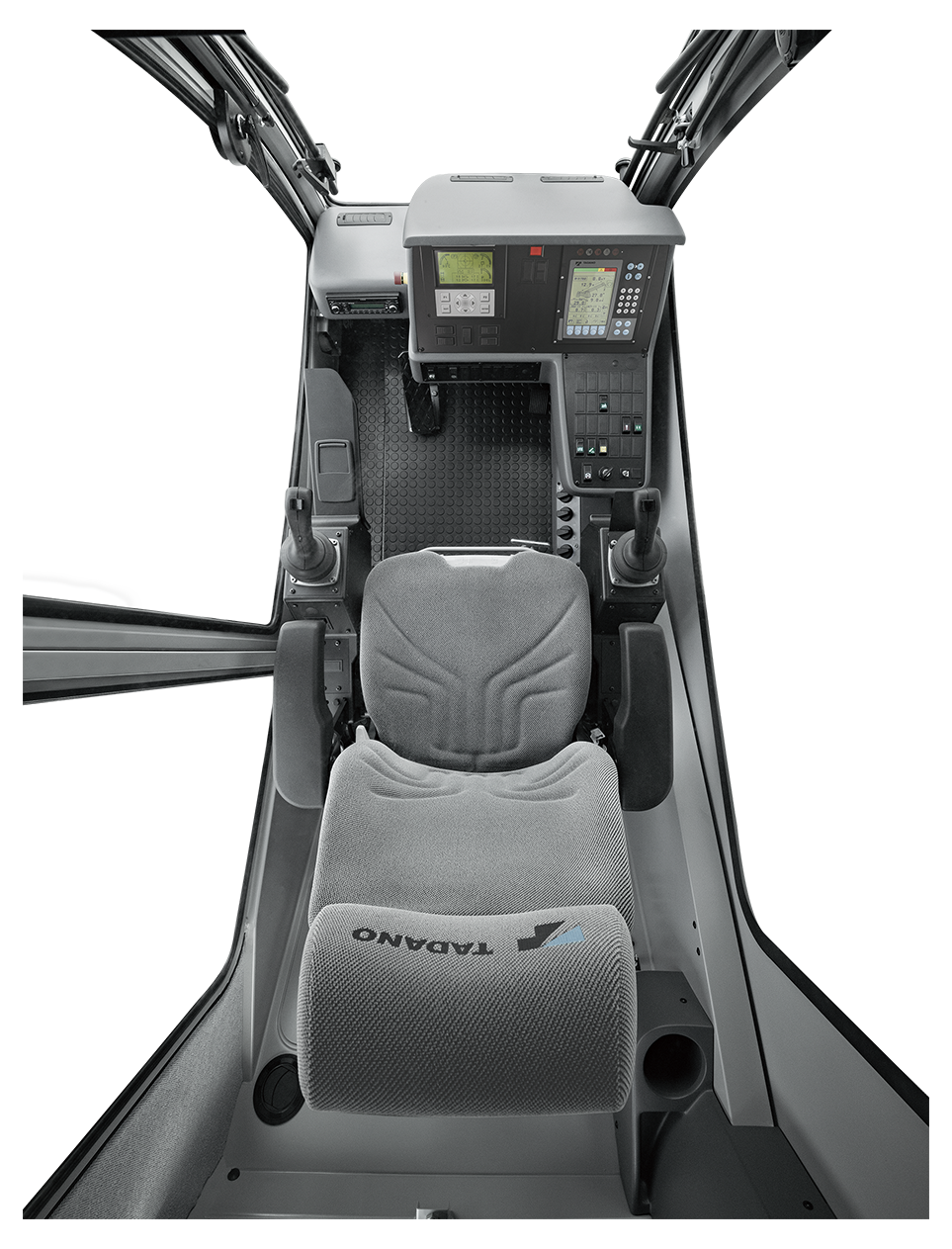

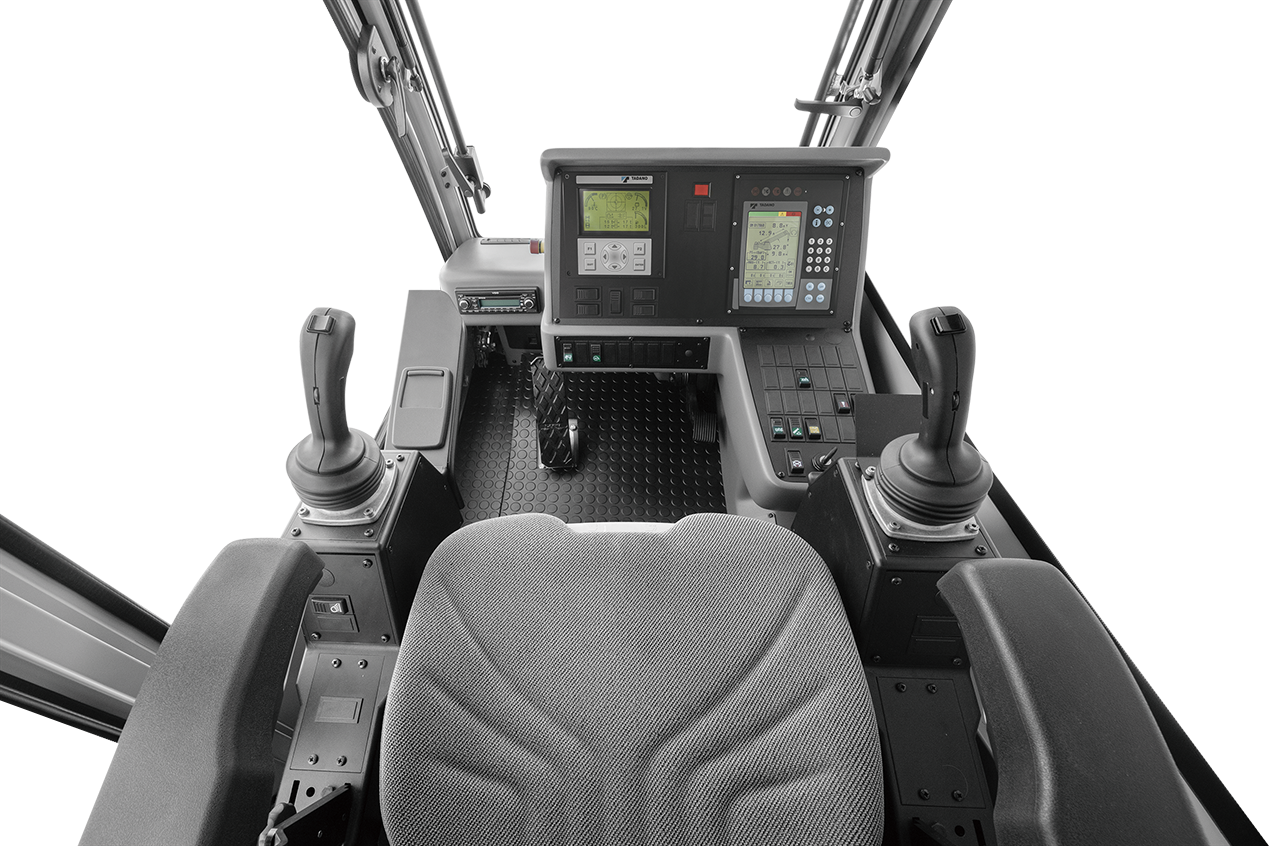

The crane cab provides improved livability and offers the operator a more comfortable working environment.

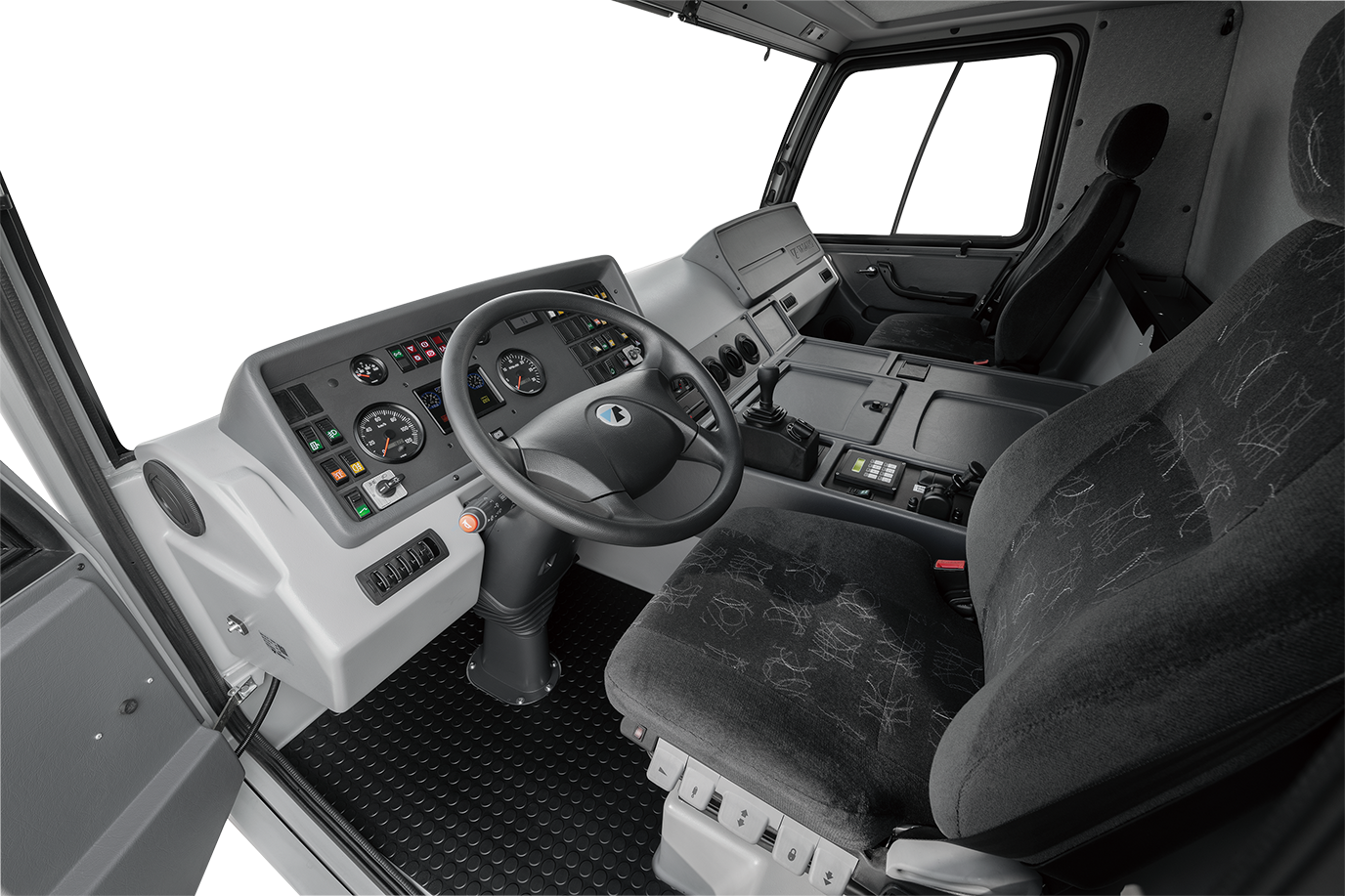

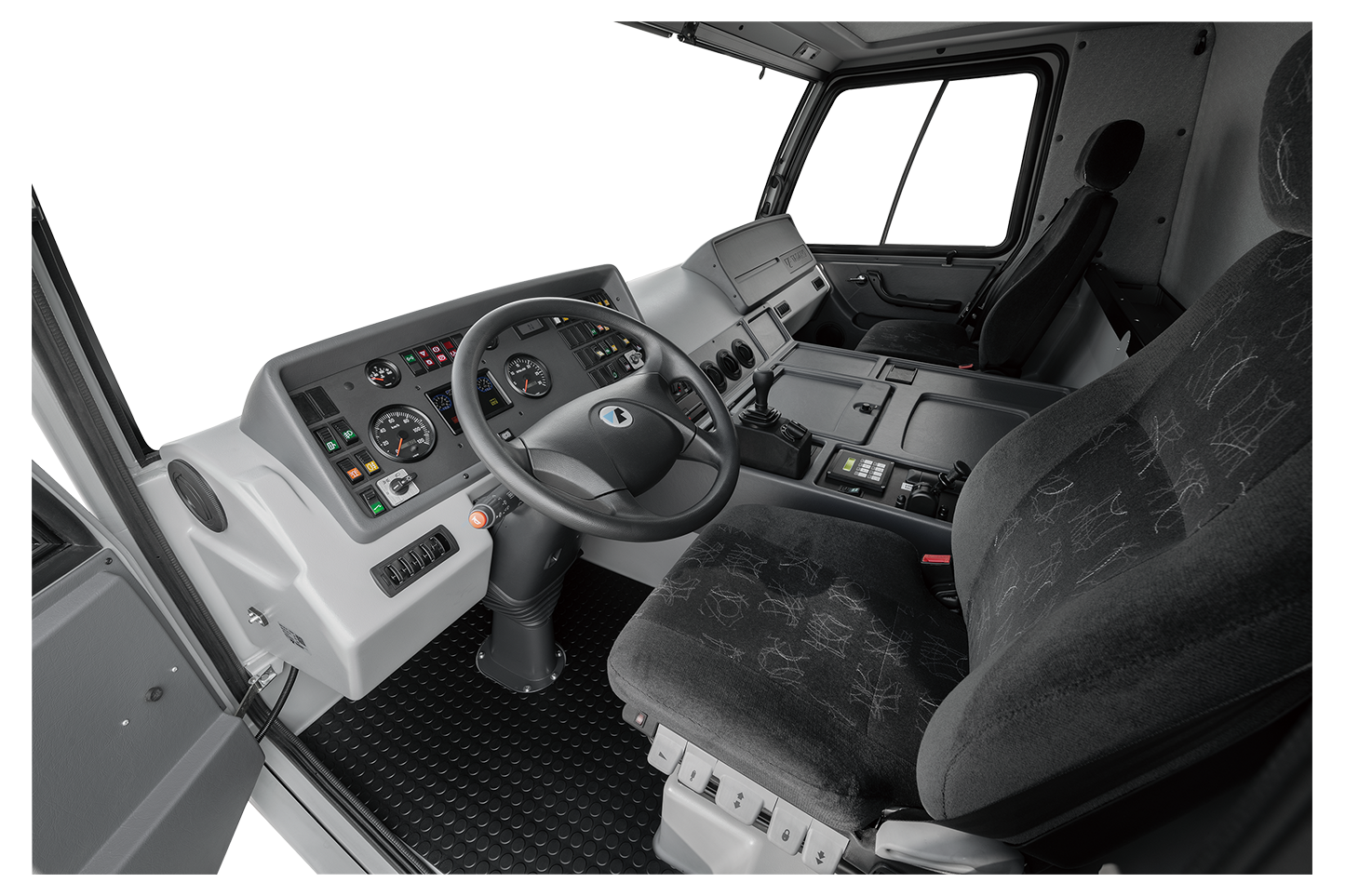

The full-sized carrier cabin accommodates two passengers, allows comfortable traveling for the operator.

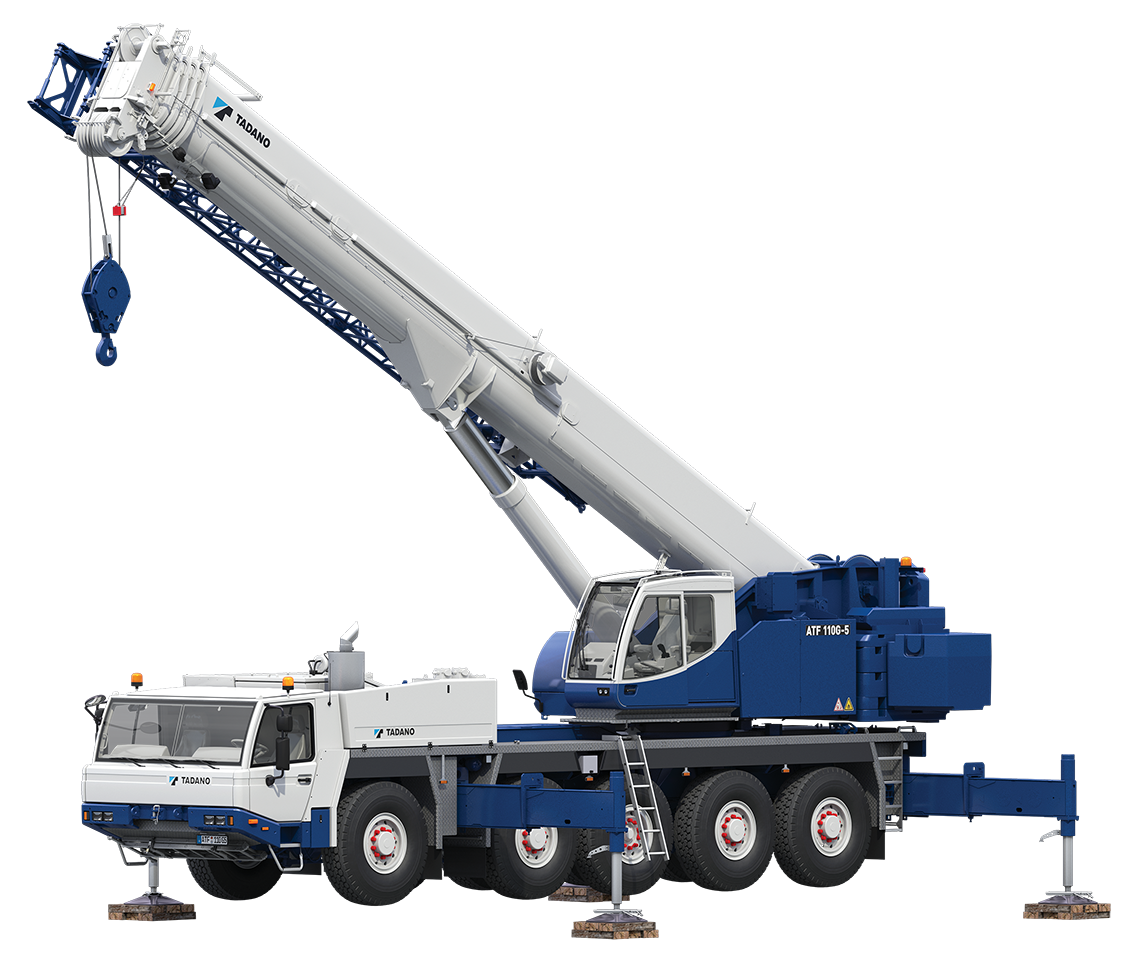

The ATF 110G-5 has undergone detailed updating in line with the transition to EU Stage IV/ EPA Tier 4f. The new driver's cab offers enhanced all-round visibility, ergonomic quality seats which provide especially high long-term seating comfort and a new multifunction touchscreen which can be actuated additionally via buttons or a rotary pushbutton, as the driver sees fit. The same touchscreen is additionally located in the superstructure cab - even in duplicate. The main display visualizes the image taken by two cameras and can be inclined electronically very easily in order to adapt it to the prevailing light conditions. The supplementary display features an additional camera view and can even be removed from its location in order to make operation even more convenient. But that is not all: For many pieces of information, the crane operator is able to determine on his/her own which display the information is to be visualized on. Thus, new additional information about the various crane operating states may be called off as required, such as average fuel consumption, oil temperature or hydraulic oil level. Thus, the crane operator has full control over his/her crane at any time, at a glance. Moreover, the new ATF 110G-5 has the asymmetric outrigger base control feature made by Tadano, which helps the crane reach even higher lifting capacities with the outriggers extended to different lengths. Additional standard features are air conditioning units in the superstructure and carrier cab and central lubrication systems in the superstructure and the carrier.

Crane

Max. Lifting Capacity Boom 110t x 3.0m
Max. Lifting Height Boom 53.0m
Boom+Jib 84.0m
Max. Load Radius Boom 48.0m
Boom+Jib 64.0m
Boom Length 13.0m - 52.0m

Carrier

Engine Model Mercedes Benz (EU Stage III A)
Max. Output Carrier 390 kW (530 HP)
Superstructure 129 kW (175 HP)
Max Traveling Speed 85km/h
Drive/Steering 10 x 6 x 10
Overall Length 14,908mm
Overall Width 2,750mm
Overall Height 3,995mm

Crane

Max. Lifting Capacity Boom 110t x 3.0m
Max. Lifting Height Boom 53.0m
Boom+Jib 85.5m
Max. Load Radius Boom 48.0m
Boom+Jib 64.0m
Boom Length 13.0m - 52.0m

Carrier

Engine Model Mercedes Benz (EU Stage IV / EPA Tier 4f)
Max. Output Carrier 390 kW (530 HP)
Superstructure 129 kW (175 HP)
Max Traveling Speed 85km/h
Drive/Steering 10 x 6 x 10
Overall Length 14,933mm
Overall Width 2,750mm
Overall Height 3,993mm
